Brand:   UV Pure  |  SKU: G15-500 PN

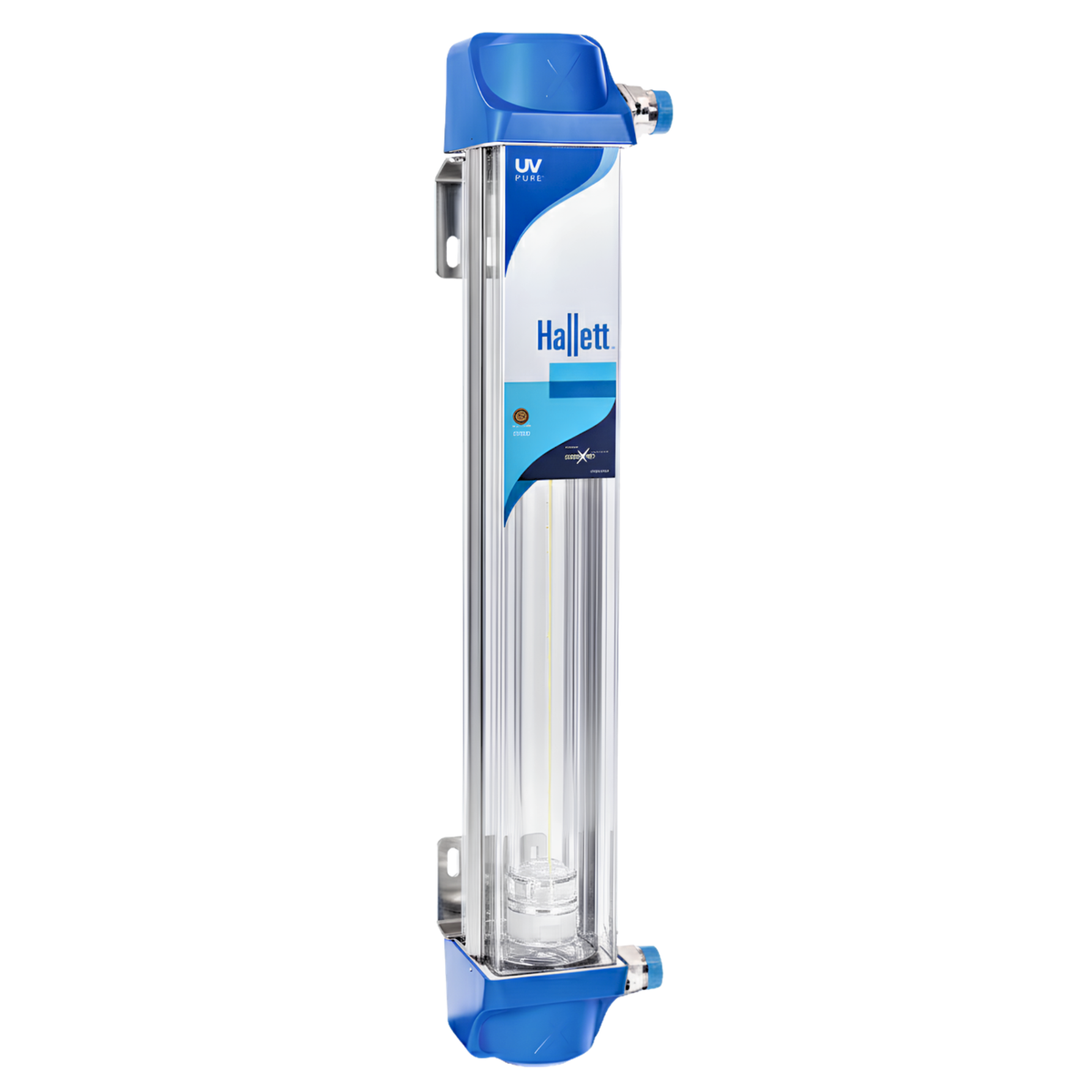

UV Pure Hallett Ultraviolet Potable Water Disinfection System

(FOR STOCK AVAILABILITY & LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The UV Pure Hallett Ultraviolet Potable Water Disinfection System is a high-performance UV water disinfection system designed to handle even the most challenging water conditions—without the need for extensive pre-treatment. Powered by Crossfire Technology, this system features dual-lamp UV chambers with built-in automatic wipers and purging capabilities to prevent scaling, fouling, and performance degradation. With EPA UVDGM validation, it’s the trusted solution for small municipalities, mobile home parks, healthcare facilities, agriculture, and more.

Model

$4,177.30
Have a Question?

Delivery and Shipping

Freight Shipping Required
Shipping charges are not included in the listed price and will be quoted based on delivery location.

Features

  • No Pre-Treatment Required

    Built-in self-cleaning quartz sleeves and purge system reduce fouling from minerals and biofilm, eliminating the need for costly pre-filtration.

  • Crossfire Technology Advantage

    Dual-lamp vertical orientation ensures 100% UV exposure, automatic lamp redundancy, and continuous performance—even in tough water quality conditions.

  • Flexible & Adjustable Flow

    Adjustable flow settings from 10 to 100 GPM, making it ideal for a wide range of commercial and public water applications.

Specifications

G15 | 500PN
G20 | 750PN
G24 | 1000P
Flow (single unit)
Flow (single unit)
Up to 16.5 US gpm (62.5 Lpm)
Up to 27.4 US gpm (104 Lpm)
Up to 100 US gpm (378 Lpm)
UV Dose
UV Dose
Min. 40 mJ/cm2
Min. 40 mJ/cm2
16 - 200 mJ/cm2
UV Transmittance (water)
UV Transmittance (water)
Minimum 75% UVT
Minimum 75% UVT
50 - 95% UVT
Voltage
Voltage
120 VAC/60 Hz; or 230 VAC/50 Hz
120 VAC/60 Hz; or 230 VAC/50 Hz
120/230 V AC, 50/60 Hz

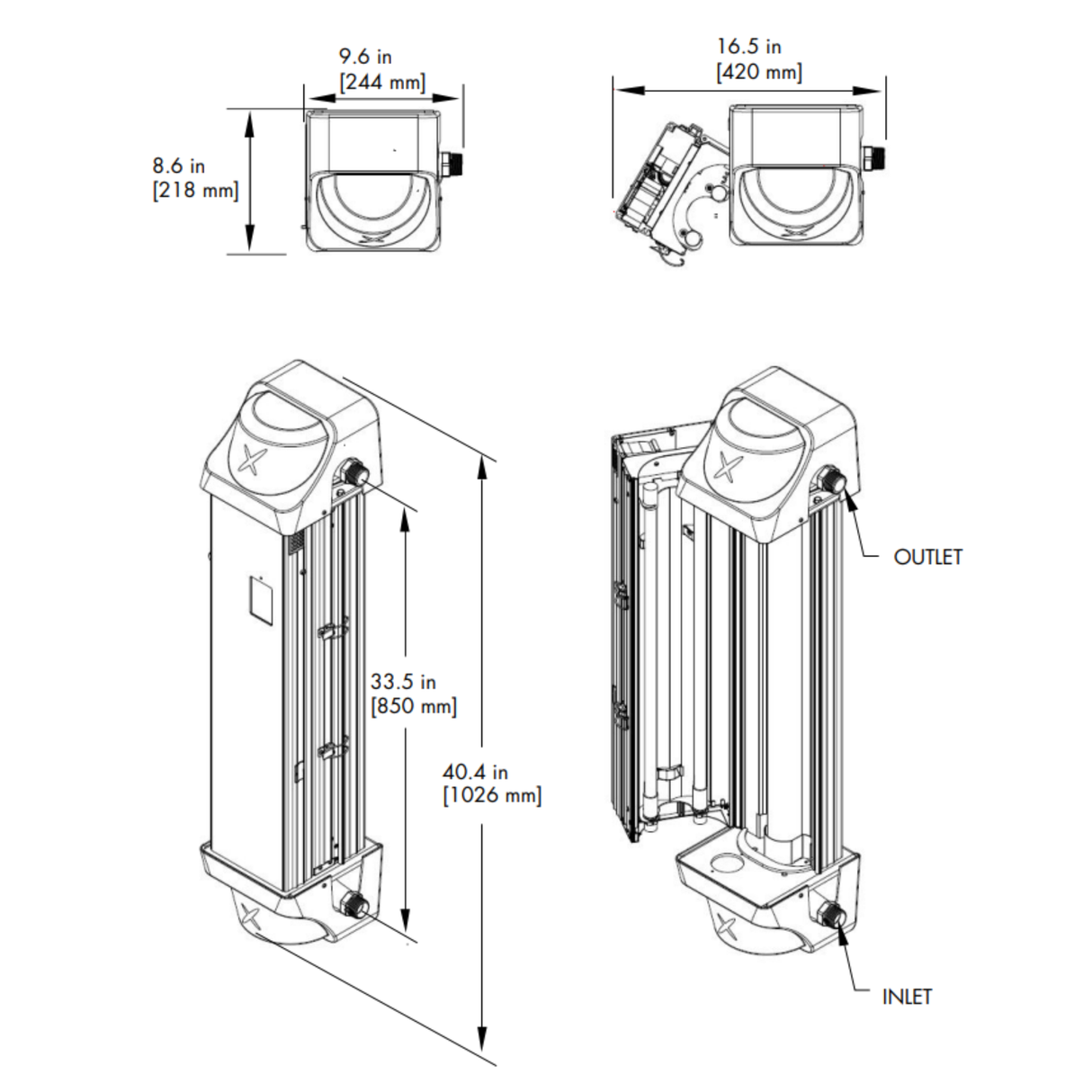

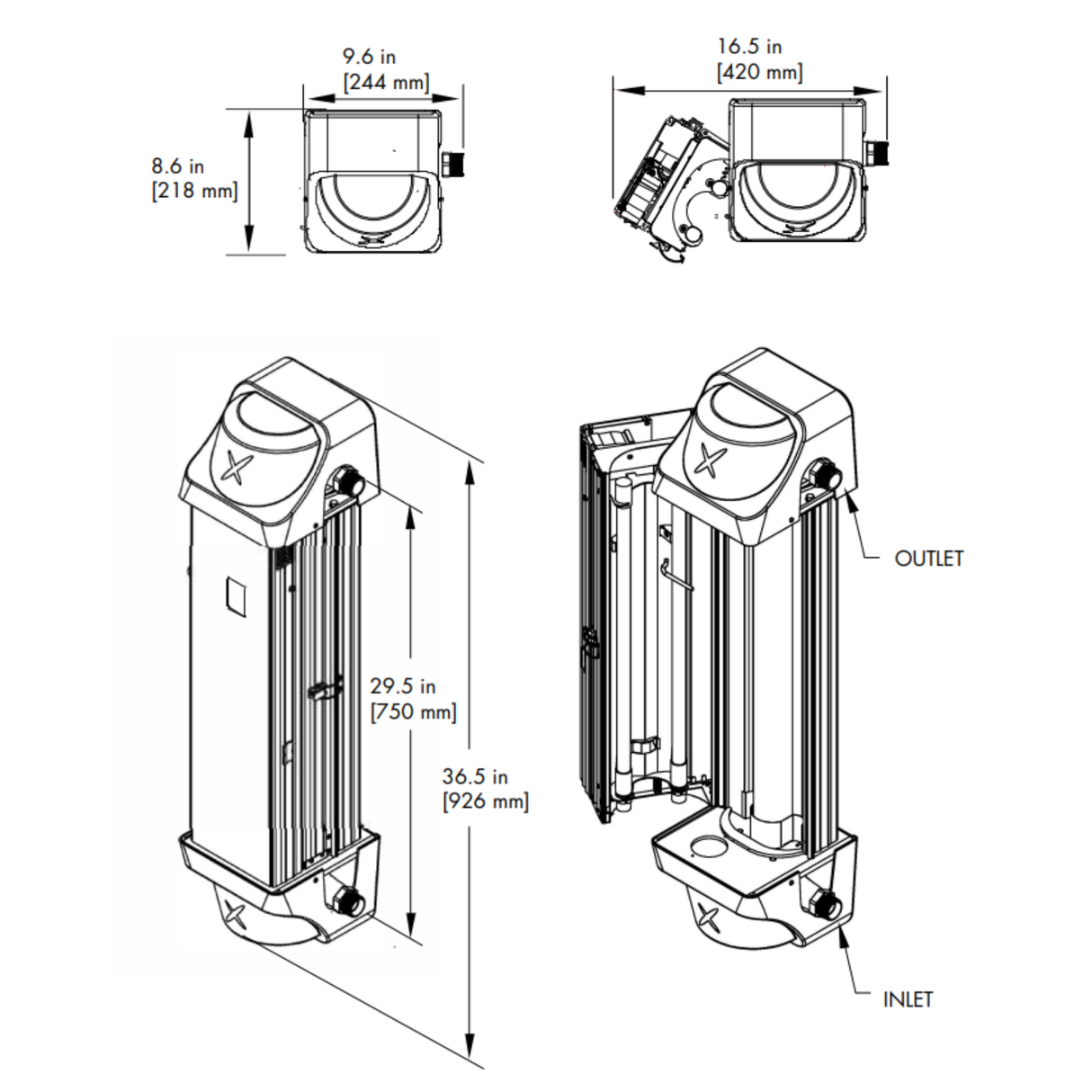

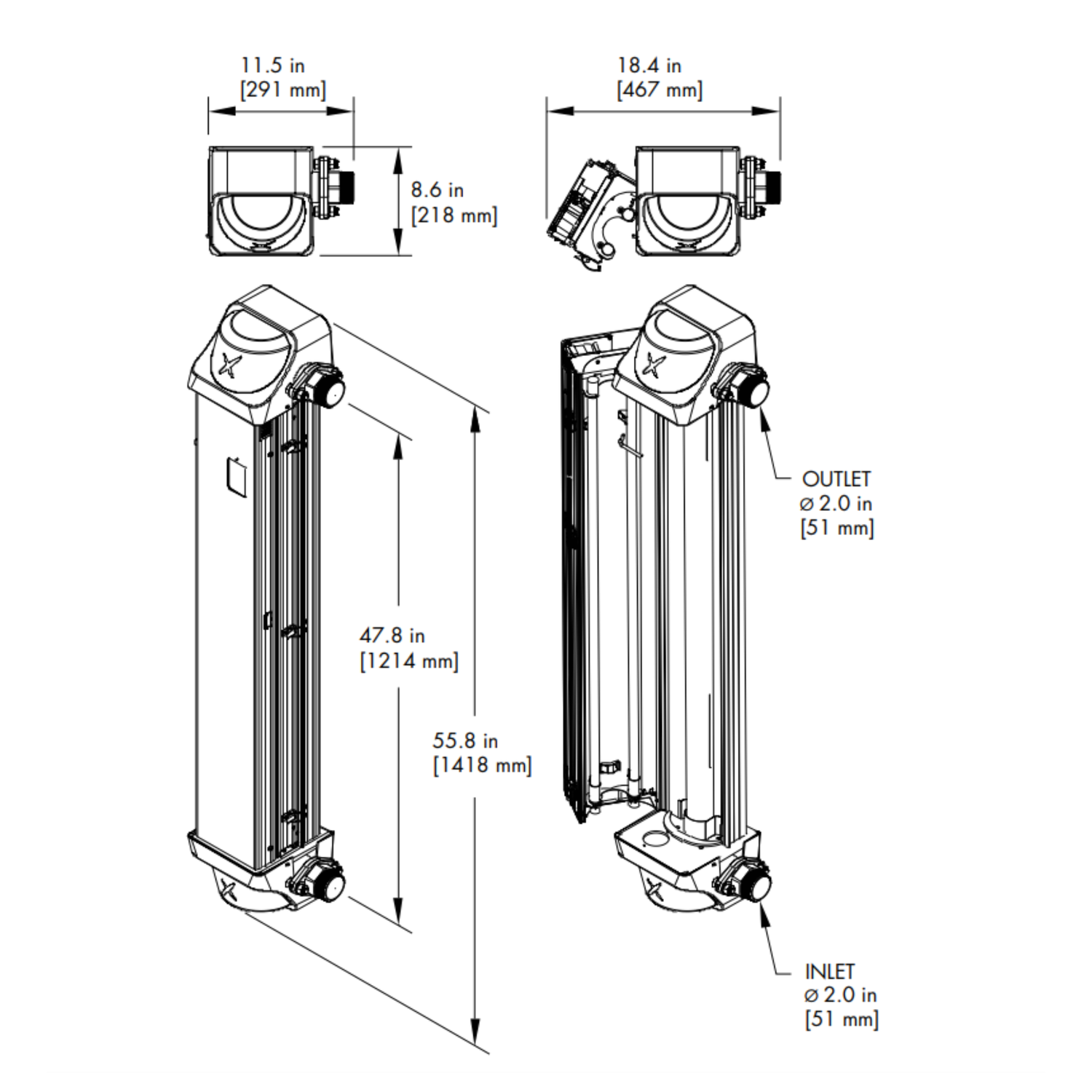

Dimensions
Dimensions
36.5" x 9.6" x 8.6"
40.4" x 9.6" x 8.6"
55.8" x 11.5" x 8.6"
Weight
Weight
Dry: 32 lb, Wet: 36 lb
Dry: 34 lb, Wet: 38 lb
Dry: 52 lb, Wet: 58.3 lb

Support Materials

UV Pure 500PN Hallett Ultraviolet Potable Water Disinfection System Technical Data Sheet

UV Pure 750PN Hallett Ultraviolet Potable Water Disinfection System Technical Data Sheet

UV Pure 1000P Hallett Ultraviolet Potable Water Disinfection System Technical Data Sheet

UV Pure Hallett Ultraviolet Potable Water Disinfection System Brochure

UV Pure Hallett Ultraviolet Potable Water Disinfection System Instruction Manual
