Brand:   Sensorex  |  SKU: TCSMA

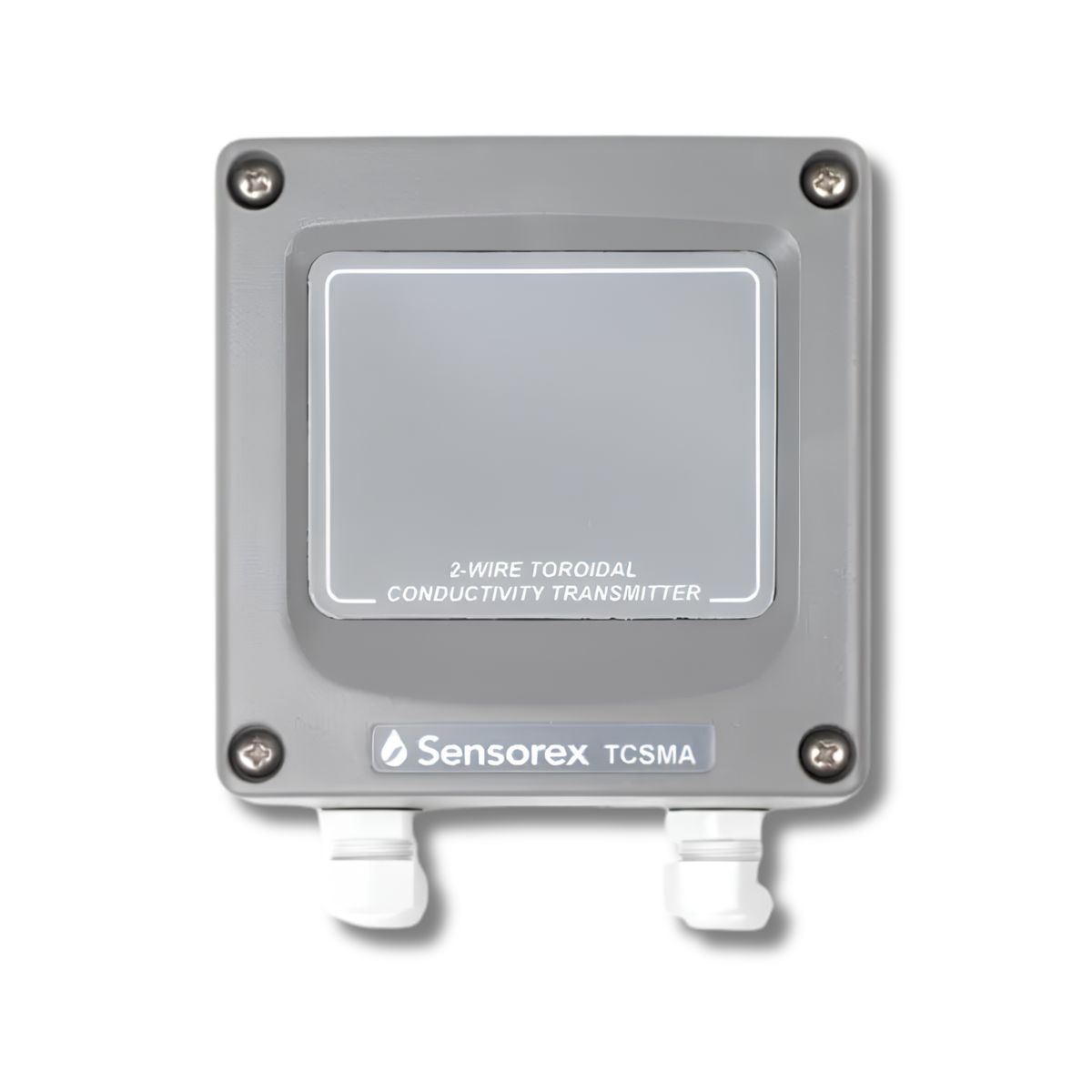

Sensorex TCSMA Toroidal Conductivity Transmitter

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Sensorex TCSMA Toroidal Conductivity Transmitter provides online conductivity monitoring for water treatment and aggressive chemical process applications using inductive measurement technology. This loop-powered transmitter operates on 16–35 VDC and delivers an isolated 4–20 mA output with user-programmable temperature compensation for integration into process monitoring and control systems. Compatible with Sensorex TCS3020 toroidal conductivity sensors and TCSP Series PEEK toroidal sensors, the TCSMA features a NEMA 4X (IP65) enclosure and supports wall, pipe, panel, or rail mounting.

Parameters & Applications
Conductivity
Controllers & Transmitters

Toroidal Conductivity
$1,300.00

✓ This product qualifies for Free Shipping

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

Measuring Range
Measuring Range
0-100,000 uS, - preset at factory as 4-20mA
Measuring range
Measuring range
0-100,000 uS, - preset at factory as 4-20mA
Span Range
Span Range
500-2,500uS / 2,500-1,500uS / 15,000 - 100,000uS / 10,000 - 1,000,000uS
Sensitivity
Sensitivity
0.1% of span
Repeatability
Repeatability
0.2% of span
Non-Linearity
Non-Linearity
1% span for span > 3,000uS/com ---2% of span for span <3,000uS/cm
Zero Drift
Zero Drift
<1% span per month, non-cumulative
Operating Conditions
Operating Conditions
-20 to 60deg C, 0-95% R.H. non-condensing conditions
Temperature Drift
Temperature Drift
0.06% of range/degC, span or zero
Stability
Stability
0.2% of range per 24 hours, non-cumulative
Insertion Loss
Insertion Loss
16 V DC
Output Isolation
Output Isolation
Inherently isolated by sensor design
Enclosure
Enclosure
NEMA 4X (IP66) polycarbonate, wall, pipe or DIN Rail mount. Weatherproof and corrosion resistant
Conduit Openings
Conduit Openings
2 each PG-9. Cord grips included
Temperature Input
Temperature Input
Pt1000RTD. Compensation adjustable from 0.0%/deg C to 4.0%/deg C
Response Time
Response Time
5 seconds to 90% full scale
Maximum Cable Length
Maximum Cable Length
200ft. (61.0m)
Power Requirements
Power Requirements
16-35V DC (2-wire device)
Dimensions
Dimensions
4.4" x 4.4" x 3.5"
Weight
Weight
1 lb (0.45 Kg)

Support Materials

Sensorex TCSMA Toroidal Conductivity Transmitter Data Sheet

Sensorex TCSMA Toroidal Conductivity Transmitter Manual
