Brand:   Sensorex  |  SKU: iTCS3020-MB/500

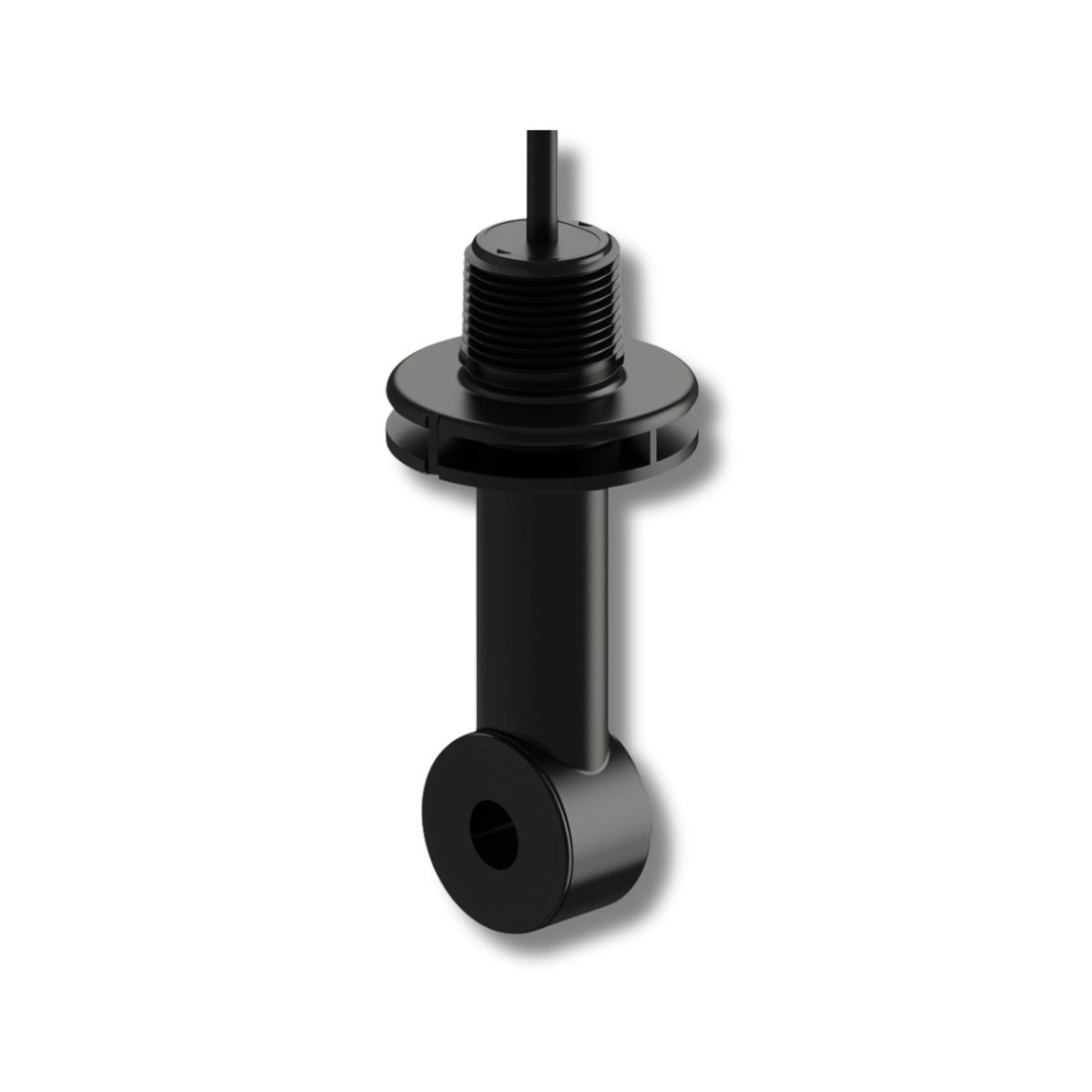

Sensorex iTCS3020 Series Smart General Purpose Noryl Toroidal Conductivity Sensor

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Sensorex iTCS3020 Series Smart General Purpose Noryl Toroidal Conductivity Sensor provides conductivity measurement with Modbus output for process monitoring. Its toroidal sensing design resists corrosion, coating, and fouling, while the Noryl body offers broad solvent tolerance and temperature stability up to 80°C. Configuration and calibration are performed using free web-based software. The sensor features a 3/4-inch NPT connection for submersion installations and a mounting flange for use with the separately sold FC95C Flow Cell.

Parameters & Applications
Conductivity
Data Centers

Hydroponics & Agriculture

Online Sensors

Smart Sensors

Toroidal Conductivity

Series

$1,099.00

✓ This product qualifies for Free Shipping

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

A table comparing the facets of 2 products
Facet
ITCS3020-MB/500
ITCS3020-MB/2000
Temperature Rating
Temperature Rating
80°C
80°C
Pressure Rating
Pressure Rating
150 psig
150 psig
Power Supply
Power Supply
7-36 VC
7-36 VC
Connection Type
Connection Type
3/4" MNPT
3/4" MNPT
Temperature Compensation
Temperature Compensation
Pt 1000
Pt 1000
Materials
Materials
Body: Noryl
Body: Noryl
Cable
Cable
20 ft (6 M)
20 ft (6 M)
