Brand:   Sensorex  |  SKU: EM890

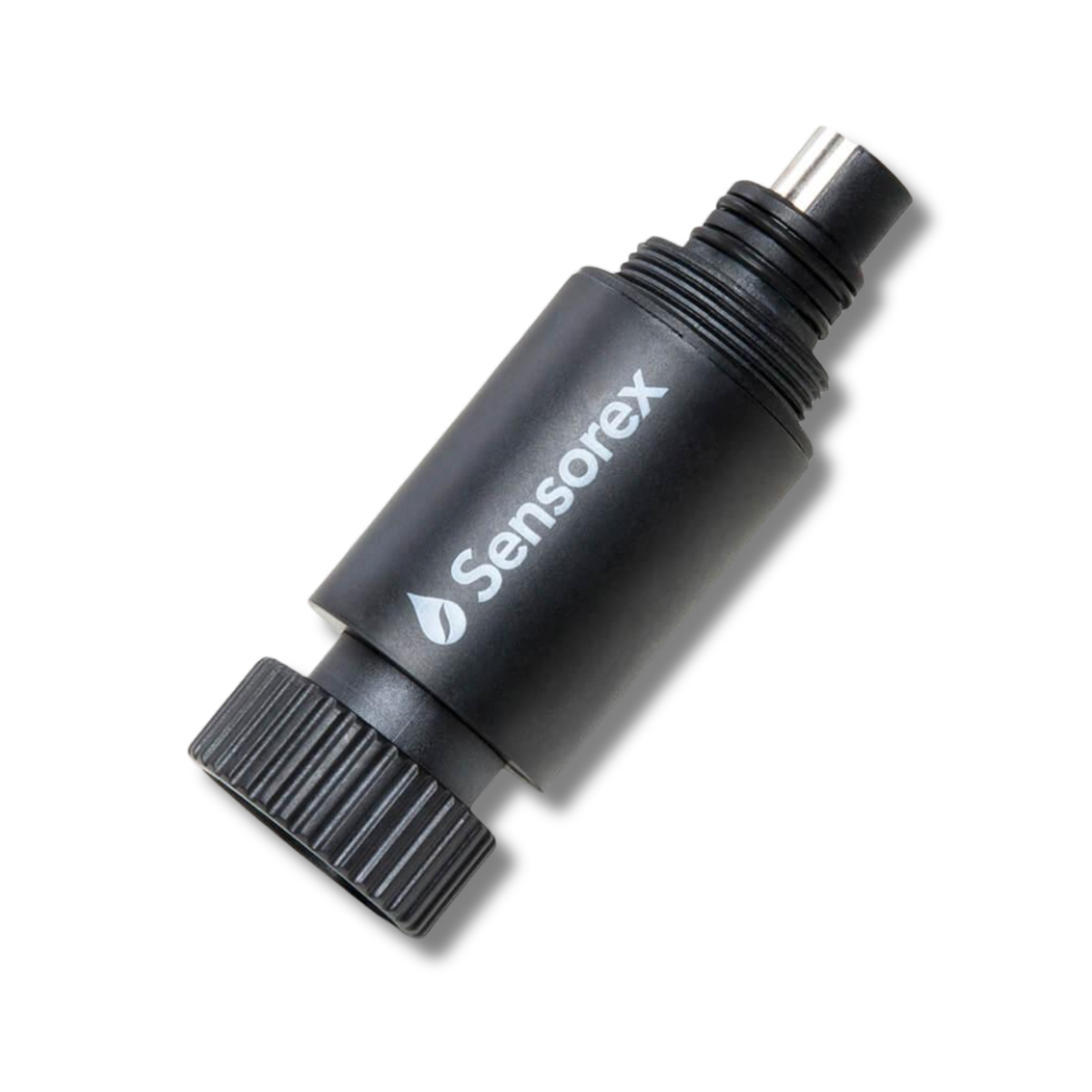

Sensorex EM Series Electronic Module for S8000 Series pH/ORP Sensors

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Sensorex EM Series Electronic Module for S8000 Series pH/ORP Sensors provide signal amplification or transmitter outputs for compatible S8000 Series pH, ORP, and contacting conductivity sensors. Depending on the selected model, 4–20 mA or Modbus/RS485 outputs enable integration with PLC, SCADA, and compatible controllers. EM805 modules support S8100 submersion pH/ORP sensors, while EM805-EC modules connect to CS300 conductivity cartridges using an S856 cable; both support Pt1000 RTD temperature compensation. Power options include 12 VDC for Modbus-only configurations and 24 VDC for 4–20 mA and Modbus configurations.

EM800 and EM801 Parameters & Applications

S8000 Modular Sensor System
S8000 Smart Modular Sensor System

Smart Sensors

Stock Item



EM805-EC Parameters & Applications

Conductivity

ORP

pH
S8000 Smart Modular Sensor System

Smart Sensors



EM805-PH and EM805-ORP Parameters & Applications

ORP

pH
S8000 Smart Modular Sensor System

Smart Sensors

Model

$454.85

✓ This product qualifies for Free Shipping

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

EM800
EM801
EM805-EC-MA-K=1
EM805-EC-MB-K=0.1
EM805-ORP-MB
EM508-PH-MB
Description
Description
Battery-powered, unity gain amplifier. Use for cable length >30ft only. Use with S853, or S855 cable when using EA899TC.
Battery-powered, differential amplifier. Requires Electrode adapter EA899 or EA899 TC. Use with S853 or S855 cables.
24 VDC-powered, 4–20 mA conductivity transmitter module with a 1.0 cm⁻¹ cell constant and Pt1000 RTD temperature compensation; use with S856 cable.
12–24 VDC-powered, Modbus/RS485 conductivity transmitter module with a 0.1 cm⁻¹ cell constant and Pt1000 RTD temperature compensation; use with S856 cable.
12-24V DC-powered, Modbus-485 ORP transmitter module. Requires Electrode adapter EA899 or EA891. Use with S856 cable.
12-24V DC-powered, Modbus-485 pH transmitter module. Requires Electrode adapter EA899 or EA891. Use with S856 cable.
Type
Type
Output Amplifier Module
Output Amplifier Module
Smart Conductivity Module
Smart Conductivity Module
Smart Module
Smart Module

Support Materials

Sensorex S8000 pH and ORP Systsem Data Sheet

Sensorex S8000 pH and ORP Systsem Manual

Sensorex Modbus User Manual

Smart Sensor User Interface Advanced A Manual

Sensorex SmartSensors Brochure
