Brand:   Sensorex  |  SKU: EA890

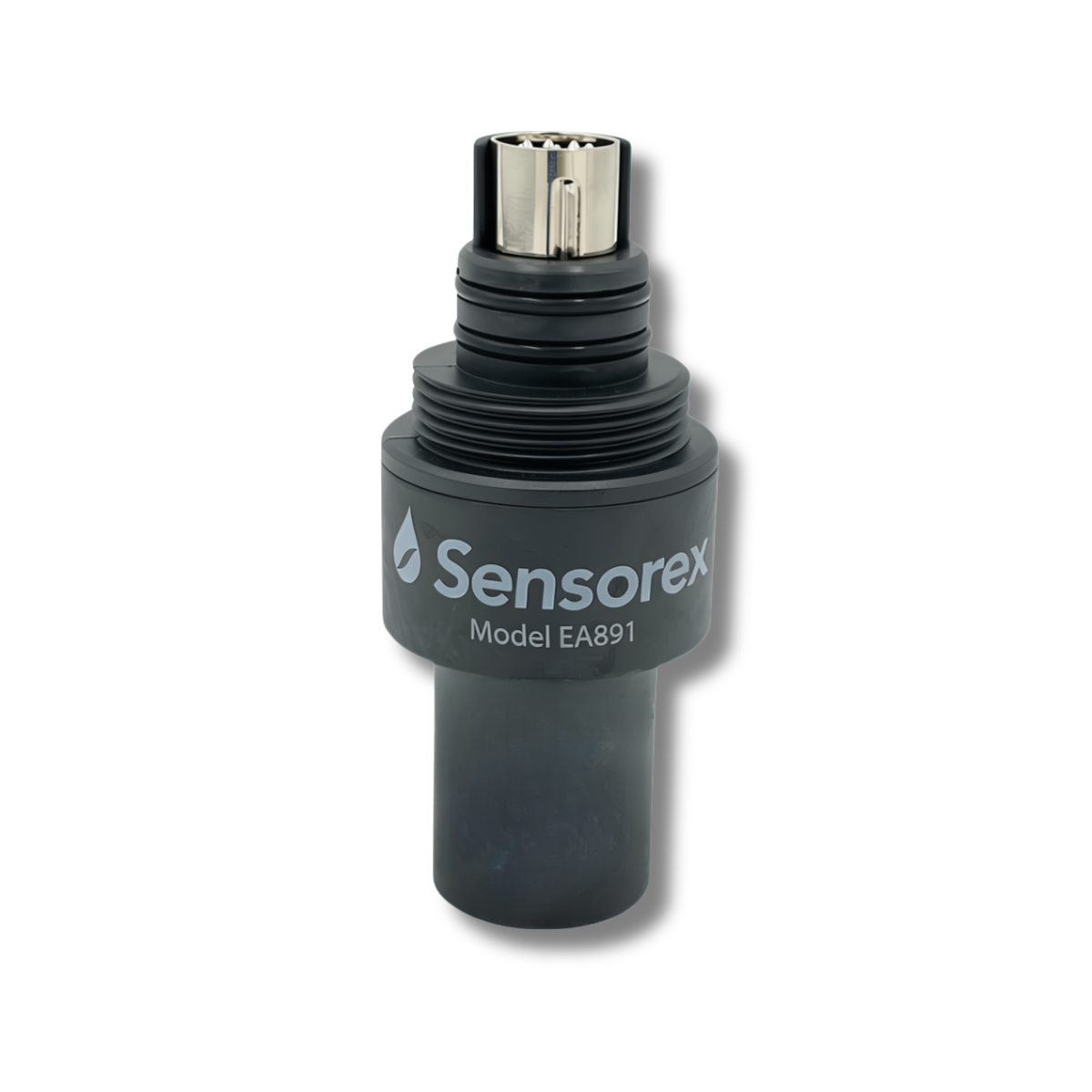

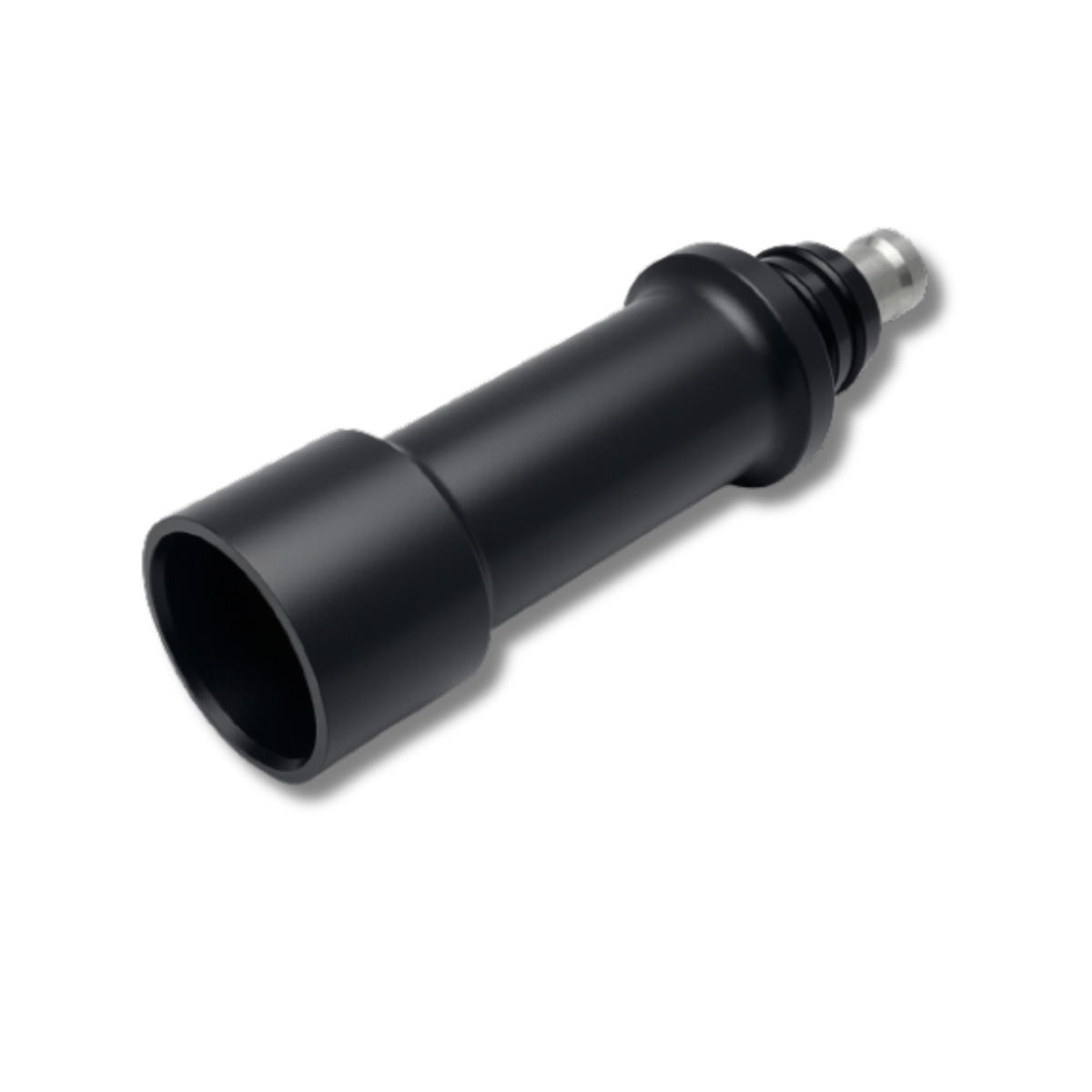

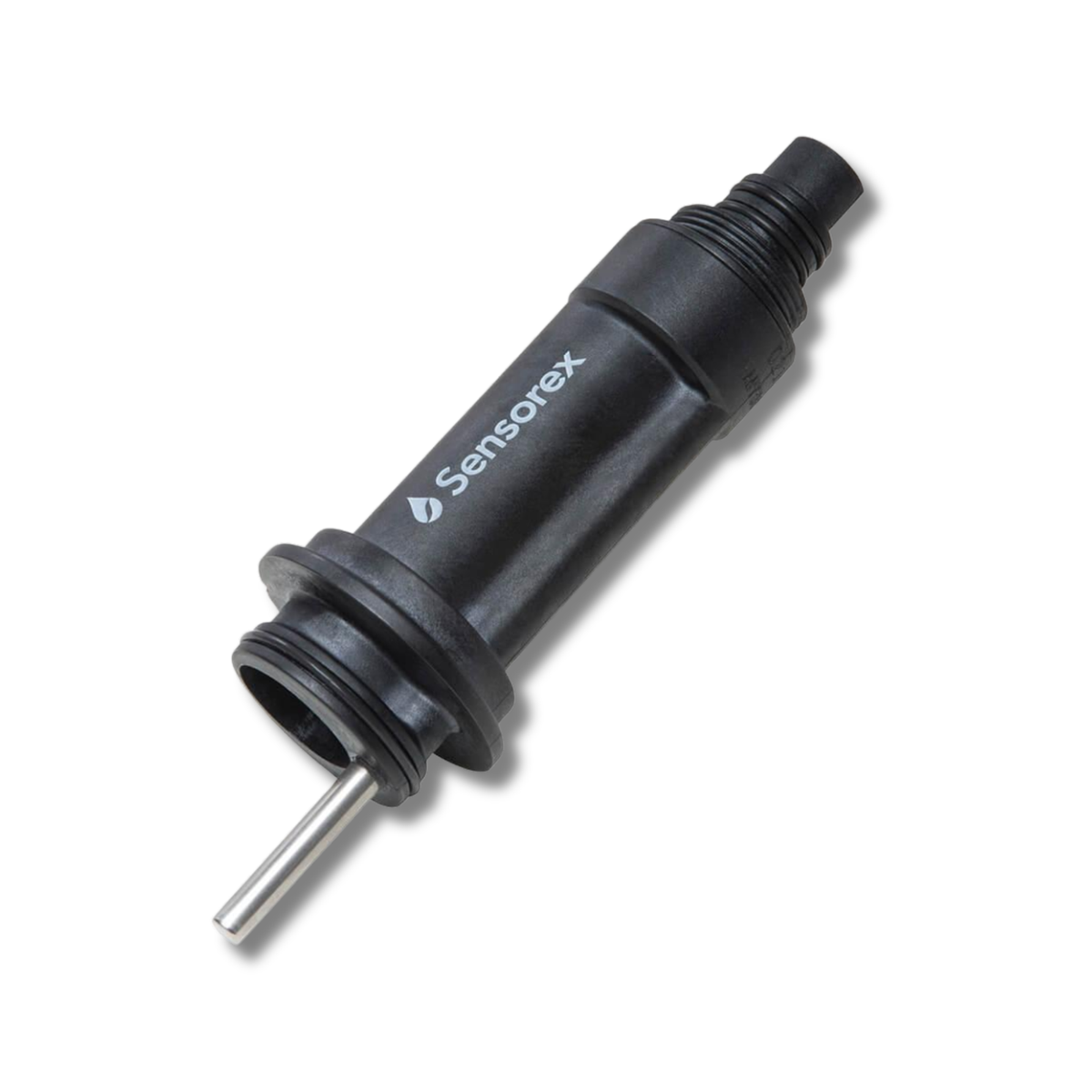

Sensorex EA Series Sensor Cartridge Housings for S8000 Series pH/ORP Sensors

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Sensorex EA Series Sensor Cartridge Housings for S8000 Series pH/ORP Sensors are compatible with all Sensorex S8000 Series pH and oxidation-reduction potential (ORP) sensor cartridges for submersion or inline installations. Available with integrated automatic temperature compensation and solution ground options, these modular housings allow replacement of the sensor cartridge while retaining the housing to reduce maintenance costs. The optional solution ground helps eliminate measurement errors caused by reference ground potentials.

Parameters & Applications

Installation Hardware & Accessories

S8000 Modular Sensor System
S8000 Smart Modular Sensor System

Smart Sensors

Stock Item

Model

$48.17

Shipping calculated at checkout.

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

EA890
EA891
EA899
EA899TC/P1K
EA899TC/PT1
Description
Description
Electrode adapter, retrofits S8000 to S653 cable
Electrode adapter, submersion mount or use with S8075CD, no temperature compensation. Use with cable S853 or S856
Electrode adapter, submersion or in-line mount, no temperature compensation, with solution ground. Use with all cables
Electrode adapter, submersion or in-line mount, with temperature compensation and solution ground. Use with all cables.
Specify temperature compensation for use with S855. TC = P1k for S856
Electrode adapter, submersion or in-line mount, with temperature compensation and solution ground. Use with all cables.
Specify temperature compensation for use with S855. TC = P1k for S856
Temperature Compensation
Temperature Compensation
N/A
No ATC
No ATC; with solution ground
1000‎Ω RTD
100‎Ω RTD

Support Materials

Sensorex S8000 pH and ORP Systsem Data Sheet

Sensorex S8000 pH and ORP Systsem Manual
