Brand:   Sensorex  |  SKU: CX10

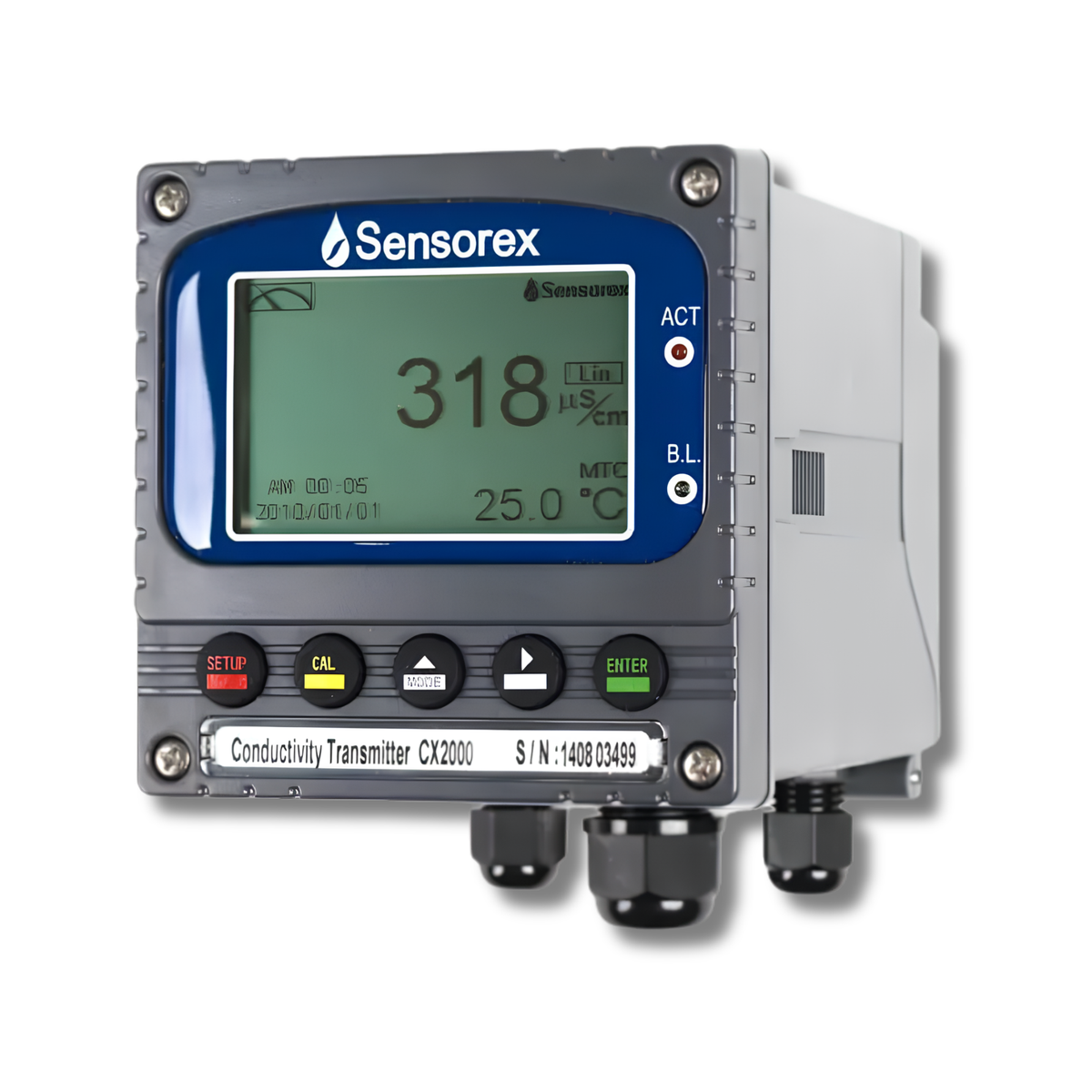

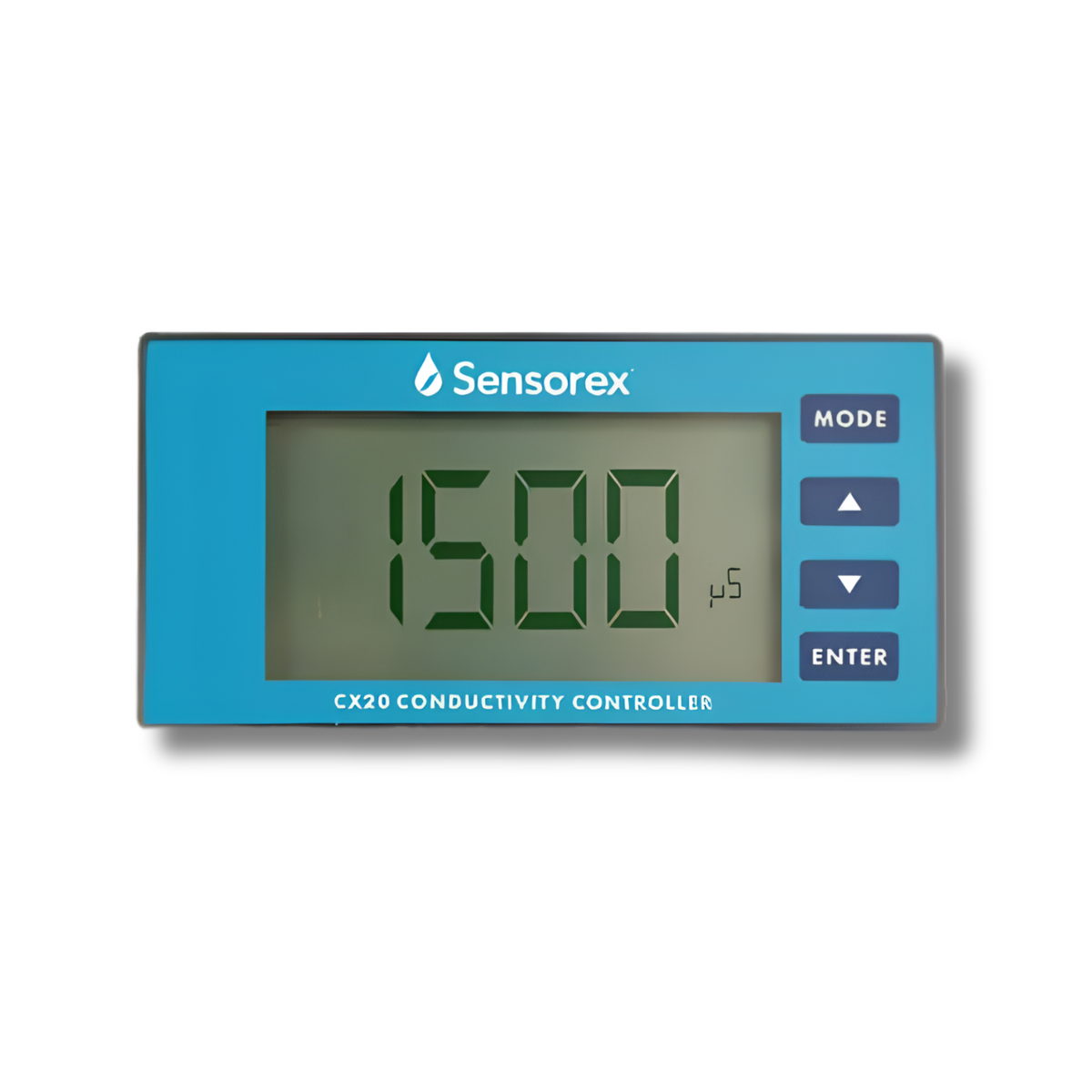

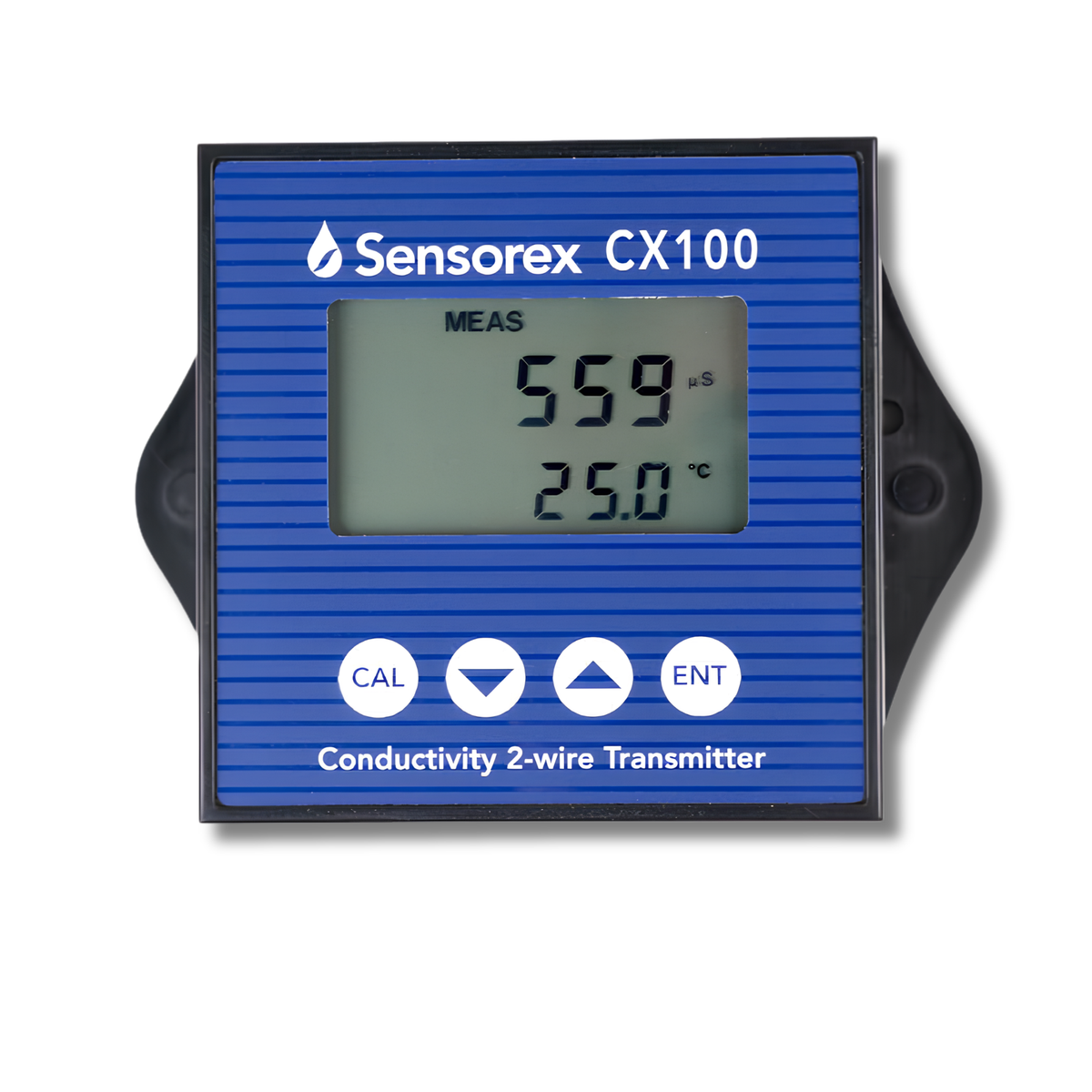

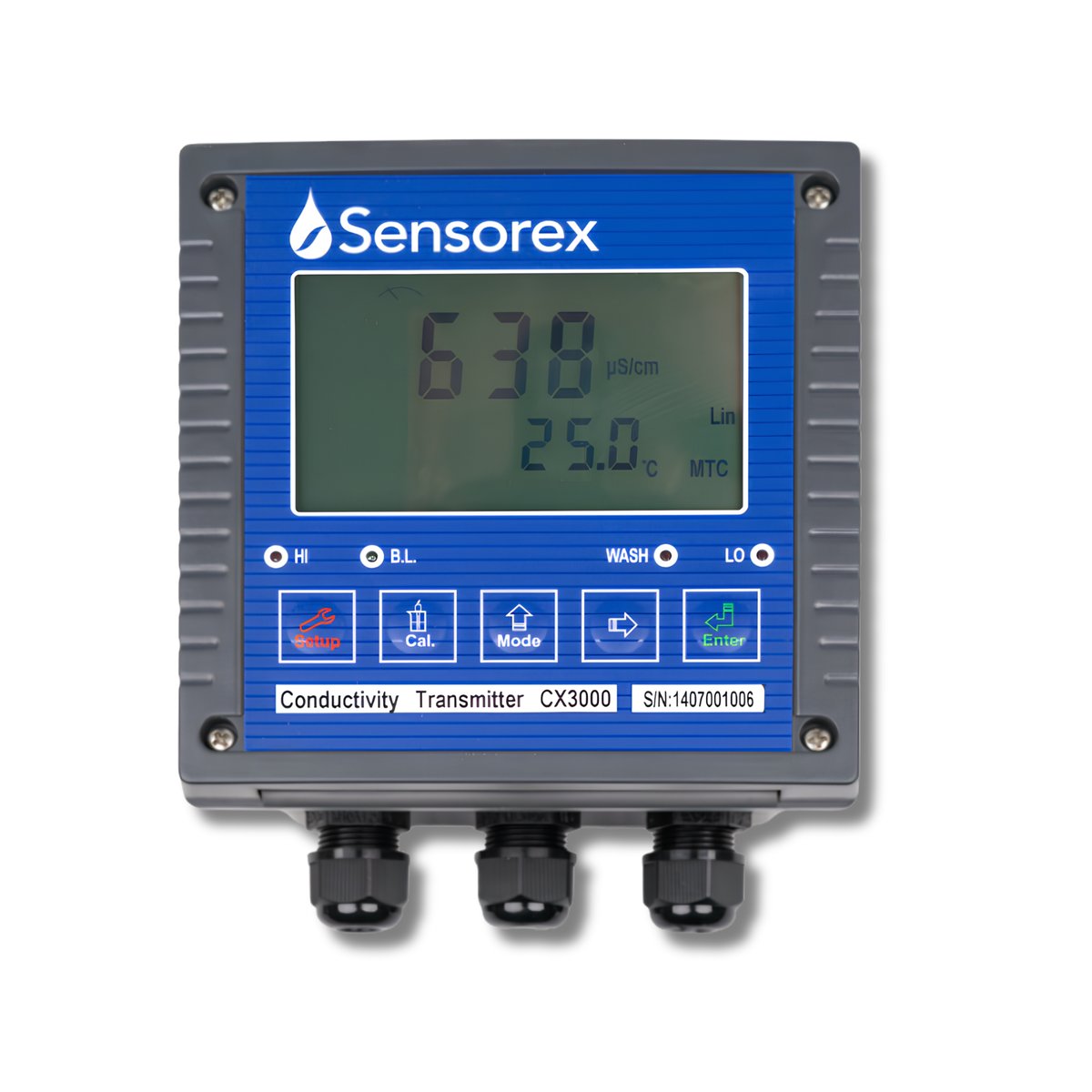

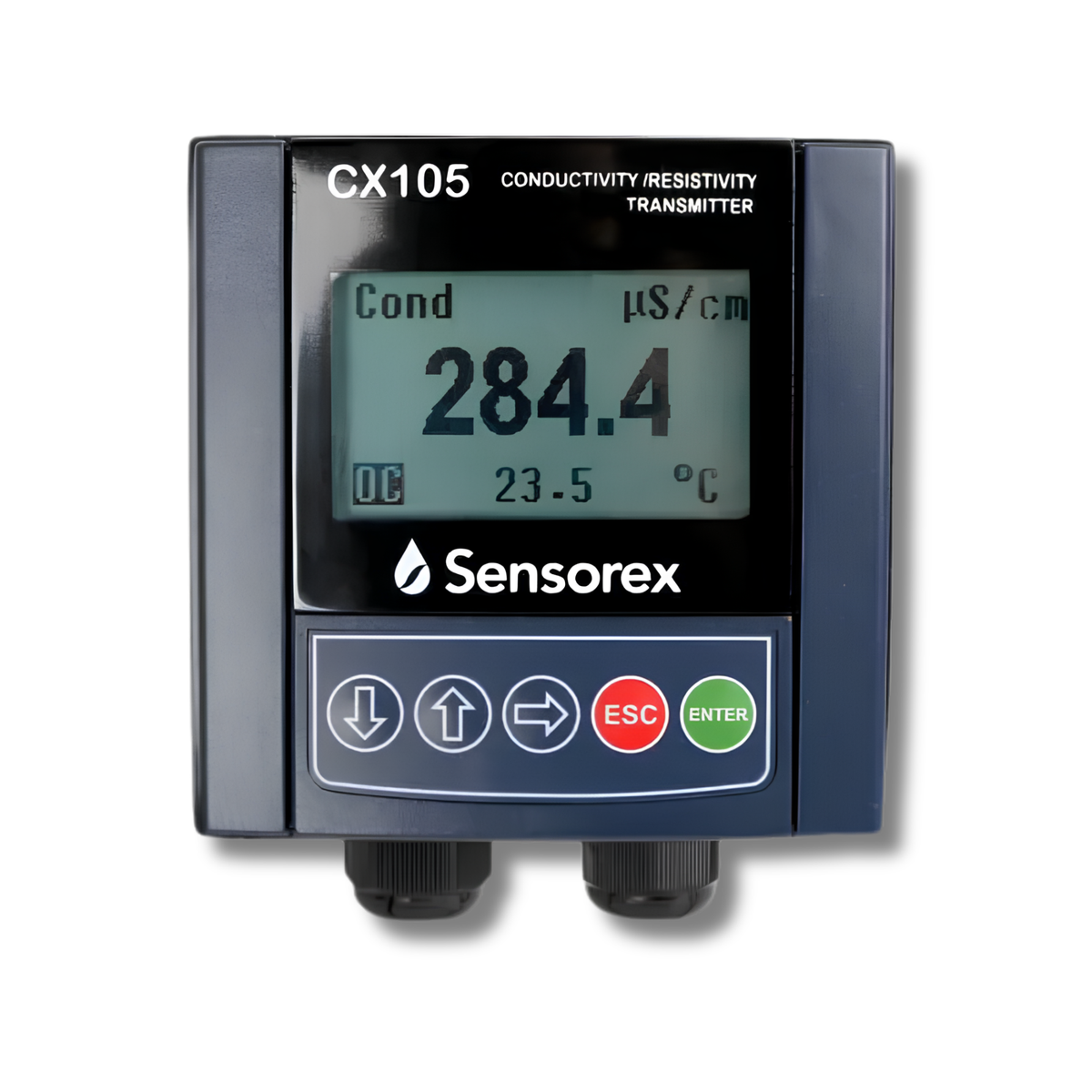

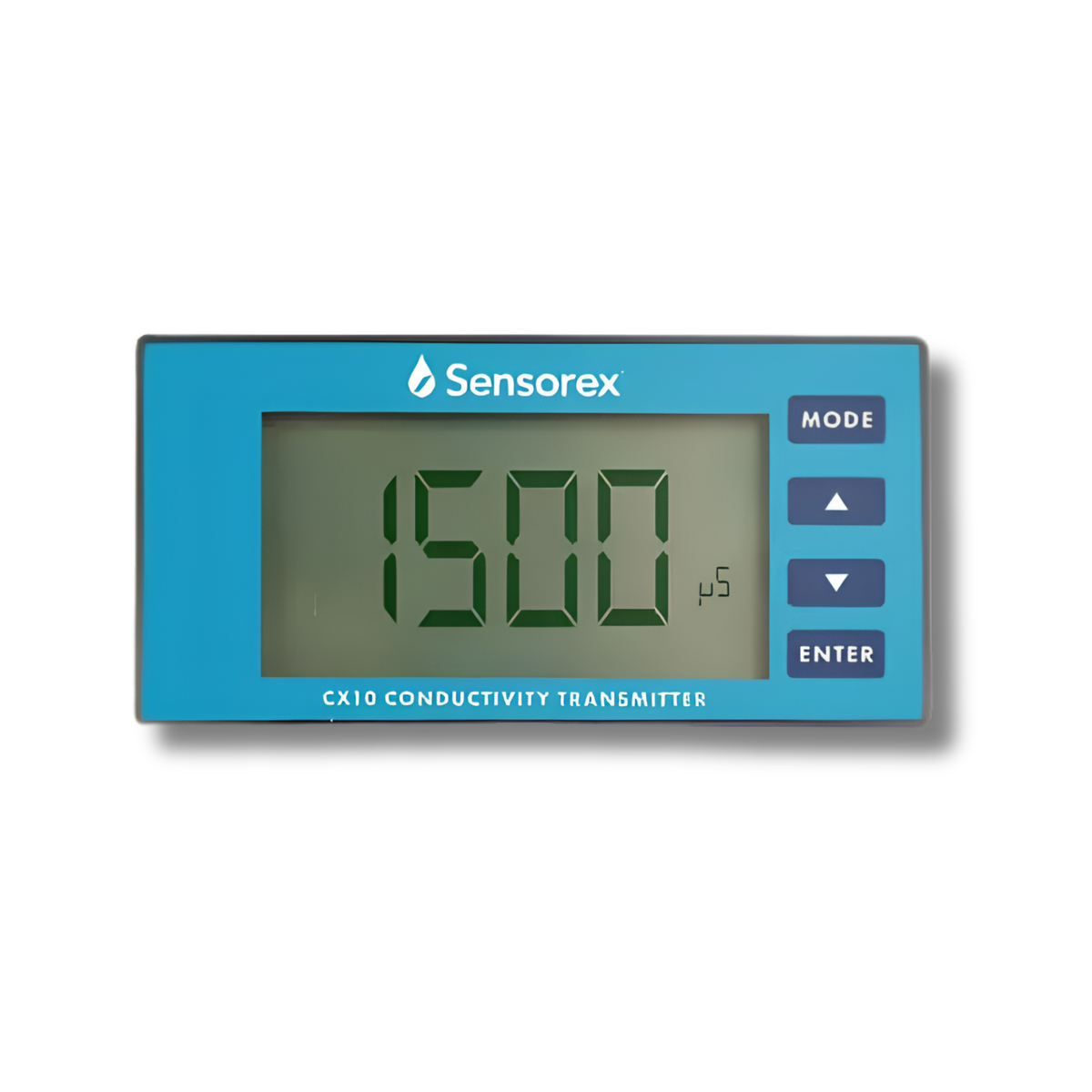

Sensorex CX Series Conductivity Transmitter/Controller

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Sensorex CX Series Conductivity Transmitter/Controller are designed for electrical conductivity (EC) measurement and control in water treatment and industrial process applications. Used with a compatible conductivity sensor, it provides conductivity monitoring to support process management. Sensor compatibility, measurement ranges, temperature compensation, signal outputs, and control functions depend on the selected CX Series model.

Parameters & Applications

Conductivity

Controllers & Transmitters

Model

$344.79

✓ This product qualifies for Free Shipping

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

CX10
CX20
CX100
CX105
CX2000
CX2000RS
CX3000
Type
Type
Conductivity Transmitter
Conductivity Controller
Conductivity Transmitter
Loop-powered Conductivity Transmitter
Conductivity Transmitter/Controller
Conductivity Transmitter/Controller
Conductivity Resistivity/Salinity Transmitter
Conductivity Range
Conductivity Range
Selectable ranges up to 19.99 mS/cm
Selectable ranges up to 19.99 mS/cm
6 selectable ranges up to 19.99 mS/cm
0.05–500,000 µS/cm (up to 500 mS/cm)
5 ranges, up to 200.0 mS/cm
5 ranges, up to 200.0 mS/cm
6 ranges, up to 200.0 mS/cm
Power Supply
Power Supply
100-240 VAC
100-240 VAC
12-24 VDC loop power
19-48 VDC
100-240 VAC
100-240 VAC
100-240 VAC
Signal Outputs
Signal Outputs
1 isolated, reversible 4-20 mA
No analog current output
Isolated 4-20 mA
Isolated 4-20mA; open-collector output
2 isolated 0/4-20 mA outputs
2 isolated 0/4-20 mA outputs
2 isolated 0/4-20 mA outputs
Control Functions
Control Functions
No control relays
2 programmable ON/OFF relays
Output HOLD during calibratio/setup
Open collector configurable for high, low, or proportional pulses
2 adjustable control relays and wash control
2 adjustable control relays and wash control
2 adjustable control relays and wash control

Support Materials

Sensorex CX10 and CX20 Data Sheet

Sensorex CX105 Data Sheet

Sensorex CX2000 Data Sheet

Sensorex CX3000 Data Sheet

Sensorex Conductivity Transmitter and Controller Comparison Sheet
