Brand:   Sensorex  |  SKU: CS675HTTCP1K

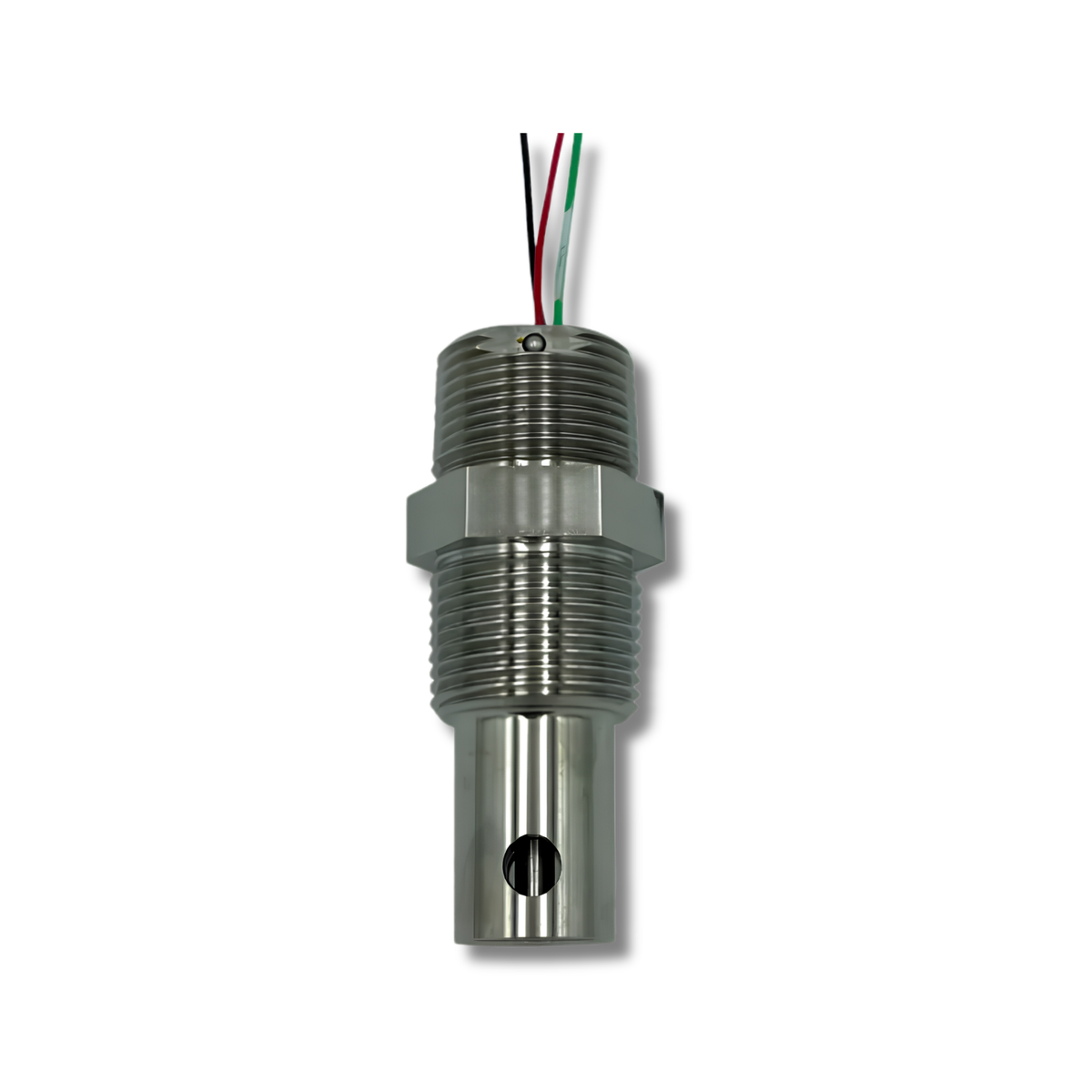

Sensorex CS675HTTC/P1K High Temp & Pressure Stainless Steel Contacting Conductivity Sensor

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Sensorex CS675HTTC/P1K High Temp & Pressure Stainless Steel Contacting Conductivity Sensor is designed for heavy-duty, high-temperature and high-pressure applications, featuring 316 stainless steel and PEEK construction with a single-body design. Available with cell constants of 0.1 cm⁻¹ or 1.0 cm⁻¹, it offers three temperature and pressure rating options and two insertion lengths to suit process requirements. Standard listed models include a Pt1000 temperature element, with extended cable lengths and alternative automatic temperature compensation (ATC) elements available by request.

Parameters & Applications

Conductivity

Online Sensors

$382.35

✓ This product qualifies for Free Shipping

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

A table comparing the facets of 1 products
Facet
Cell Constant
Cell Constant
k = 1.0
Temperature Rating
Temperature Rating
0 - 200 C°
Pressure Rating
Pressure Rating
0 - 250 PSIG
Temperature Compensation
Temperature Compensation
Pt 1000 RTD
Materials
Materials
316 Stainless Steel
PEEK Insulator
Aflas O-ring for 200°C and 250 PSIG
Cable
Cable
GA - 6", High Temp 4-Wire Cable
