Brand:   Sensorex  |  SKU: CS150-K=0.1

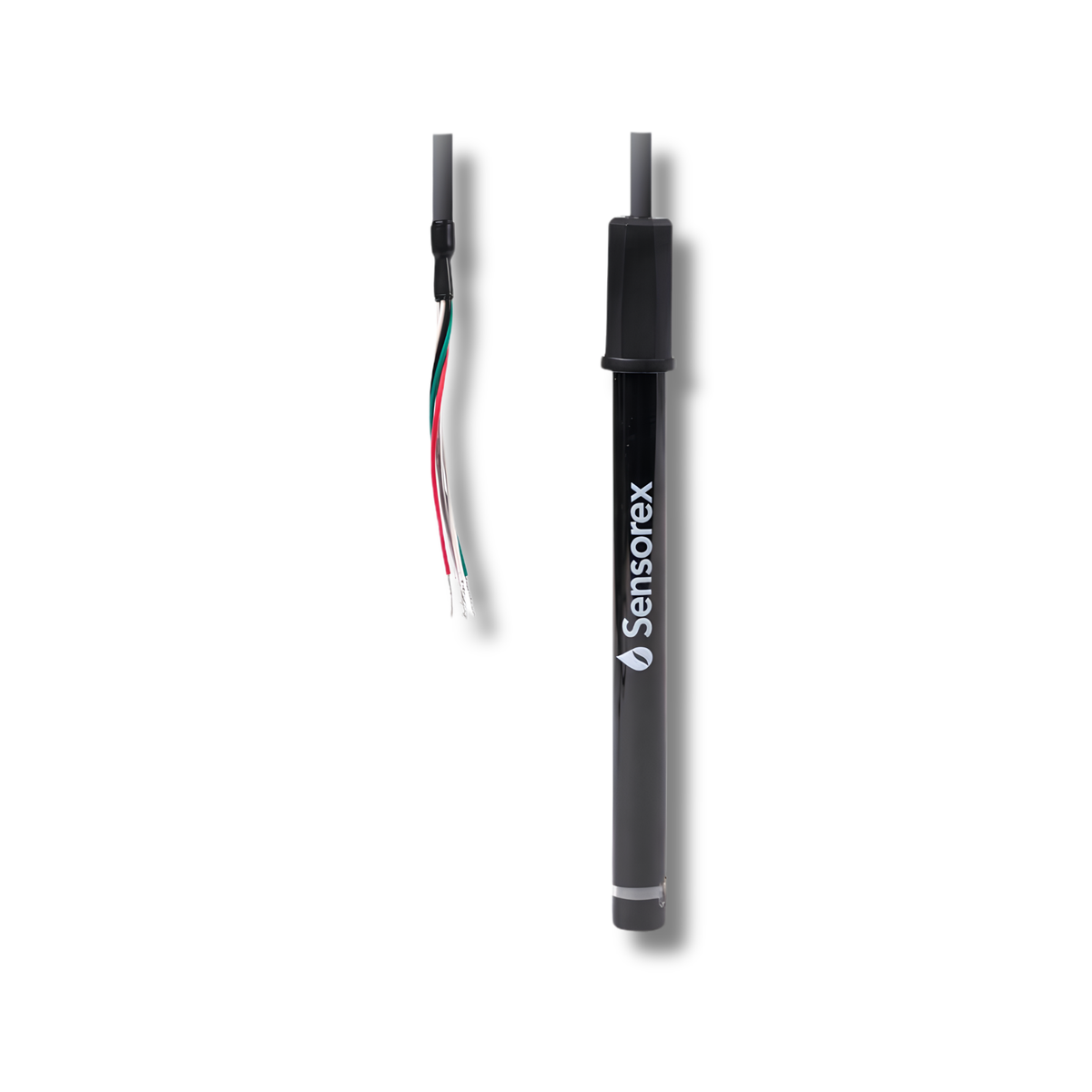

Sensorex CS150 Graphite Contacting Conductivity Sensor

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Sensorex CS150 Graphite Contacting Conductivity Sensor is a 12 mm graphite contacting conductivity sensor for laboratory and light industrial applications, supporting tank submersion or inline pipe installation. Configurable cell constants, temperature compensation, cable lengths, and connectors allow selection to suit specific measurement requirements. The laboratory version is compatible with the Sensorex CM1000, while the process version supports Sensorex CX105, CX2000, CX2000RS, and CX3100 transmitters.

Parameters & Applications

Conductivity

Hydroponics & Agriculture

Lab Sensors

Online Sensors

Model

$122.48

✓ This product qualifies for Free Shipping

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

A table comparing the facets of 2 products
Facet
CS150-K=0.1 - 0.1/cm
CS150-K=1.0 - 1/cm
Cell Constant
Cell Constant
k = 0.1
k = 1.0
Measuring Surface
Measuring Surface
Graphite
Graphite
Max Pressure
Max Pressure
100 psig (7.5 bar)
100 psig (7.5 bar)
Max Temperature
Max Temperature
0 – 70° (32 – 158° F)
0 – 70° (32 – 158° F)
Materials
Materials
Plastic
Plastic
Cable
Cable
22 AWG two-wire or four-wire
22 AWG two-wire or four-wire
