Brand:   Sensorex  |  SKU: CALC110

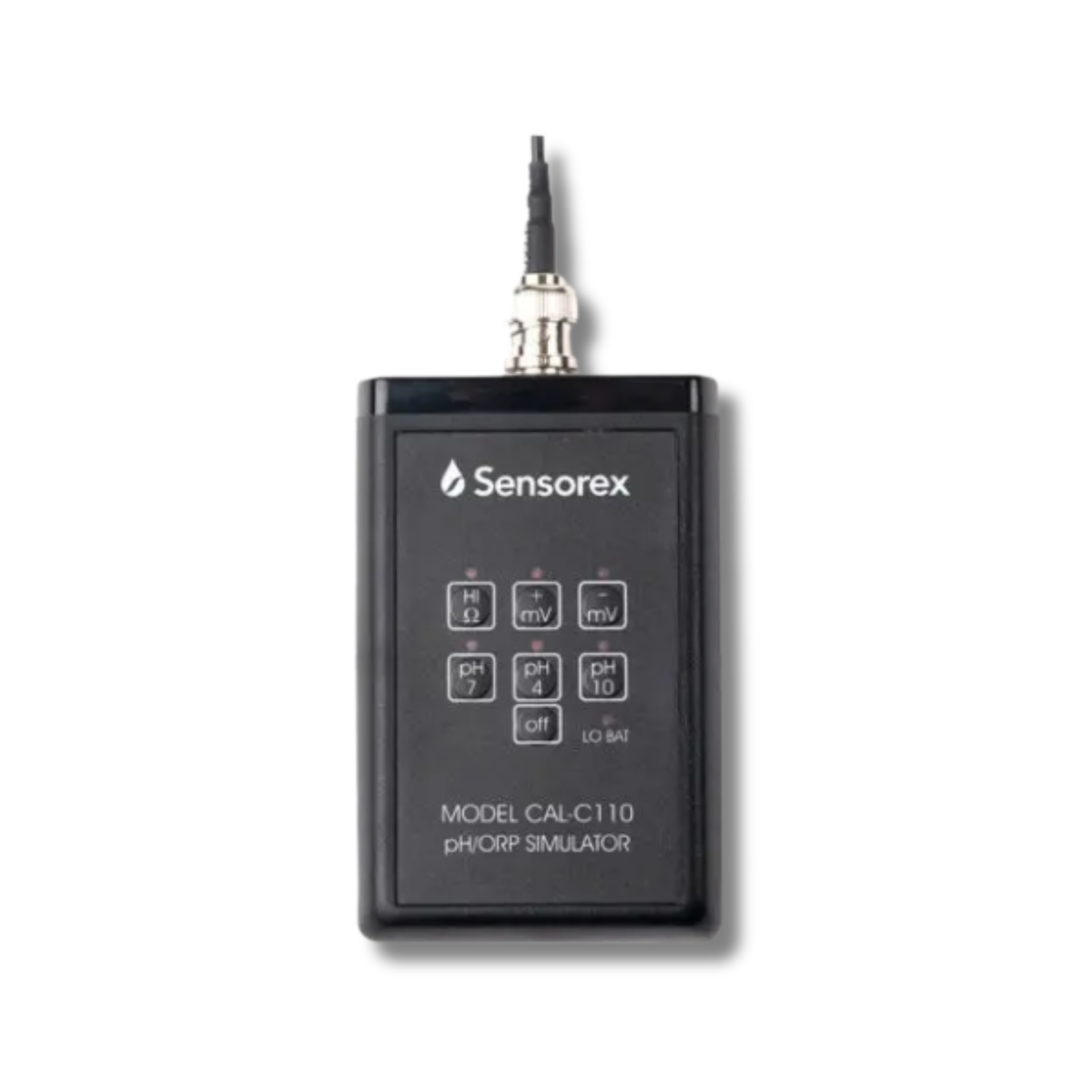

Sensorex CAL-C110 pH & ORP Simulator

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Sensorex CAL-C110 pH & ORP Simulator generates simulated pH and oxidation-reduction potential (ORP) sensor signals to troubleshoot measurement loops and help isolate faults in sensors, interconnection cables, meters, preamplifiers, and controllers. Compatible with most pH and ORP systems, it features push-button high-impedance load simulation and includes one BNC-to-BNC interconnect cable and a 9V battery.

Parameters & Applications

Calibrations Standards & Maintenance Kits

ORP
$174.57

✓ This product qualifies for Free Shipping

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

pH Measurement Outputs
pH Measurement Outputs
4.00pH, 7.00pH, and 10.00pH (with & without high impedance load)
pH Accuracy
pH Accuracy
+/- 0.01pH or pH 7 = 0 +/-1mV, pH4 = +177 +/-
1mV, pH10= -177 +/-1mV
ORP Measurement Outputs
ORP Measurement Outputs
+/- 700mV
ORP Accuracy
ORP Accuracy
+/- 1mV
Temperature Range
Temperature Range
0°C to 40°C
Impedance Load
Impedance Load
1000MΩ, when applied
Power Requirements
Power Requirements
one 9V battery (included), estimated life = 400hrs
Dimensions
Dimensions
3.93” (100mm) L x 2.95”(75mm) W x 0.91”( 23mm) D
Weight
Weight
4 oz. (120g)
Cable
Cable
BNC to BNC cable included

Support Materials

Sensorex CAL-C110 pH & ORP Simulator Data Sheet

Sensorex CAL-C110 pH & ORP Simulator Instruction
