Brand:   OmniLyte  |  SKU: OS-PH-14-MR

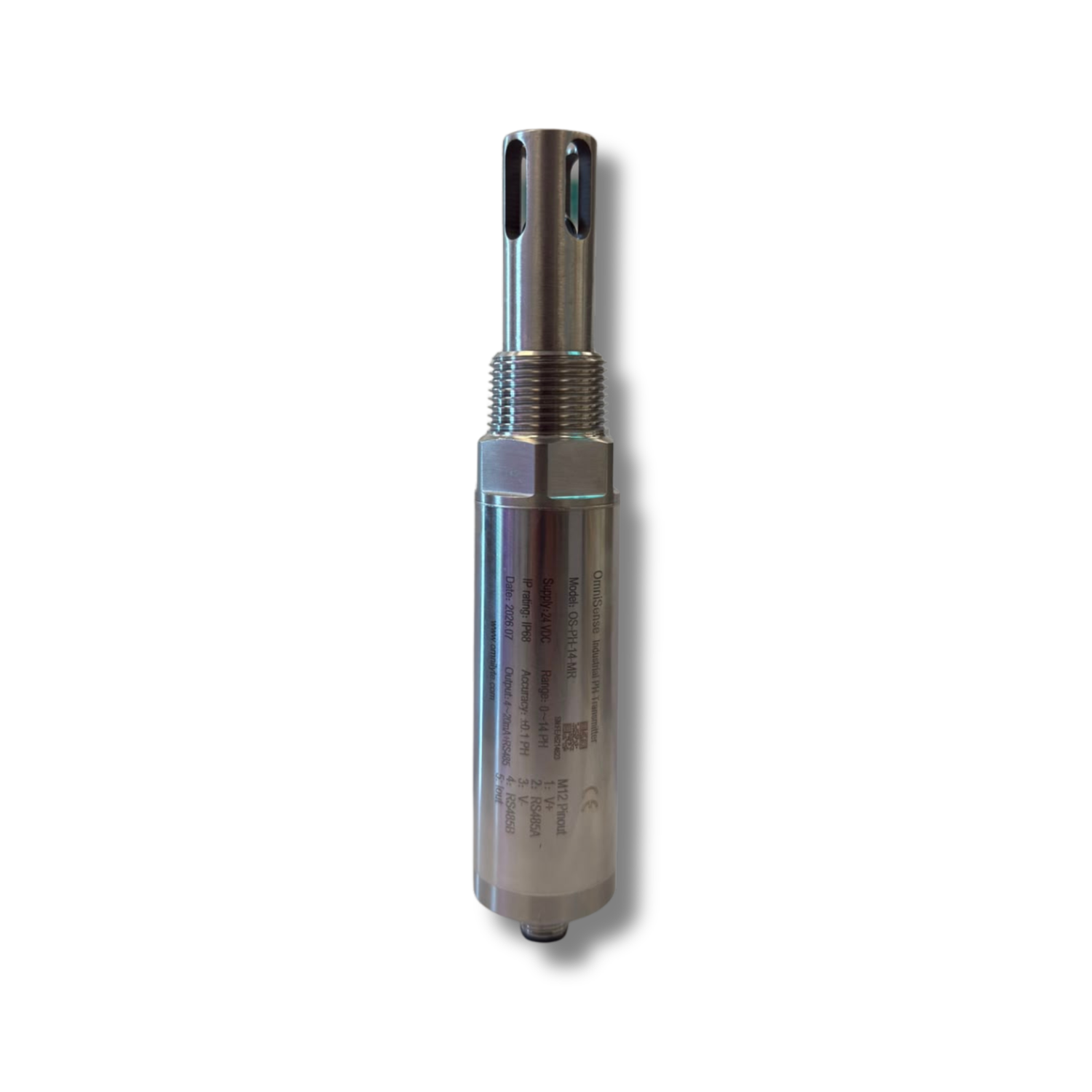

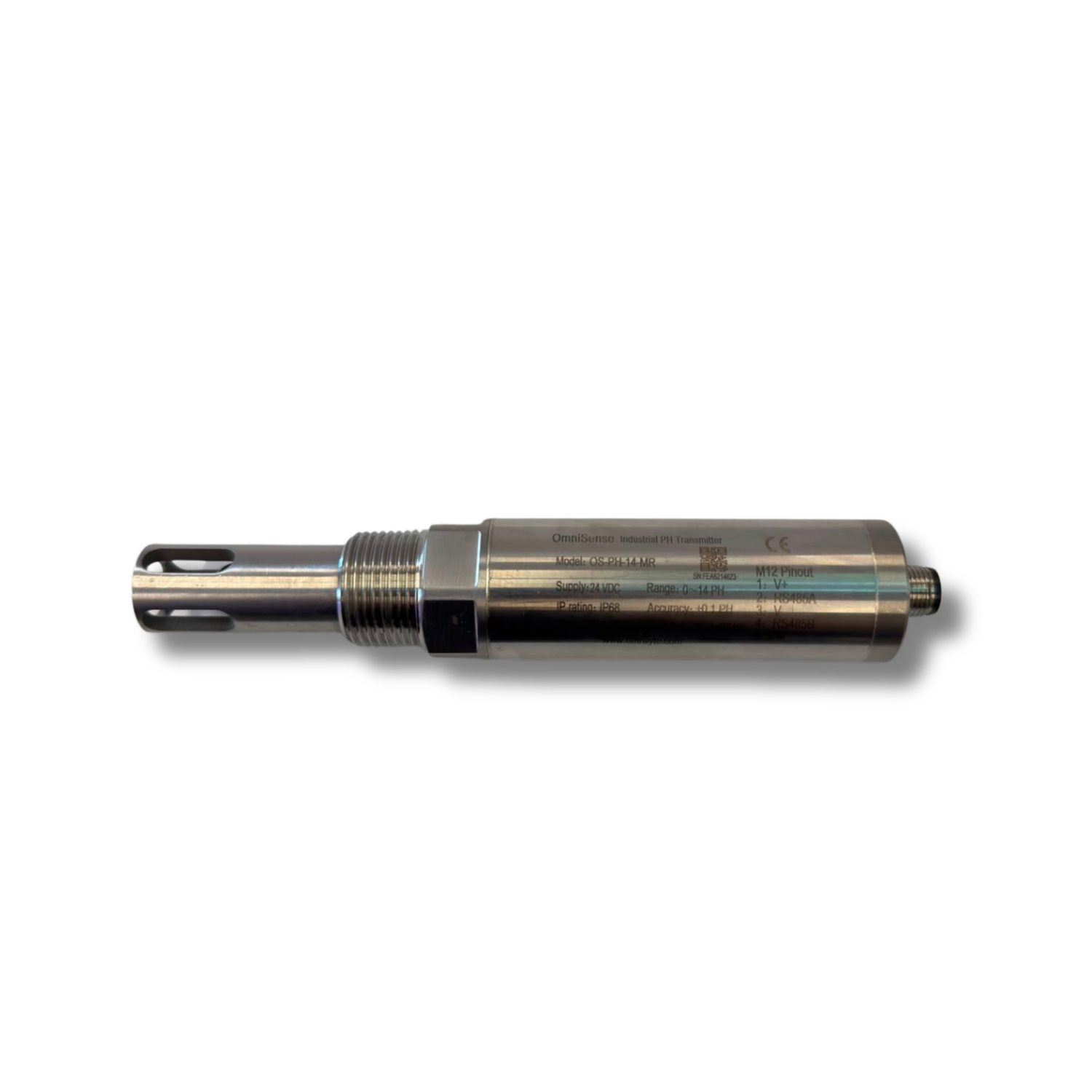

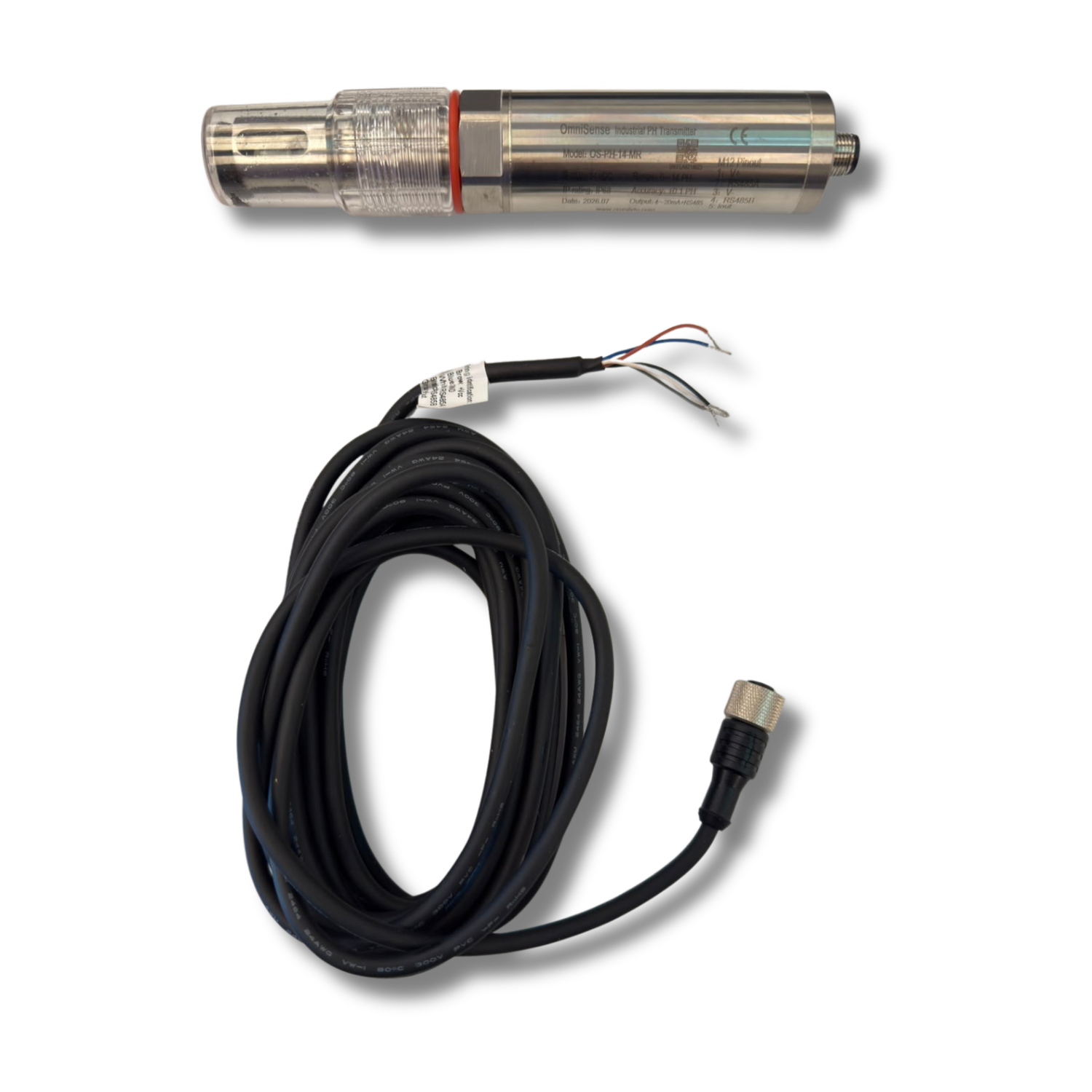

OmniLyte OmniSense Industrial PH Transmitter

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The OmniLyte OS-PH-14-MR OmniSense Industrial PH Transmitter delivers reliable real-time pH and temperature measurement for industrial process monitoring applications. Featuring a rugged 316L stainless steel housing, IP68 protection, and both RS485 Modbus RTU and 4-20mA outputs, it integrates easily with PLCs, SCADA, and control systems. Designed for water treatment, chemical processing, food production, and environmental monitoring, it provides accurate pH measurement from 0-14 pH with automatic temperature compensation for stable and dependable performance.
$722.50

✓ This product qualifies for Free Shipping

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for free shipping. For additional information, please refer to our Shipping Policy.

Specifications

Measuring Range
Measuring Range
0-14PH
Accuracy
Accuracy
0.1PH
Response Time
Response Time
< 30s
Power Supply
Power Supply
12-24VDC
Outputs
Outputs
4-20mA and RS485
Rated Pressure
Rated Pressure
010 –0.1 to +1 MPA
Type of Pressure
Type of Pressure
Gauge pressure
Display Method
Display Method
4 column digital LED white/Vertical inversion of display is possible
Fluid Type
Fluid Type
Gas or liquid that will not corrode the fluid contact part
Connection Type
Connection Type
NPT 3/4
Temperature Range
Temperature Range
0.60°C
Temperature Compensation
Temperature Compensation
PT1000
Calibration Method
Calibration Method
Multi-point calibration

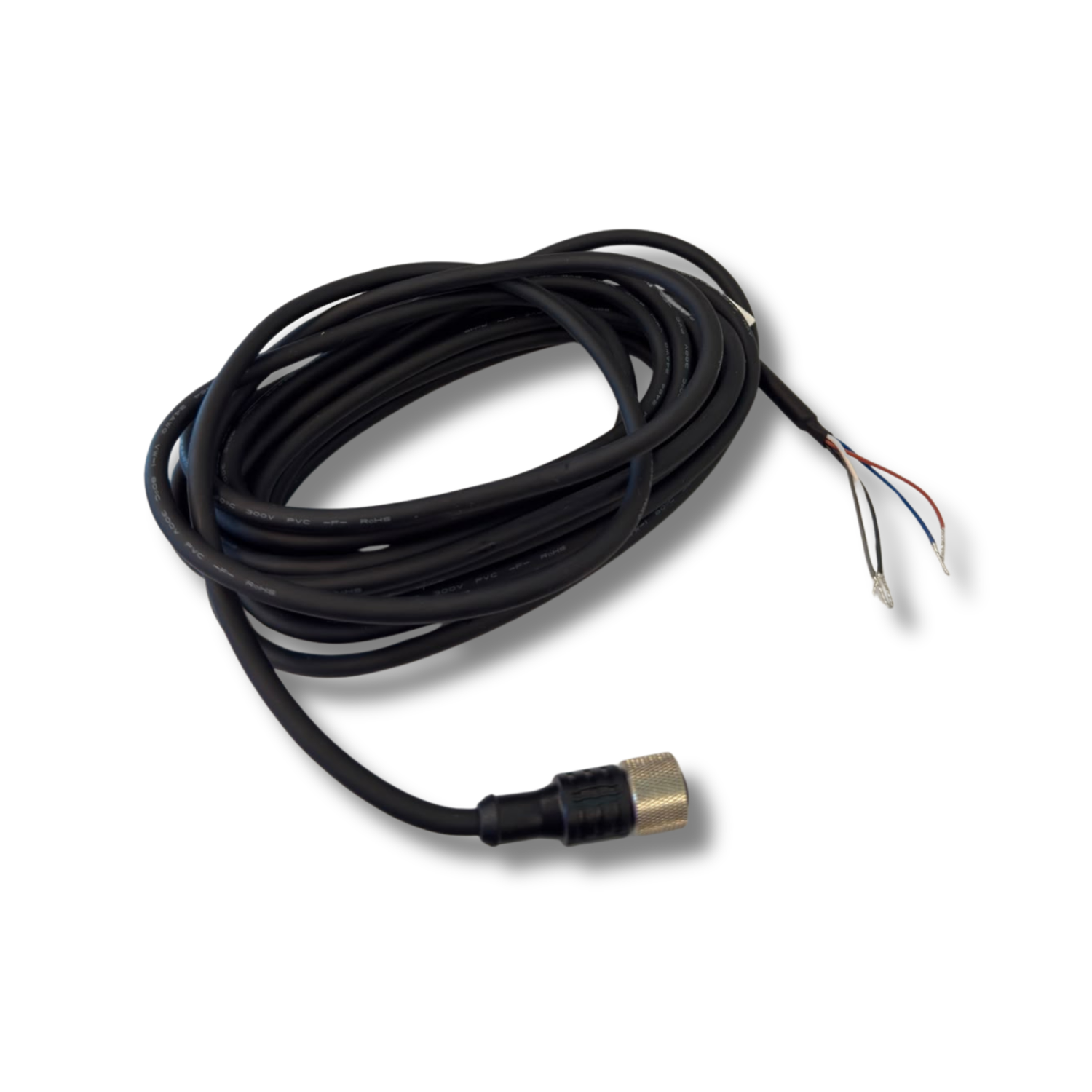

Signal Line Length
Signal Line Length
5m (customizable)
Voltage Resistance Range
Voltage Resistance Range
0~4 bar
Electrical Connection
Electrical Connection
M16 aviation plug connetor
Materials
Materials
316L Stainless Steel

Support Materials

OmniLyte OmniSense Industrial PH Transmitter Manual
