Brand:   Hydronix  |  SKU: PG25100B

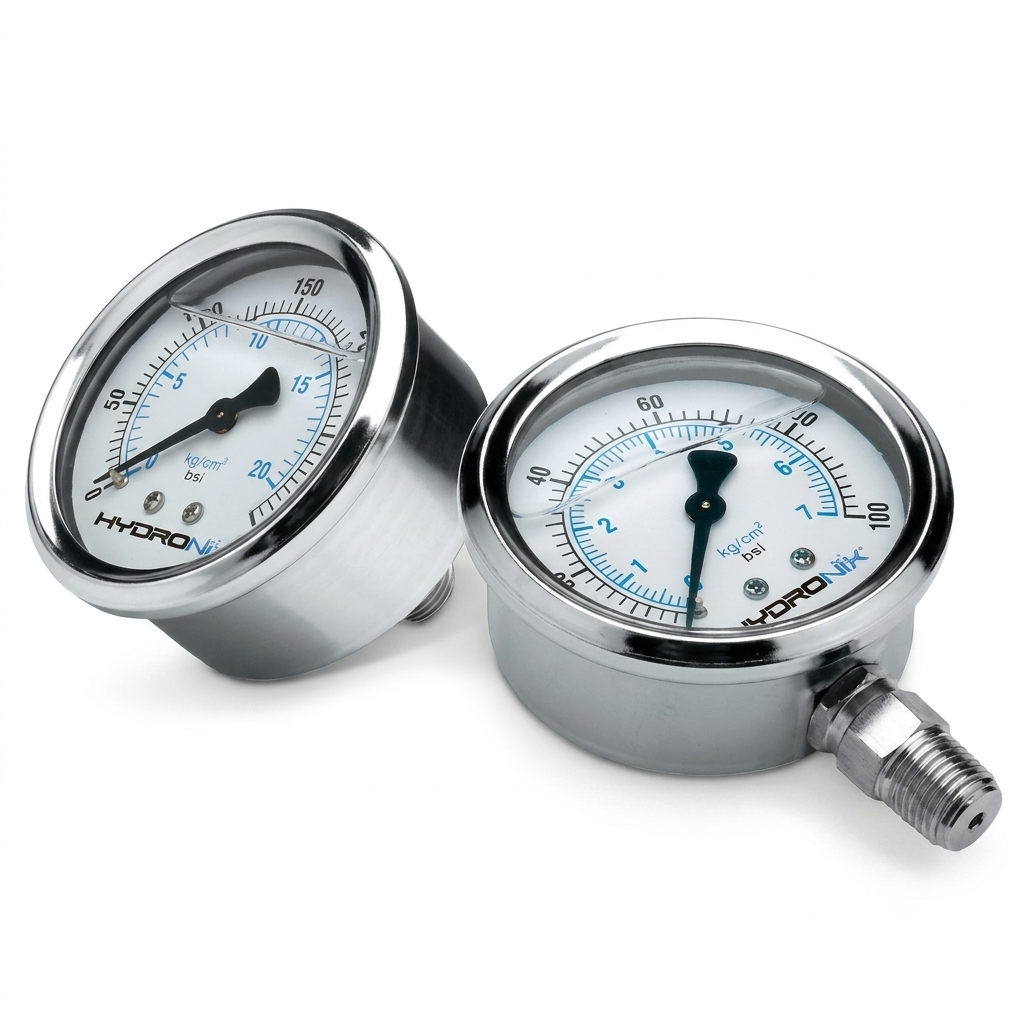

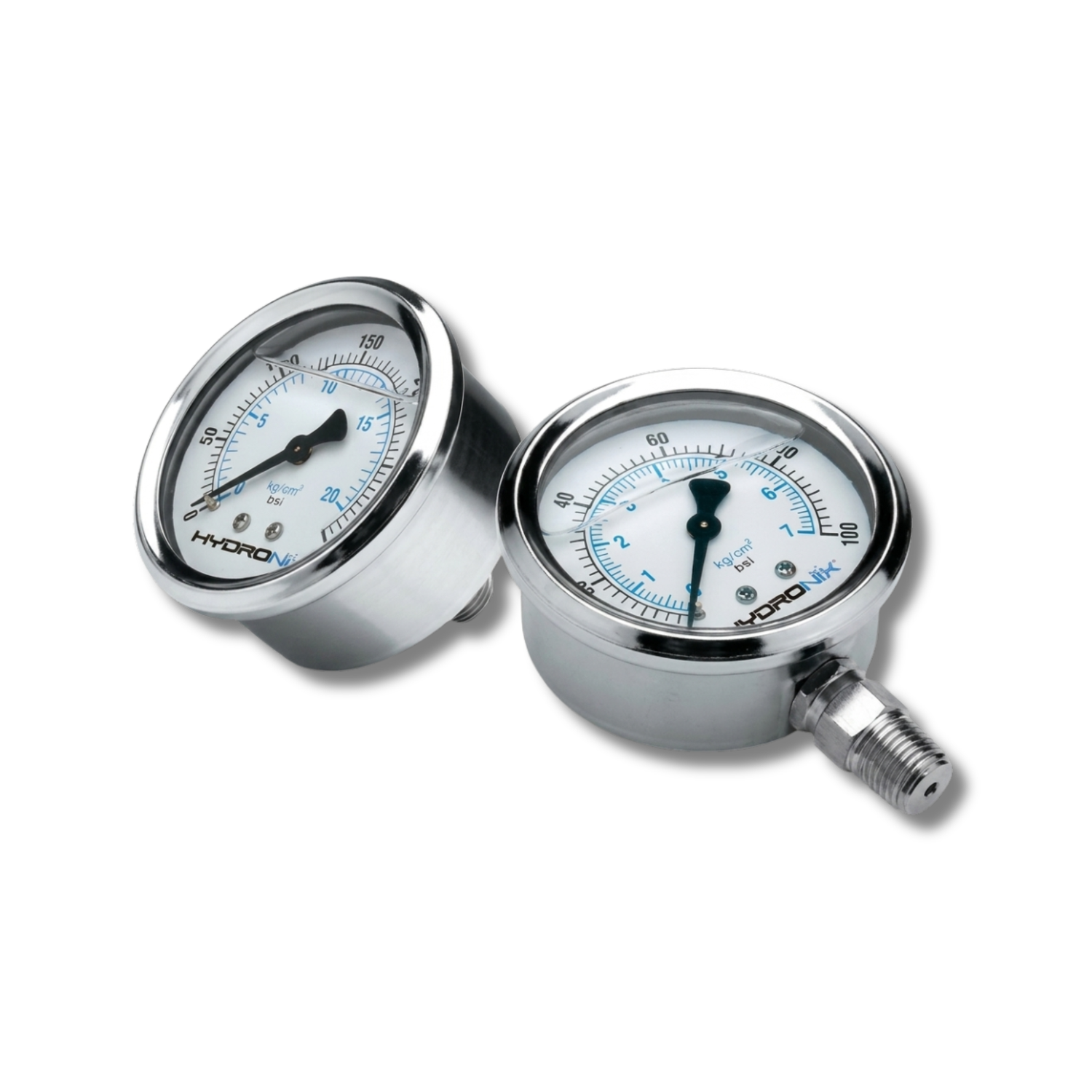

Hydronix PG Series Pressure Gauges

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

Hydronix PG Series Pressure Gauges are durable, UV-resistant gauges engineered for OEM applications, featuring high-grade synthetic fluid, chrome-plated stems, and bold two-tone dials with UV-resistant printing for long-lasting readability. Each gauge is individually tested for accuracy and leak prevention, making it a reliable choice for demanding industries such as reverse osmosis, oil refining, chemical processing, food production, and water treatment.

Materials

Casings: Brass, 304 SS and 316 SS

Internals: Brass and 316 SS

Stems: Chrome-plated brass, 304 SS or 316 SS

Face: White aluminum, black and blue print

Lens: Clear acrylic

Pointer: Aluminum, black

Fluid: UV-resistant synthetic silicone

Model
$16.47

Shipping calculated at checkout.

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

PG25100B
PG25100L
PG25300B
PG25300L

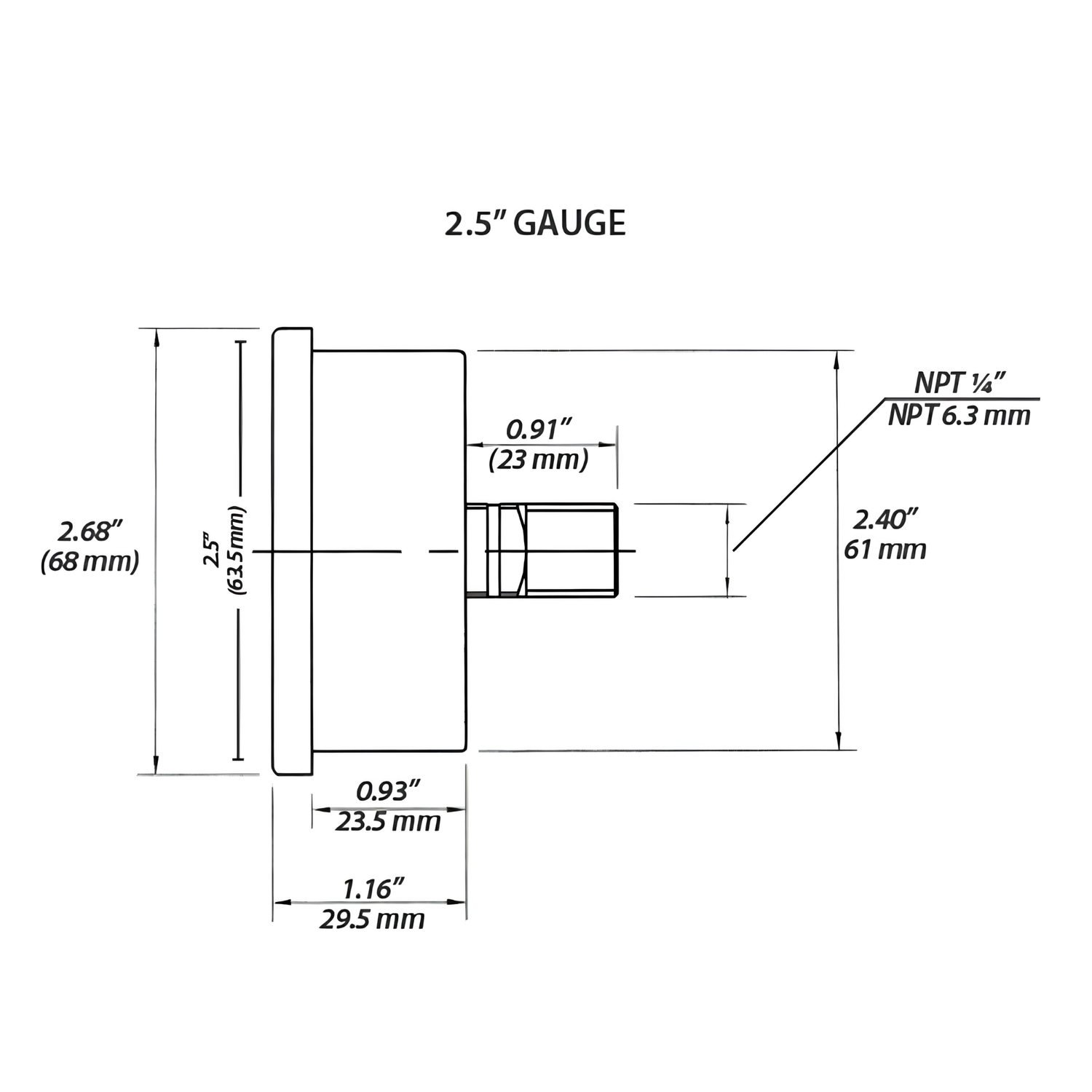

Size
Size
2.5"
2.5"
2.5"
2.5"
Type
Type
Center Back Mount
Lower Mount
Center Back Mount
Lower Mount
Temperature Rating
Temperature Rating
0 °F (-18 °C) to 140 °F (60 °C)
0 °F (-18 °C) to 140 °F (60 °C)
0 °F (-18 °C) to 140 °F (60 °C)
0 °F (-18 °C) to 140 °F (60 °C)
Range
Range
0-100 psi (7 kg/cm²)
0-100 psi (7 kg/cm²)
0-300 psi (20 kg/cm²)
0-300 psi (20 kg/cm²)
Connection Type
Connection Type
1/4" NPT
1/4" NPT
1/4" NPT
1/4" NPT

Support Materials

PG Series Data Sheet
