Brand:   Hydronix  |  SKU: PFM-055

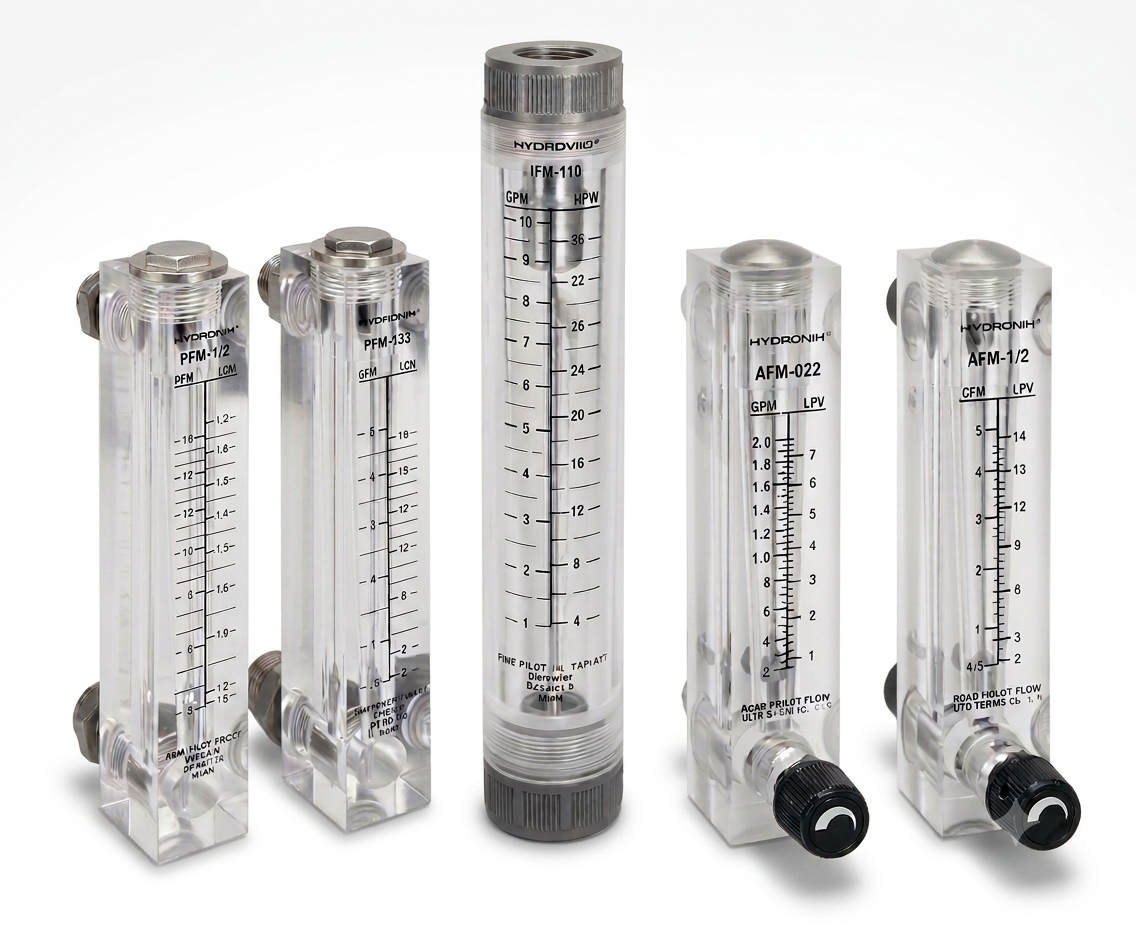

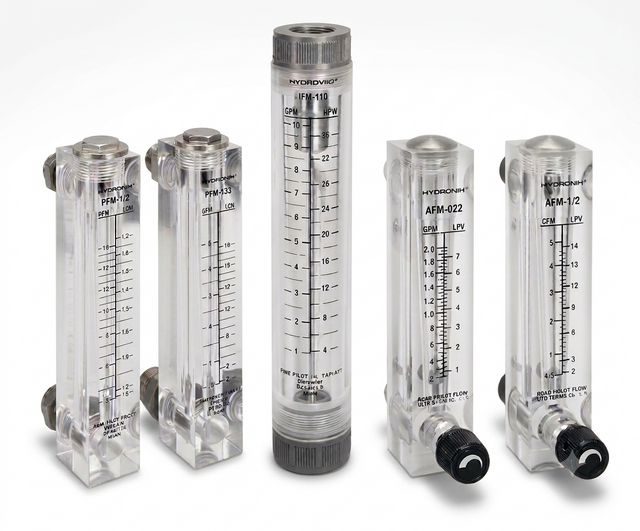

Hydronix PFM Series Flow Meter

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

Hydronix PFM Series Flow Meter deliver precise liquid flow measurement for industrial and commercial applications. Engineered for reliability and accuracy, these meters provide real-time monitoring to optimize system performance and reduce waste. They have easy-to-read scales silk-screened onto the acrylic bodies and are extremely accurate. With the attractive design and durable construction, the acrylic bodies are practically unbreakable.

Model
$35.82

Shipping calculated at checkout.

Delivery and Shipping

Orders with a total value of $100 or more qualify for free shipping. For additional information, please refer to our Shipping Policy.

Specifications

A table comparing the facets of 2 products
Facet
PFM-055
PFM-210
Calibration
Calibration
0.5~5 GPM
2~18 LPM
2~10 GPM
4~40 LPM
Max Pressure
Max Pressure
120 psi (827 KPA)
120 psi (827 KPA)
Accuracy
Accuracy
+/-5%
+/- 5%
Max Temperature
Max Temperature
120°F (49°C)
120°F (49°C)
Materials
Materials
Body: Acrylic, Plastic
O-Rings: EPDM
Connections: Polypropylene
Guide: 304 Stainless Steel
Float: 304 Stainless Steel
Body: Acrylic, Plastic
O-Rings: EPDM
Connections: Polypropylene
Guide: 304 Stainless Steel
Float: 304 Stainless Steel

Support Materials
