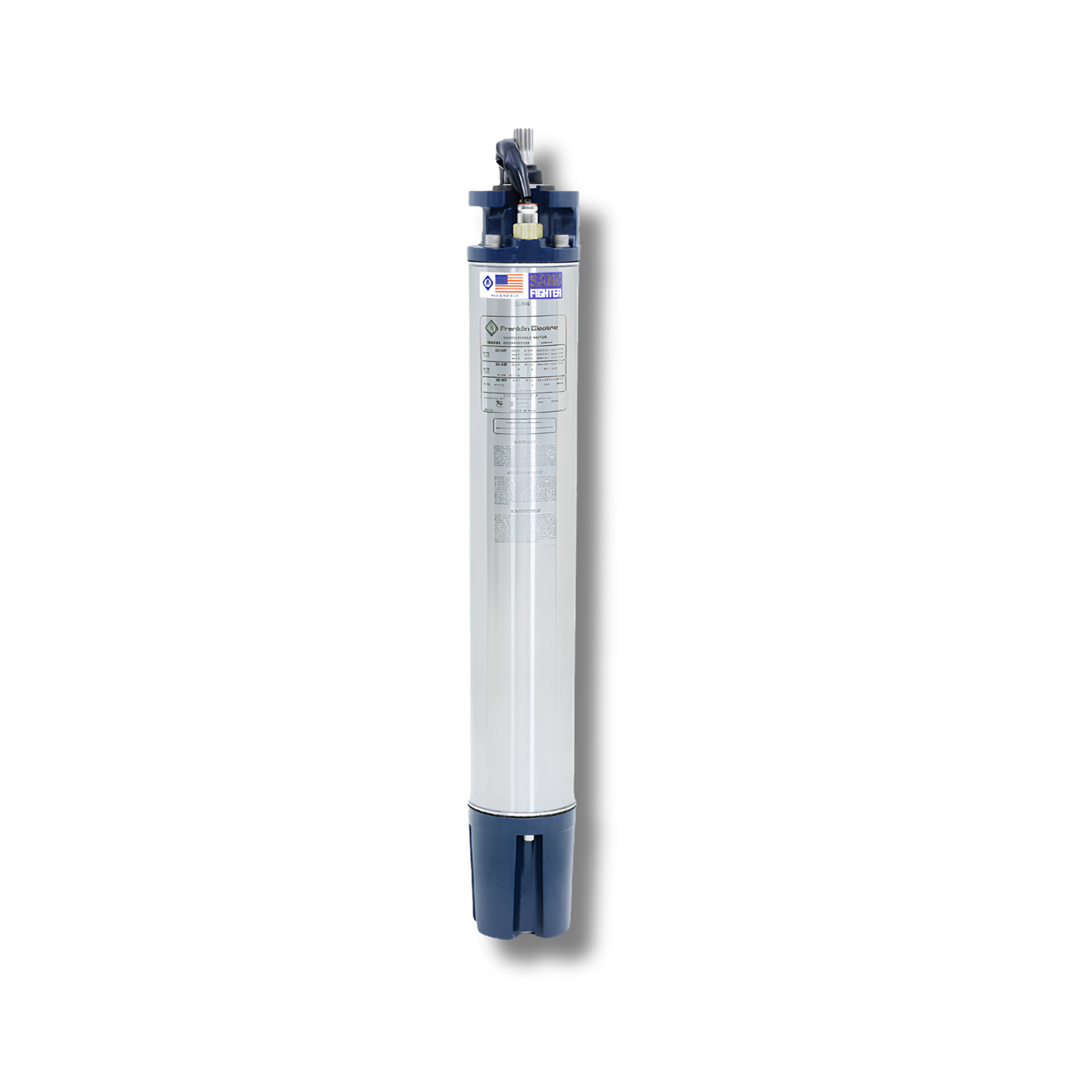

Franklin Three Phase 6-Inch Encapsulated Submersible Motor

(FOR STOCK AVAILABILITY OR LEAD TIME,  PLEASE CALL +1 (800) 419-5707)

The Franklin Three Phase 6-Inch Encapsulated Submersible Motor is built for high-capacity water well applications that demand exceptional performance, durability, and reliability. Ideal for deep well installations, irrigation systems, community water supplies, and industrial operations, these rugged motors are engineered to deliver consistent high flow rates and pressures. Franklin’s 6-inch motors are designed to provide long-lasting service while minimizing downtime and ensuring dependable operation in the most demanding environments.

Type: Sandfighter

Phases: Three-Phase

Thrust Bearing Rating: 3500 lb

Lead Length: 13 ft

Motor: Encapsulated

Materials of Construction

Motor Shaft End – Material: 304 SS

Thrust Bearing: Kingsbury Type

Seal Material: Silicon Carbide

Seal: Mechanical Seal

Lead Insulation Material: Overmolded

Diaphragm Material: Nitrile Rubber (NBR)

Motor Bottom End Bell Material: Cast Iron with E-Coat Paint

Motor Fill Solution (Water Soluble / Non Toxic):  Yes

Motor Fill Solution: FES91

Motor Top End Bell Material: Cast Iron with E-Coat Paint

Shaft Slinger Material: Nitrile Rubber (NBR)

Stator Ends Material: Carbon Steel

Stator Fill: Resin

Stator/ Motor Shell Material: 300 Series SS

Winding Material: Copper

Discharge: Threaded – FNPT

Discharge Diameter: 2”

Impeller Diameter: 6.25"

Suction Diameter: 2"

Suction: Threaded - FNPT

Certification

ANSI/NSF Standard 61
