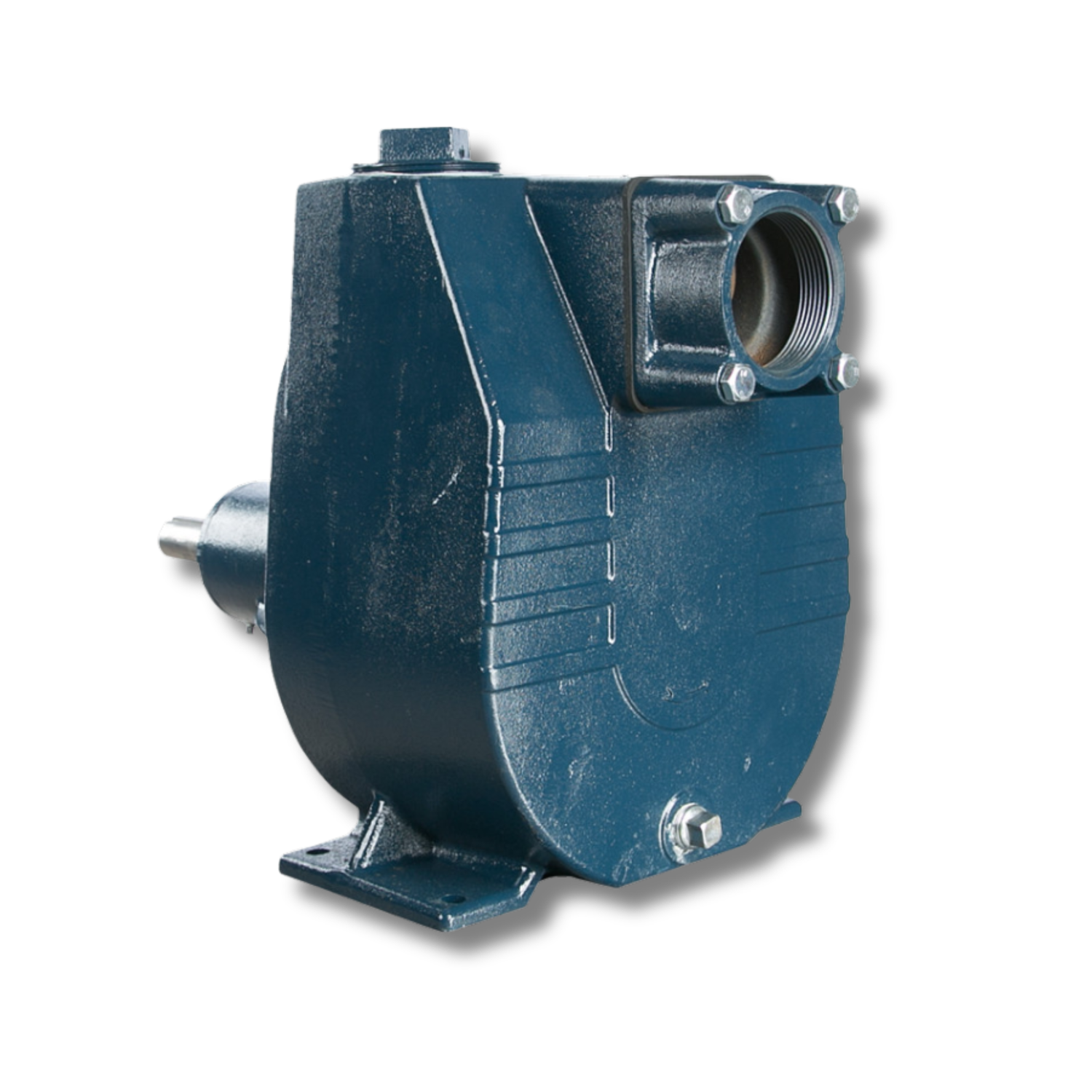

Franklin 90230002 – FMIT-20 Frame Mount Self-Priming Pump
(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)
The Franklin 90230002 – FMIT-20 Frame Mount Self-Priming Pump is reliable surface pump designed for demanding applications including irrigation, construction, mining, commercial, municipal, and light industrial use. Built with a durable cast iron body and impeller, a stainless steel shaft, and a high-quality mechanical seal, the FMIT Series delivers dependable performance and long service life. Its self-priming design provides efficient operation and easy startup, making it an ideal solution for tough water transfer and pumping applications.
Materials of Construction
Pump Body Material: Cast Iron
Impeller: Semi-open
Impeller Material: Cast Iron
Discharge Material: Cast Iron
Seal Material: Carbon/Ceramic, FKM, 300 series S.S.
Seal: Mechanical Seal
Pump Shaft Material: Stainless Steel 316
Suction Material: Cast Iron
Discharge: Threaded – FNPT
Discharge Diameter: 2”
Impeller Diameter: 6.25"
Suction Diameter: 2"
Suction: Threaded - FNPT
