Brand:   Franklin  |  SKU: 5870205503C

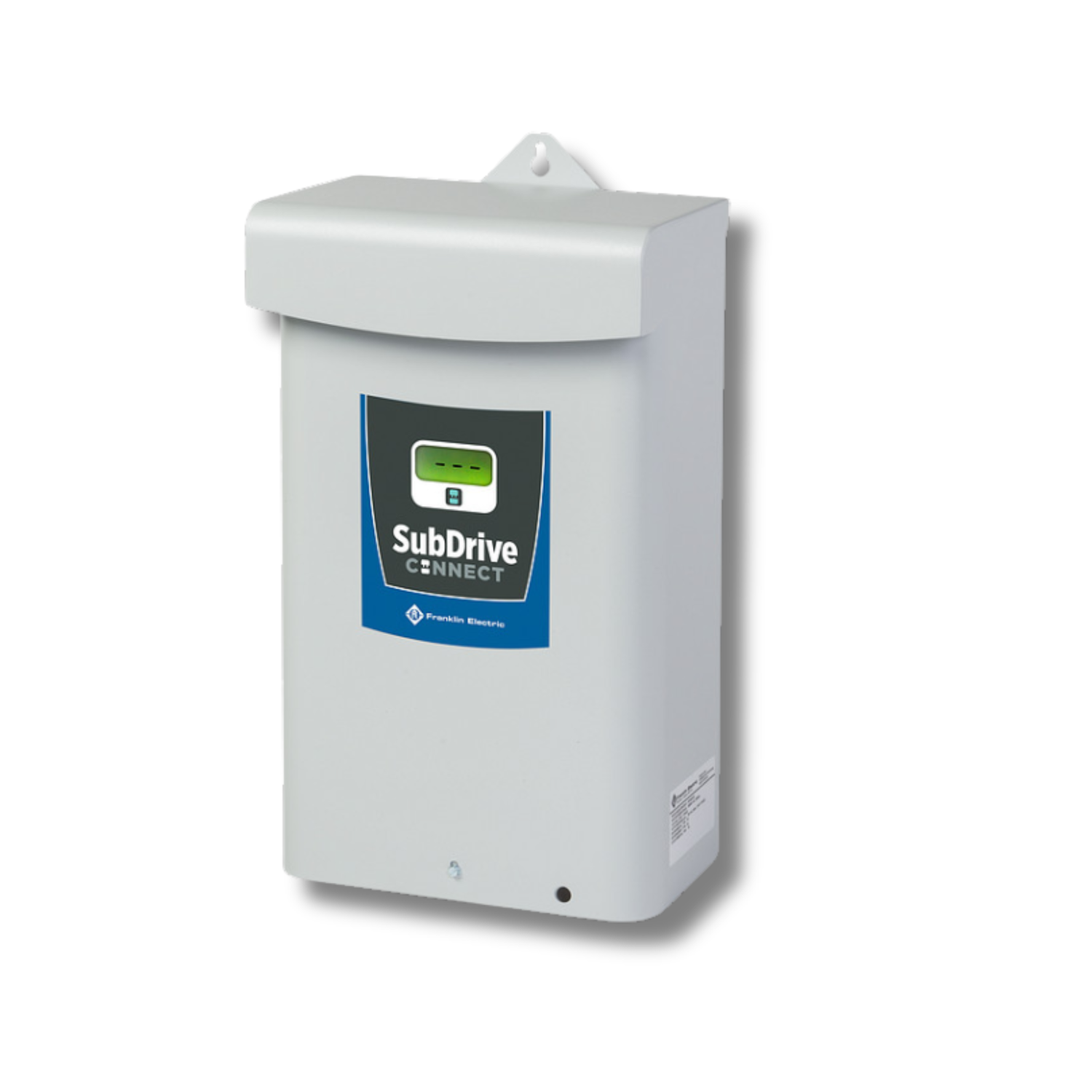

Franklin 5870205503 C SubDrive Connect Variable Frequency Drive

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Franklin 5870205503 C SubDrive Connect Variable Frequency Drive is an advanced variable speed technology to maintain consistent water pressure for submersible well pump systems. Designed for reliable and efficient performance, it automatically adjusts pump operation to match water demand, improving comfort, reducing energy consumption, and extending system life. Ideal for residential and light commercial applications, the SubDrive 50 Connect N3R delivers dependable pressure control and enhanced water system performance.

Certification

ANSI/NSF Standard 61

$3,967.60

✓ This product qualifies for Free Shipping

Delivery and Shipping

Orders with a total value of $100 or more qualify for free shipping. For additional information, please refer to our Shipping Policy.

Specifications

A table comparing the facets of 1 products
Facet
Frequency
Frequency
60 Hz
Hz
Hz
50/60 Hz
Phase
Phase
Single-Phase
Input Power Max
Input Power Max
7200 W
Max Output Amps
Max Output Amps
(1 Phase 3 Wire) 17.0 @ 230VAC, Amps (3 Phase) 17.8 @ 230 VAC
Output Voltage
Output Voltage
1 Phase, 3 Wire (VAC) 230 VAC, 3 Phase (VAC) 230 VAC
Max Temperature
Max Temperature
149 °F
Weight
Weight
31.06 lb
