Brand:   Franklin  |  SKU: 97060150306

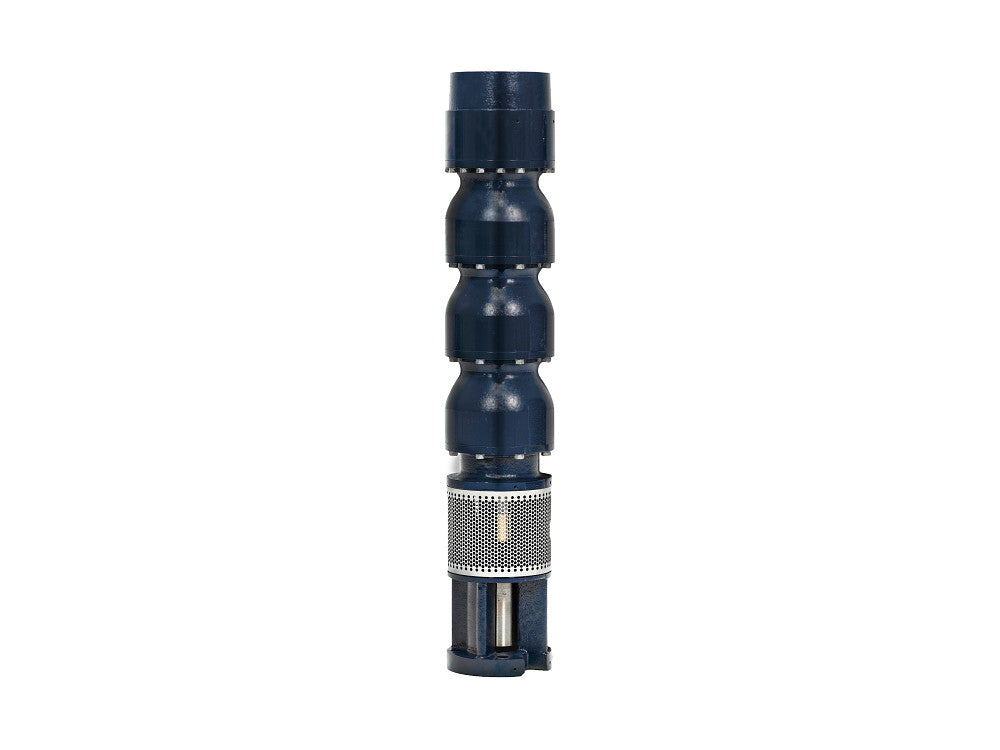

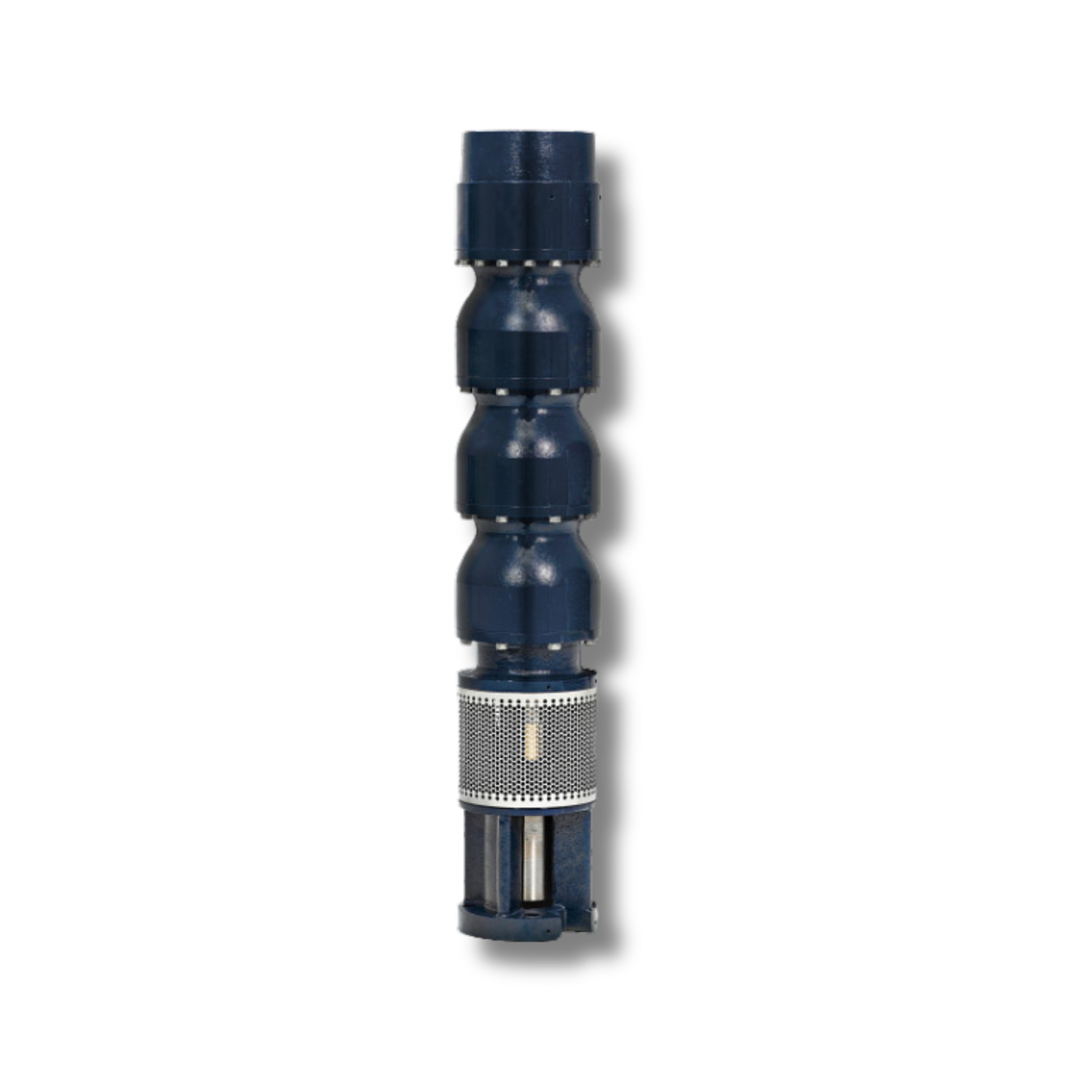

Franklin 5 – 9-Inch STS Series Submersible Turbine Pump

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Franklin 5 – 9-Inch STS Series Submersible Turbine Pump is high-performance water delivery across irrigation, agricultural, industrial, commercial, and municipal applications. Available in 5", 6", 8", and 9" models, these pumps deliver flow rates from 60 to 1600 GPM with total dynamic head up to 2300 feet. Built with premium materials—including ductile iron components, 304 stainless steel impellers, and heavy-duty bearings—these pumps ensure durability, efficiency, and long service life in demanding environments.

Materials of Construction

Impeller: Axial

Impeller Material: Stainless Steel AISI 304

Check Valve: No

Discharge Material: Ductile Iron

Intake Screen Material: 300 Series

Fasteners Material: 300 Series

Top Bearing Material: Bronze

Coupling Material: Stainless Steel AISI 416

Cable Guard Material: 300 Series

Bowl Material: Ductile Iron

Intermediate Bearing Material: Rubber

Motor Adapter Bracket Material: Ductile Iron

Pump Shaft Material: Stainless Steel AISI 416

Series

$5,186.81

✓ This product qualifies for Free Shipping

Delivery and Shipping

Orders with a total value of $100 or more qualify for free shipping. For additional information, please refer to our Shipping Policy.

Specifications

A table comparing the facets of 4 products
Facet
97060150306
97060225005
97060225304
97060325304
Model
Model
150STS6
225STS6
225STS6
HP
HP
60Hz 15 hp
60Hz 15 hp
60Hz 10 hp
60Hz 15 hp
Phase
Phase
325STS6
Flow (single unit)
Flow (single unit)
150 gpm
225 gpm
225 gpm
325 gpm
Dimensions
Dimensions
Motor Length: 28", Pump Length: 44.46"
Motor Length: 28", Pump Length: 39.71"
Motor Length: 25.4", Pump Length: 34.96"
Motor Length: 28", Pump Length: 34.96"
Weight
Weight
113 lb
94 lb
83 lb
85 lb
