Brand:   Keyence  |  SKU: FD-Q10C

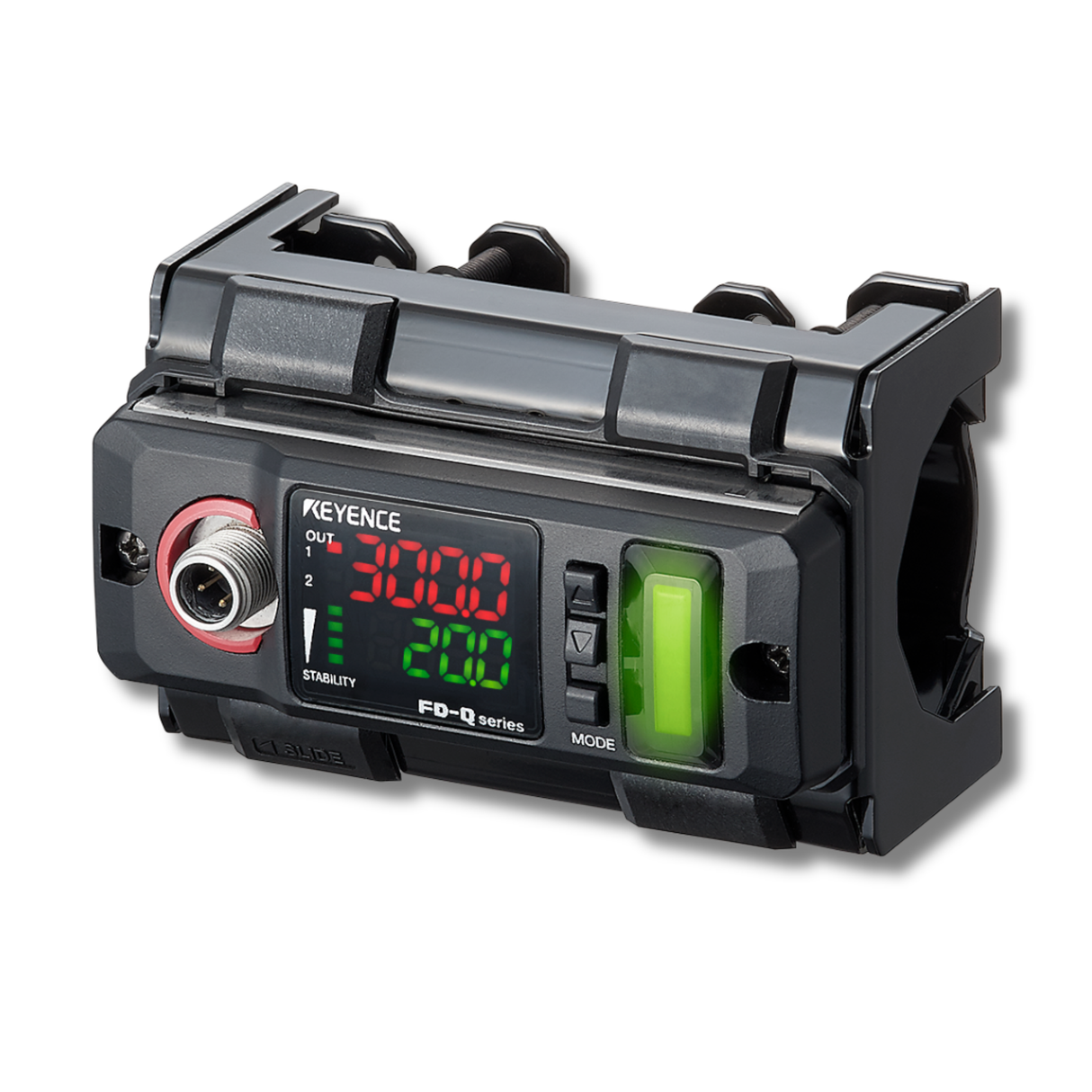

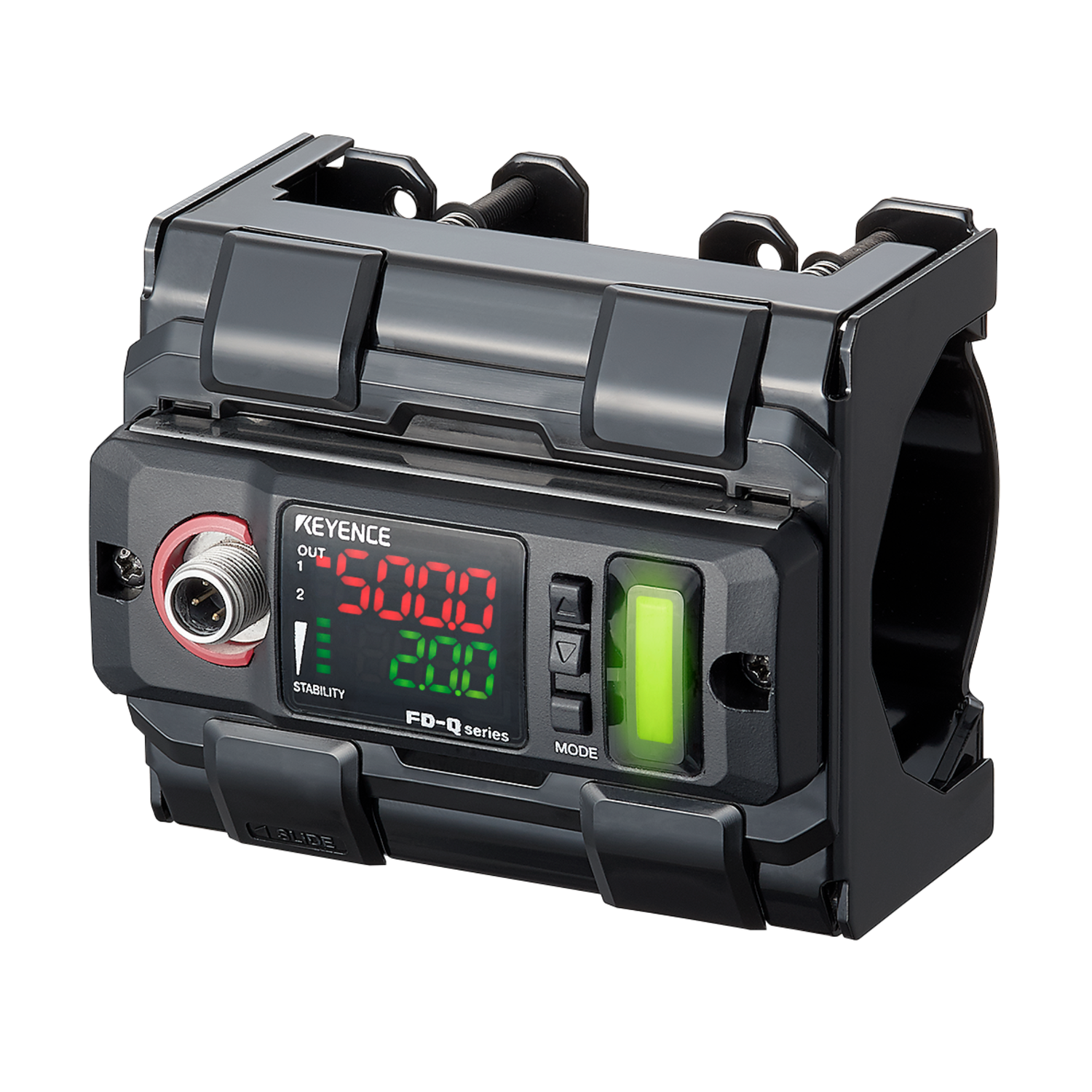

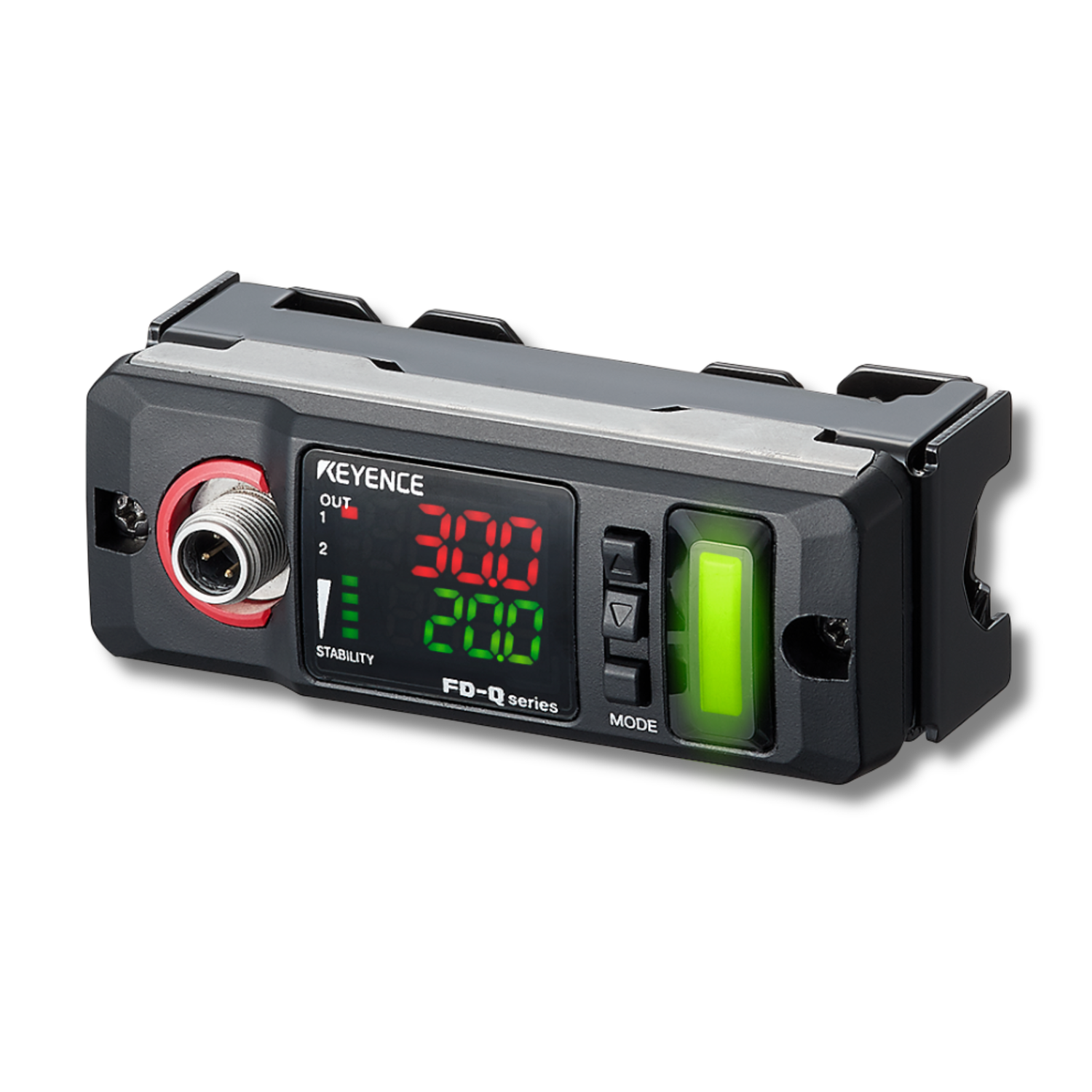

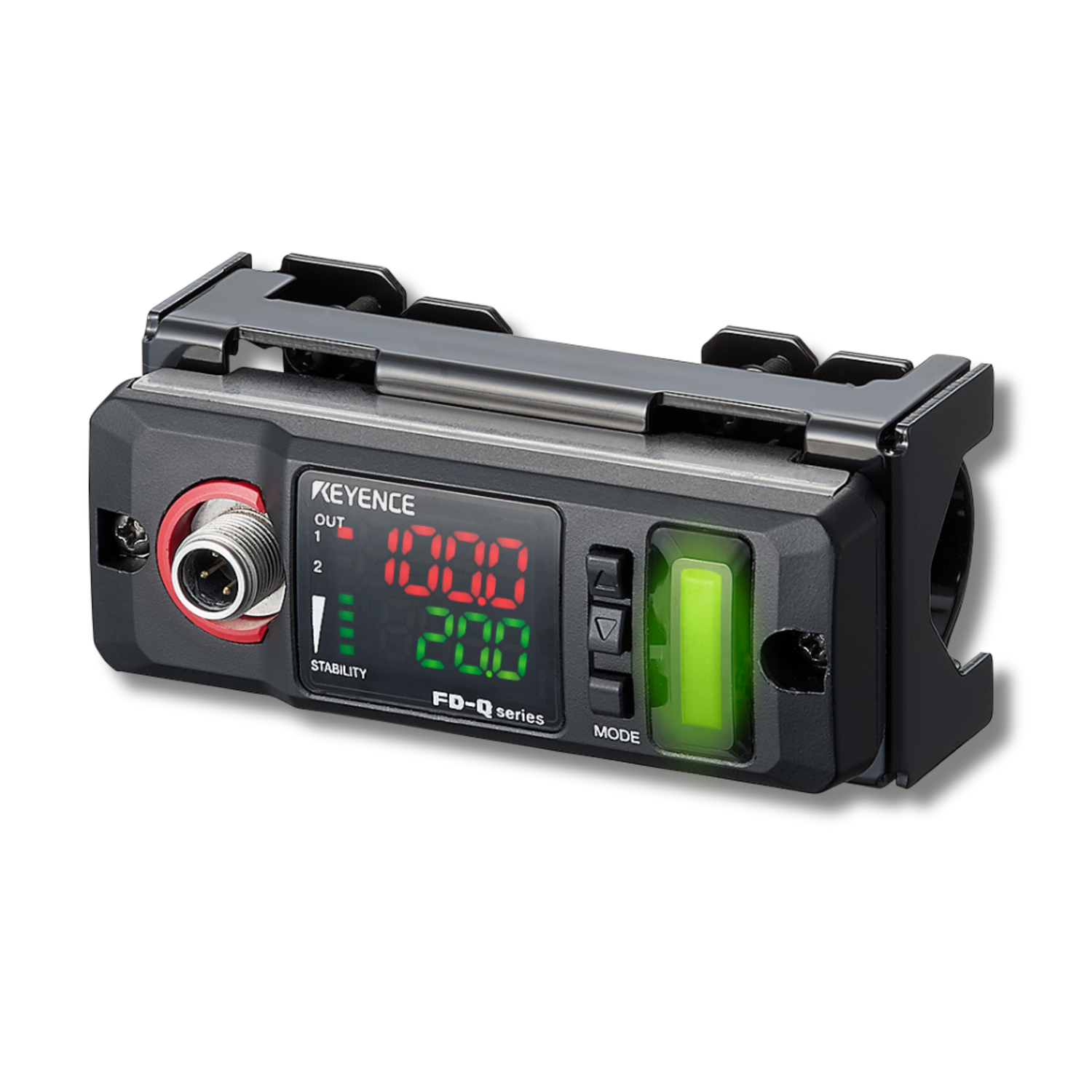

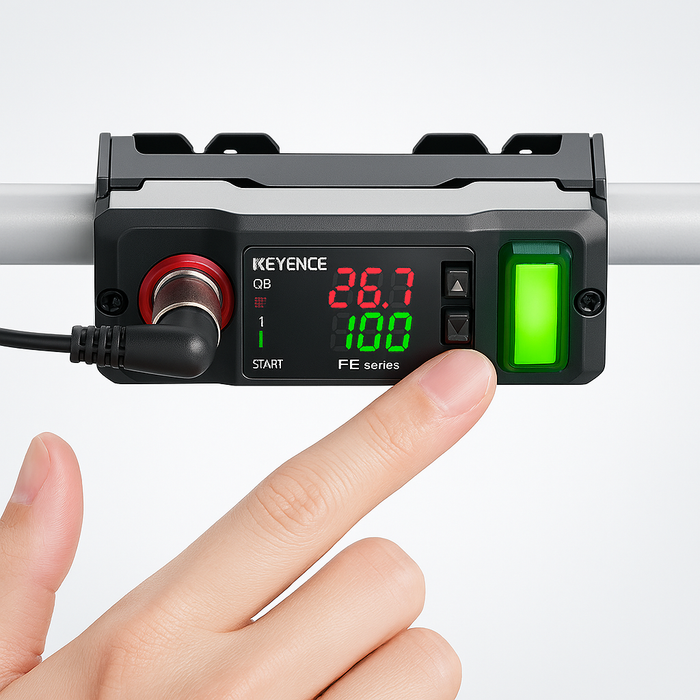

Keyence Clamp-On Flow Sensor (FD-Q Series)

(FOR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

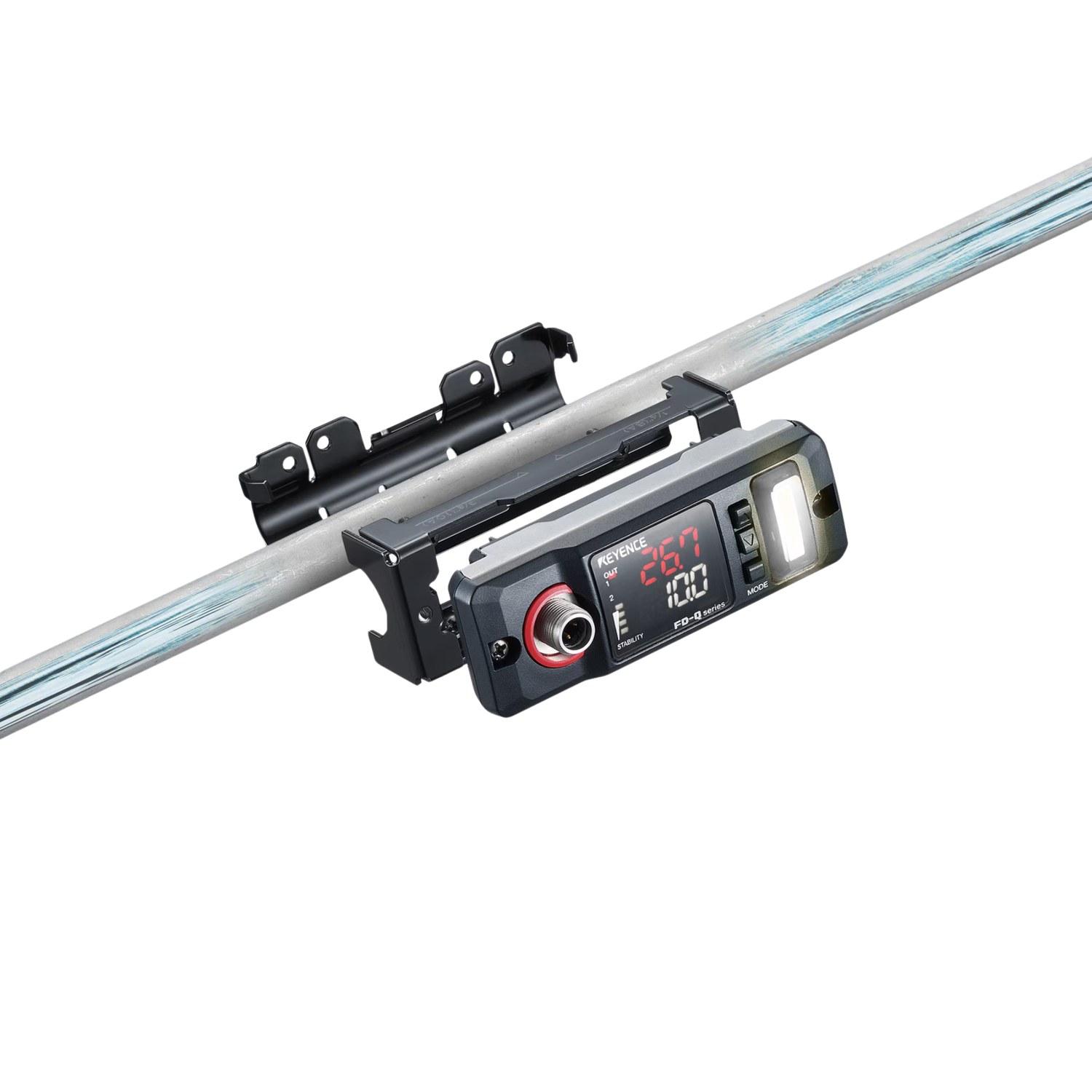

Keyence FD-Q series of digital ultrasonic flow sensors can be mounted quickly and easily with just a screwdriver, requiring no pipe modifications. This clamp-on flow sensor is designed to measure flow rate without any modifications to the pipe. It can detect a variety of of liquids, such as water, oil and chemicals. Suitable for both metal and resin pipes, this flow sensor offers easy installation, low maintenance and can be used in a wide range of applications.

Model
$929.84

✓ This product qualifies for Free Shipping

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for free shipping. For additional information, please refer to our Shipping Policy.

Features

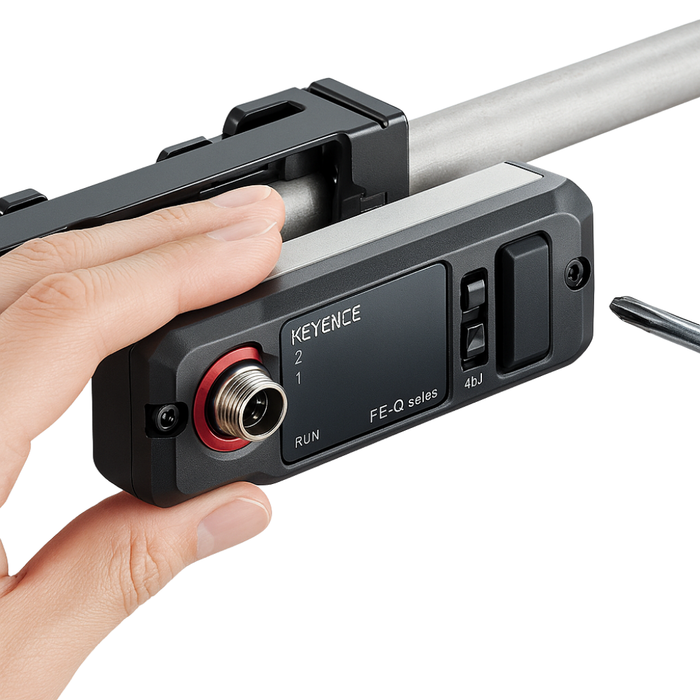

  • Easy Installation

    - No need for special tools or parts
    - Mounts quickly without pipe modification
    - No machine downtime while installing

  • Easy To Integrate Into Existing Systems

    - Compatible pipe sizes include 1/4"-2"
    - Detect water, oil, chemicals, and more
    - Detect through metal and resin pipes

  • Innovative Design Prevents Common Issues

    - Prevents pressure loss caused by sensors impeding flow
    - Avoids contamination
    - No downtime for install or maintenance

Specifications

FD-Q10C
FD-Q20C
FD-Q32C
FD-Q50C
Maximum Rated Flow
Maximum Rated Flow
1/4" (8 A): 20 L/min or 3/8" (10 A): 30 L/min
1/2" (15 A): 60 L/min or 3/4" (20 A): 100 L/min
1" (25 A): 200 L/min or 1 1/4" (32 A): 300 L/min
1 1/2" (40 A): 400 L/min or 2" (50 A): 500 L/min
Supported Pipe Diameter
Supported Pipe Diameter
1/4" (8 A), ø13 to ø16 (mm) or 3/8" (10 A), ø16 to ø18 (mm)
1/2" (15 A), ø18 to ø23 (mm) or 3/4" (20 A), ø23 to ø28 (mm)
1" (25 A), ø28 to ø37 (mm) or 1 1/4" (32 A), ø37 to ø44 (mm)
1 1/2" (40 A), ø44 to ø52 (mm) or 2" (50 A), ø52 to ø64 (mm)
Supported Pipe Materials
Supported Pipe Materials
Metal pipe/Resin pipe
Metal pipe/Resin pipe
Metal pipe/Resin pipe
Metal pipe/Resin pipe
Zero Cut Flow Rate
Zero Cut Flow Rate
1.0 L/min (Default)
2.5 L/min (Default)
5 L/min (Default)
25 L/min (Default)
Weight
Weight
Approx. 340 g (including mounting bracket)
Approx. 400 g (including mounting bracket)
Approx. 530 g (including mounting bracket)
Approx. 640 g (including mounting bracket)

Support Materials

FD-Q Series Clamp-On Flow Sensor Brochure
FD-Q10C Datasheet
FD-Q20C Datasheet
FD-Q32C Datasheet
FD-Q50C Datasheet
