Brand:   Boshart Industries  |  SKU: CSS-075

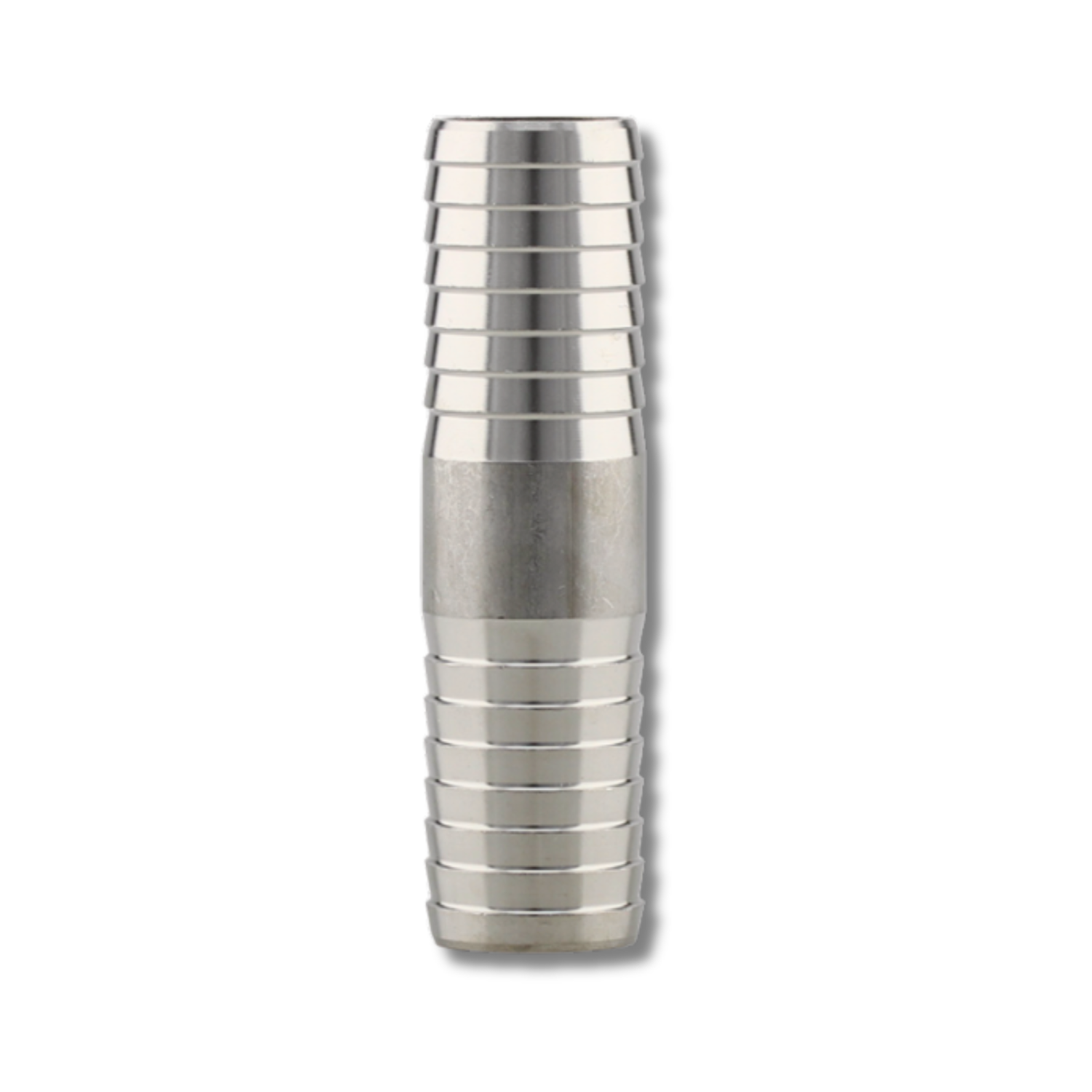

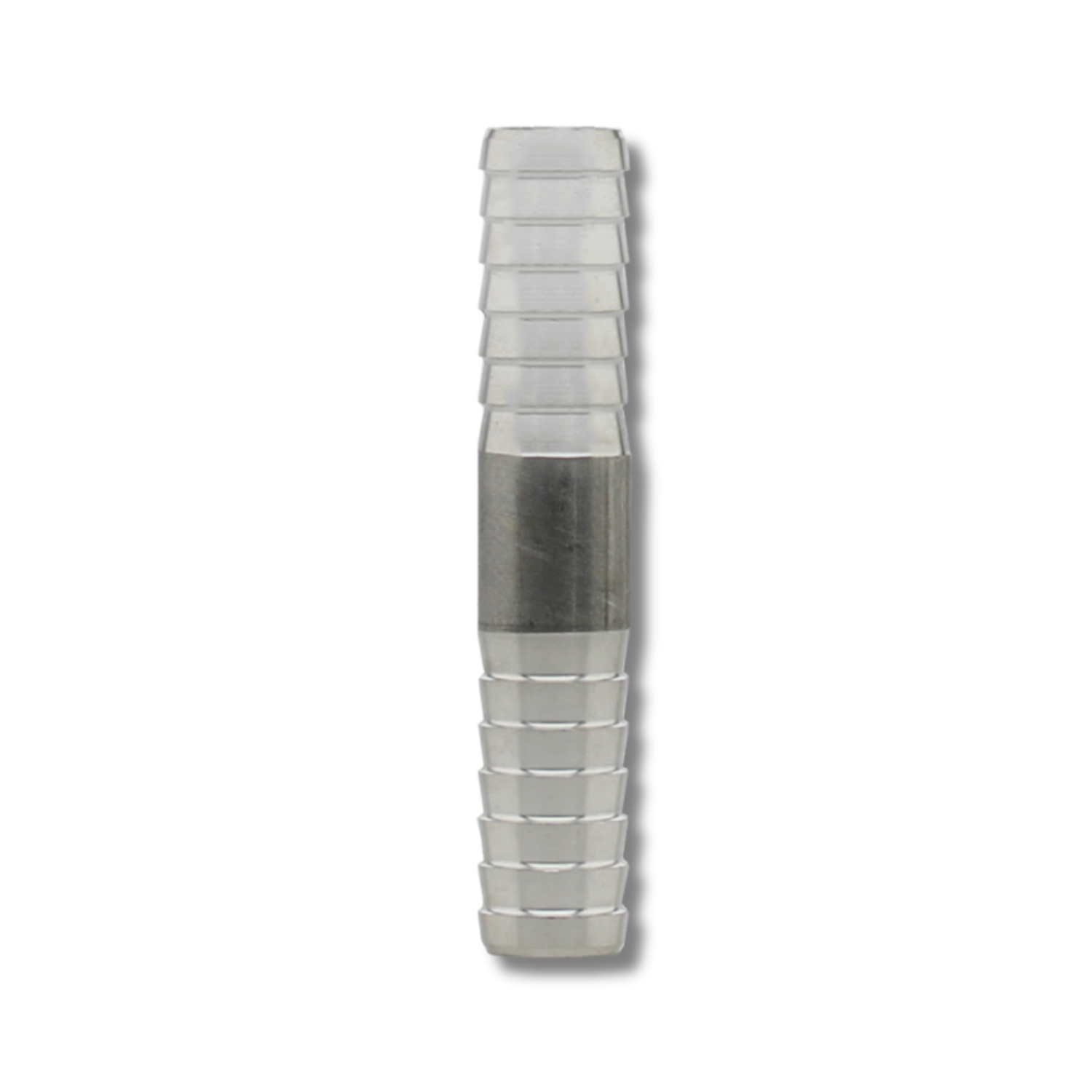

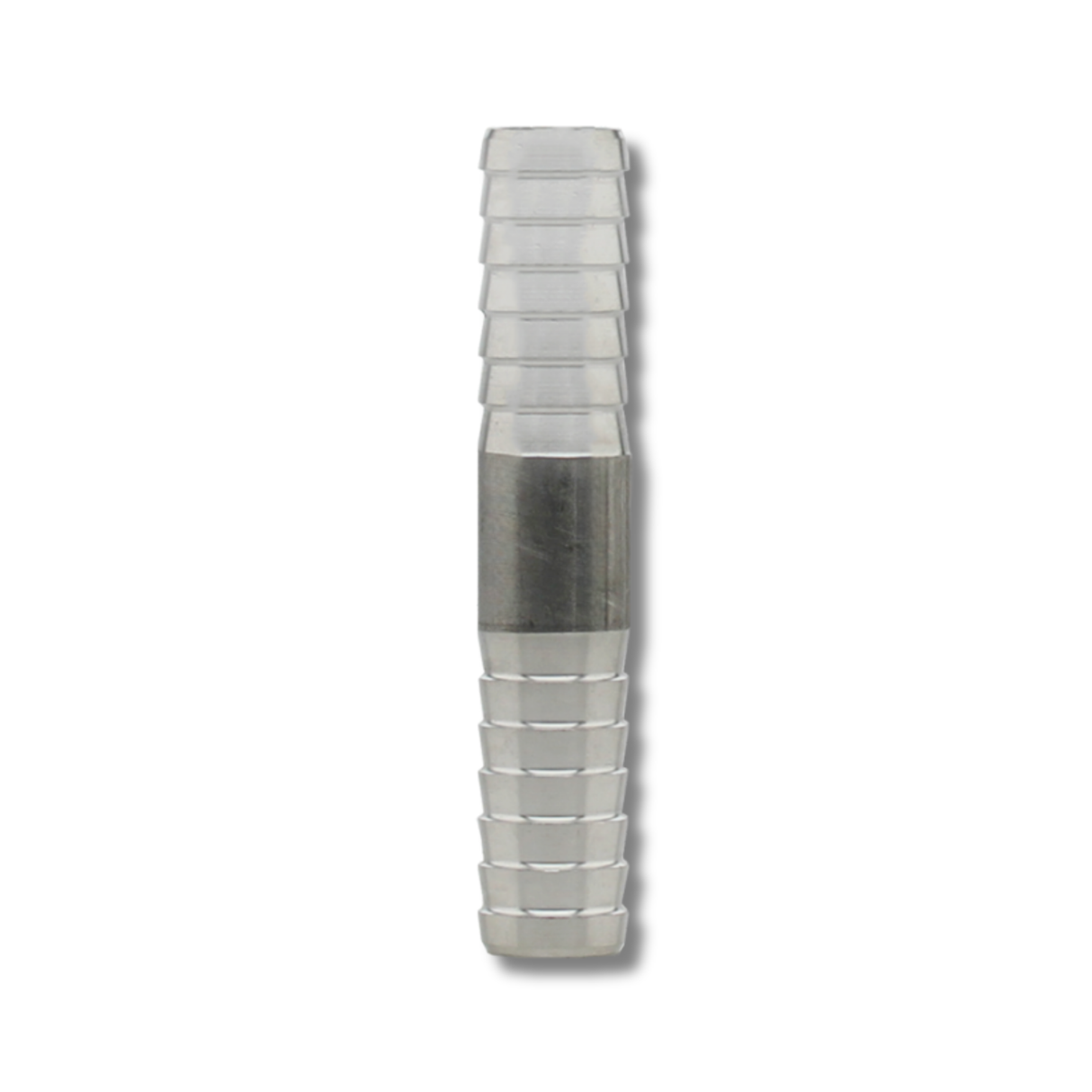

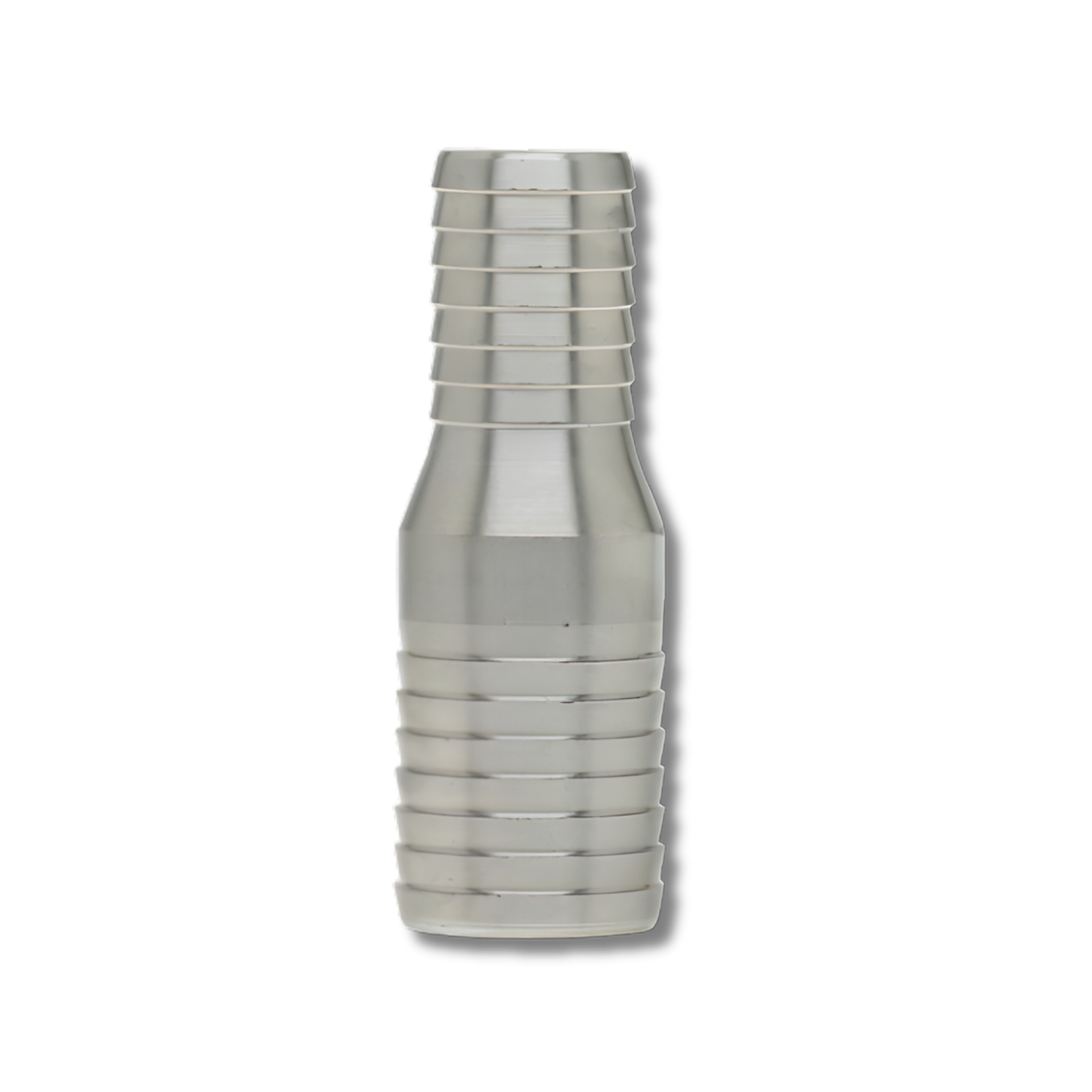

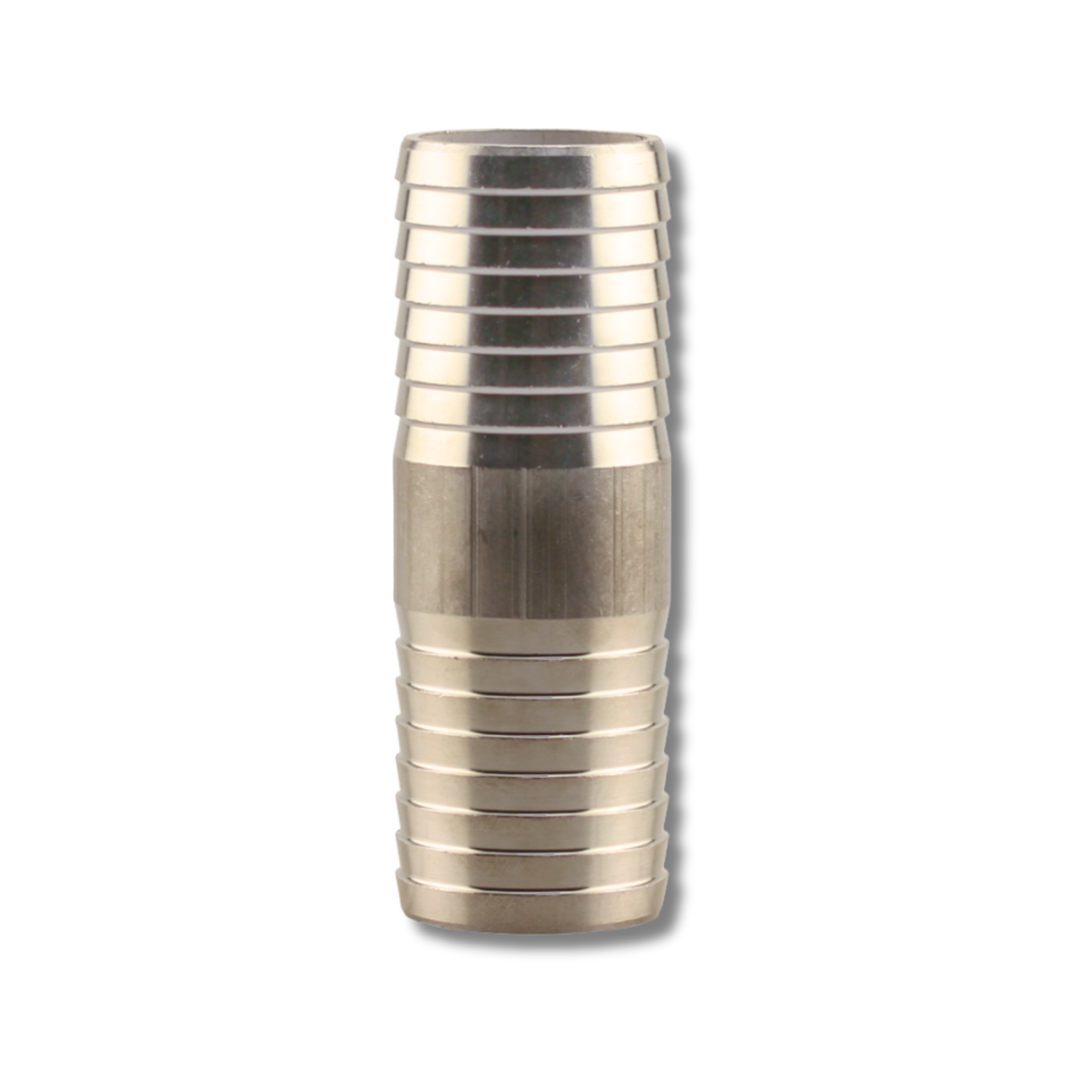

Boshart Industries CSS Series Stainless Steel Insert Fittings Insert Coupling

(FOR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Boshart Industries CSS Series Stainless Steel Insert Fittings Insert Coupling is manufactured from durable 304 stainless steel and designed for reliable, high‑flow performance. Featuring a smooth internal channel, it minimizes friction loss to maximize flow rates and pumping efficiency. Suitable for a variety of insert applications, this coupling is NSF / ANSI 372 certified and lead‑free.

Model

$5.37

Shipping calculated at checkout.

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for free shipping. For additional information, please refer to our Shipping Policy.

Specifications

CSS-075
CSS-100
CSS-125
CSS-150
CSS-150-125
CSS-200
Size
Size
3/4"
1"
1-1/2"
1-1/2"
1-1/2" x 1-1/4"
2"
Fitting Type
Fitting Type
Coupling
Coupling
Coupling
Coupling
Coupling
Coupling
Number of Barbs
Number of Barbs
6.00
7.00
7.00
9.00
9 x 7
9
Connection Type
Connection Type
Insert
Insert
Insert
Insert
Insert
Insert
Material
Material
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
Materials
Materials
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
Dimensions
Dimensions
0.75" x 3.60" x 0.80"
1.05" x 3.95" x 1.05"
1.30" x 1.40" x 4.00
1.60" x 4.80" x 1.55"
1.55" x 4.55" x 1.55"
2.10" x 4.90" x 2.10"
Weight
Weight
0.20 lb
0.32 lb
0.54 lb
0.74 lb
0.60 lb
1.80 lb

Support Materials

Boshart Industries CSS Series Stainless Steel Insert Fittings Insert Coupling Data Sheet
