Brand:   Boshart Industries  |  SKU: 0925-05NL

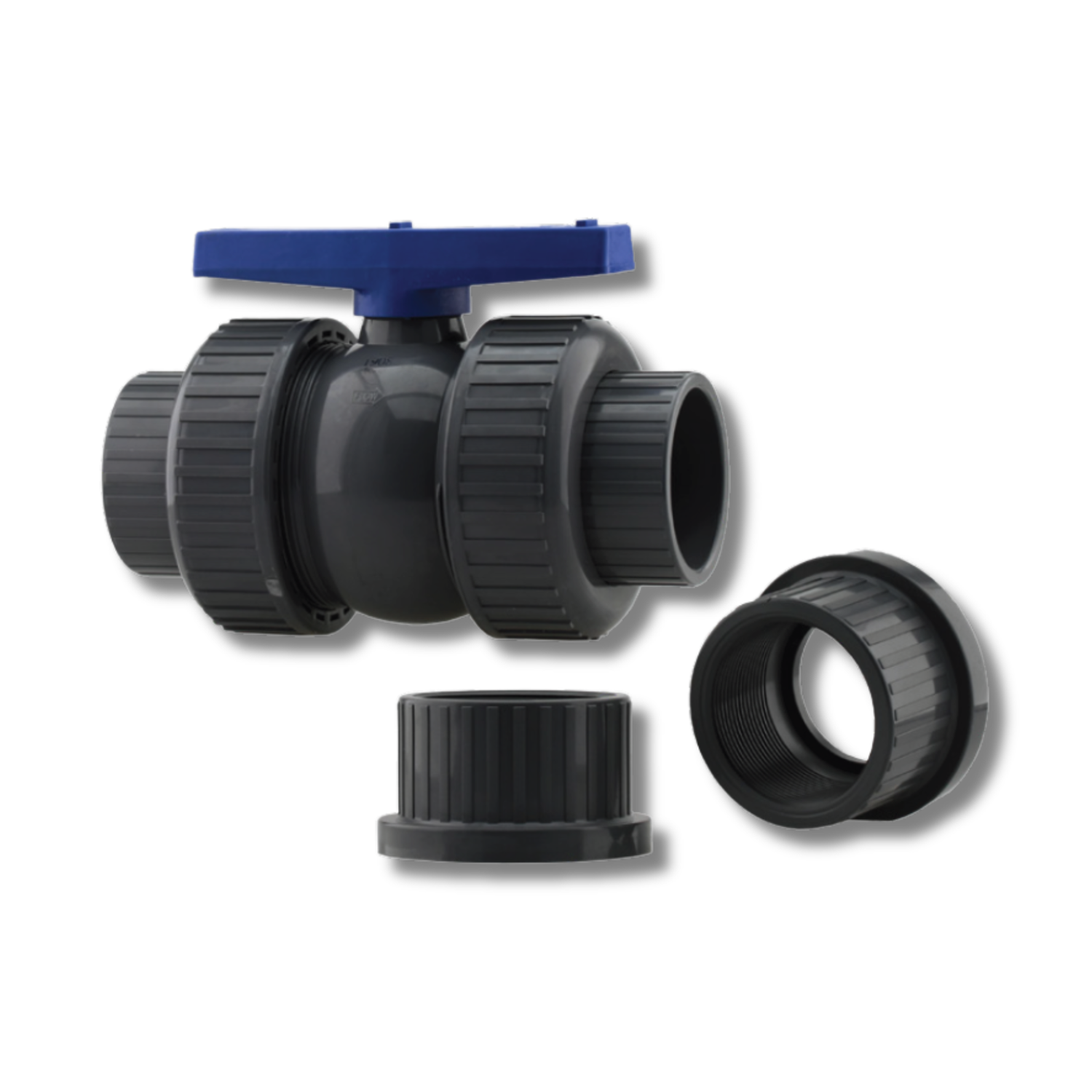

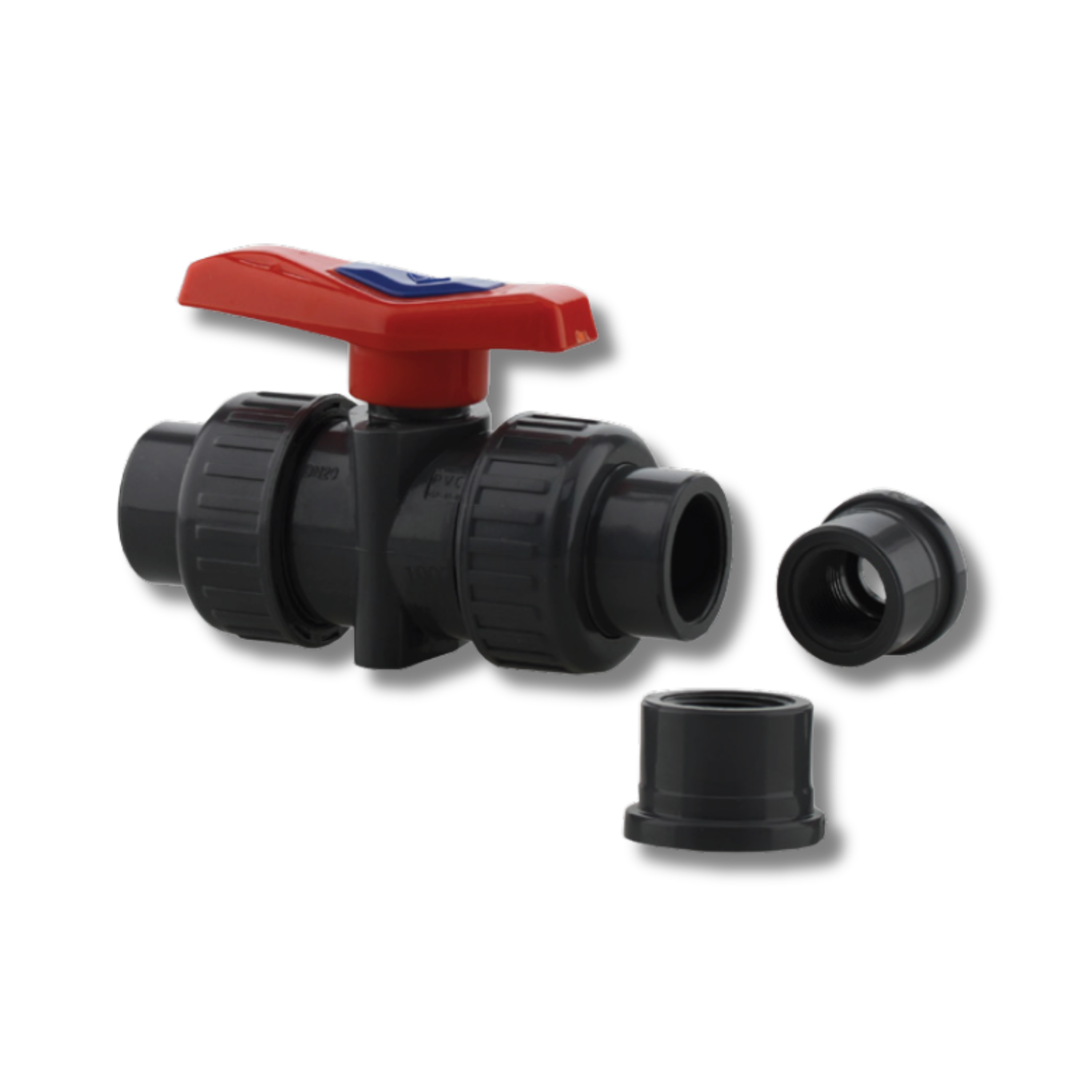

Boshart Industries 0925-NL Series PVC Blocked True Union Ball Valve

(FOR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Boshart Industries 0925-NL Series PVC Blocked True Union Ball Valve delivers reliable, no‑lead flow control for demanding plumbing and water system applications. Constructed with a durable gray PVC body compatible with Schedule 40 and 80 pipe, its double union / double block design allows for convenient in‑line maintenance without pipe removal. Rated to 150 PSI at 73°F, certified to NSF/ANSI 61 and 372.


Body: UPVC

Stem O-ring: EPDM

Stem: UPVC

Ball: UPVC

Ball Seat: PTFE

End Block O-ring: EPDM

End Block: UPVC

Union O-ring: EPDM

End Connector: UPVC

Union Nut: UPVC

Handle: ABS

Series

$12.43

Shipping calculated at checkout.

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for free shipping. For additional information, please refer to our Shipping Policy.

Specifications

0925-05NL
0925-07NL
0925-10NL
0925-12NL
0925-15NL
0925-20NL
0925-25NL
0925-30NL
0925-40NL
Size
Size
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
4"
Dimensions
Dimensions
1.83" x 1.89" x 0.81" x 4.49" x 3.07"
2.17" x 2.24" x 1.02" x 5.31" x 3.62"
2.60" x 2.60" x 1.30" x 5.83" x 3.94"
3.23" x 2.91" x 1.50" x 6.61" x 4.33"
3.86" x 3.43" x 1.57" x 6.89" x 4.76"
4.72" x 4.25" x 2.09" 8.11" x 5.79"
5.51" x 4.57" x 2.56" x 10.75" 7.09"
6.42" x 5.12" x 2.95" 11.93" x 8.82"
8.86" x 7.01" x 4.06" 13.11" x 10.94"
Weight
Weight
190 g
308 g
467 g
754 g
1067
1917 g
3667 g
4617 g
9000 g
