Brand:   Boshart Industries  |  SKU: 0827-02NL

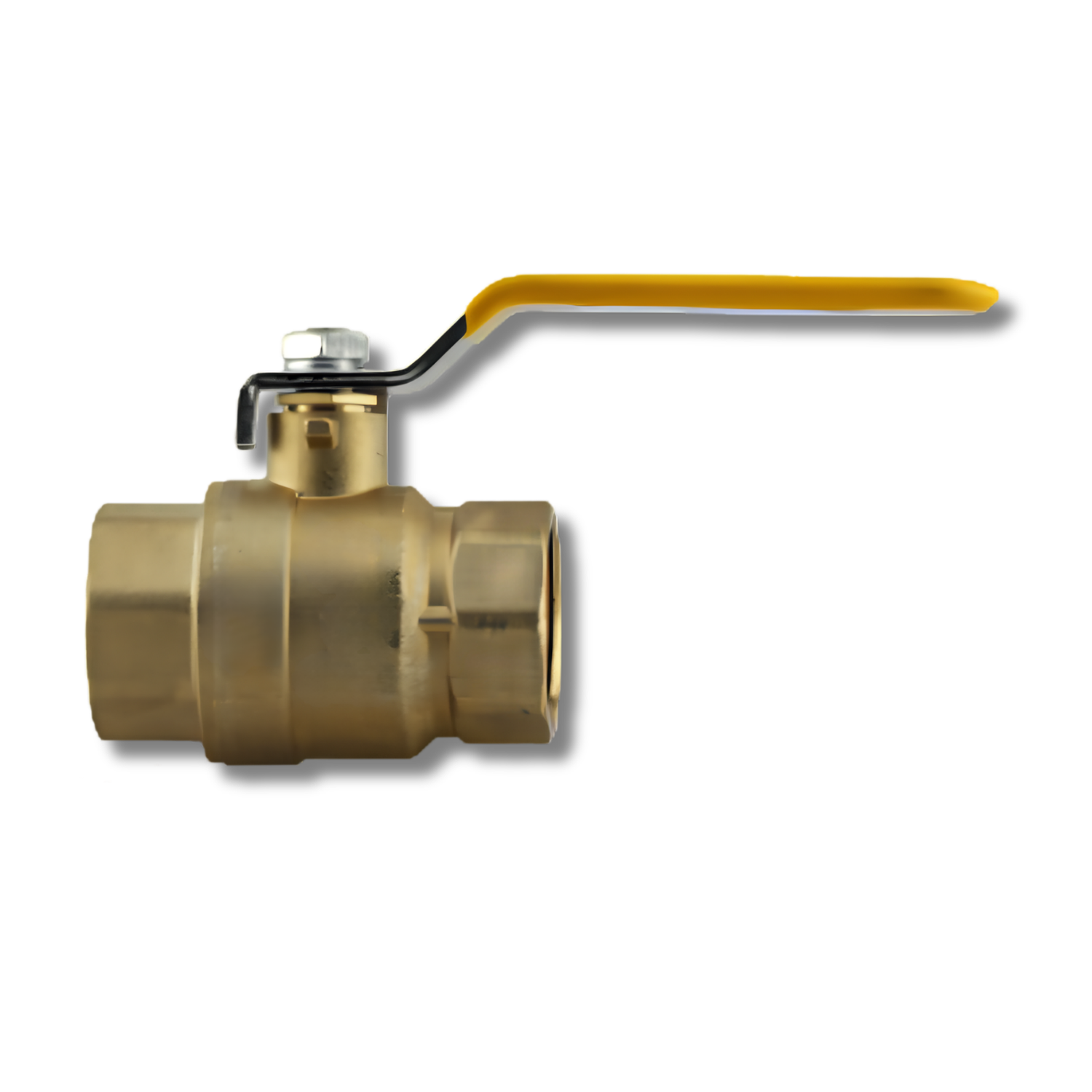

Boshart Industries 0827NL Series FPT Full Port No lead Brass Ball Valve

(FOR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Boshart Industries 0827NL Series FPT Full Port No lead Brass Ball Valve is a durable and reliable valve, low risk of corrosion, and long-lasting performance. Manufactured from brass, it is ideal for a wide range of industrial and commercial applications.



Certifications

ANSI Z21.15 & CGA 9.1: 1/2 PSIG (1/2 PSI)
ASME B16.33 & CAN/CGA 3.16:125PSIG (BRS125G / CAN3.16)
ASME B16.44 & CGA/CR91-002: 5 psig (5G)
cUPC Standard IGC 157
FM Standard 1140
No Lead
NSF / ANSI 372
NSF / ANSI 61
UL 125 (YSDT): LP- gas shutoff valves - 300 PSI
UL 1477 (YQNZ): Compressed gas shutoff valves - 300 PSI
UL 842 (MHKZ): Manual valves - 300 PSI
UL 842 (YRBX): Flammable liquid shutoff valves - 300 PSI
UL 842 (YRPV): Gas shutoff valves - 300 PSI

Model

$6.05

Shipping calculated at checkout.

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

0827-02NL
0827-03NL
0827-05NL
0827-07NL
0827-10NL
0827-12NL
0827-15NL
0827-20NL
Size
Size
1/4", Port Size: 0.39"
3/8", Port Size: 0.39"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
Handle Type
Handle Type
PVC
PVC
Design
Design
Full Port
Full Port
Connection Type
Connection Type
FPT
FPT
Temperature Range
Temperature Range
Up to 300°F (149°C)
Up to 300°F (149°C)
Max Pressure Rating
Max Pressure Rating
600 PSI CWP
600 PSI CWP
Materials
Materials
Ball Material: Stainless Steel
Seat Material: PTFE
Primary Material: Brass
Stem Packing Material: PTFE
Ball Material: Stainless Steel
Seat Material: PTFE
Primary Material: Brass
Stem Packing Material: PTFE
Dimensions
Dimensions
1.82" x 4.55" x 1.00"
2.40" x 5.24" x 1.14"
2.35" x 4.75" x 1.35"
2.75" x 5.60" x 1.55"
3.15" x 6.50" x 1.90"
4.00" x 7.90" x 2.40"
4.80" x 9.06" x 2.76"
5.31" x 9.37" x 3.54"
Weight
Weight
0.31 lb
0.42 lb
0.47 lb
0.72 lb
1.07 lb
1.99 lb
2.65 lb
3.81 lb

Support Materials

Boshart Industries 0827NL Series FPT Full Port No lead Brass Ball Valve Data Sheet
