Brand:   Hydronix  |  SKU: MRH-530-2

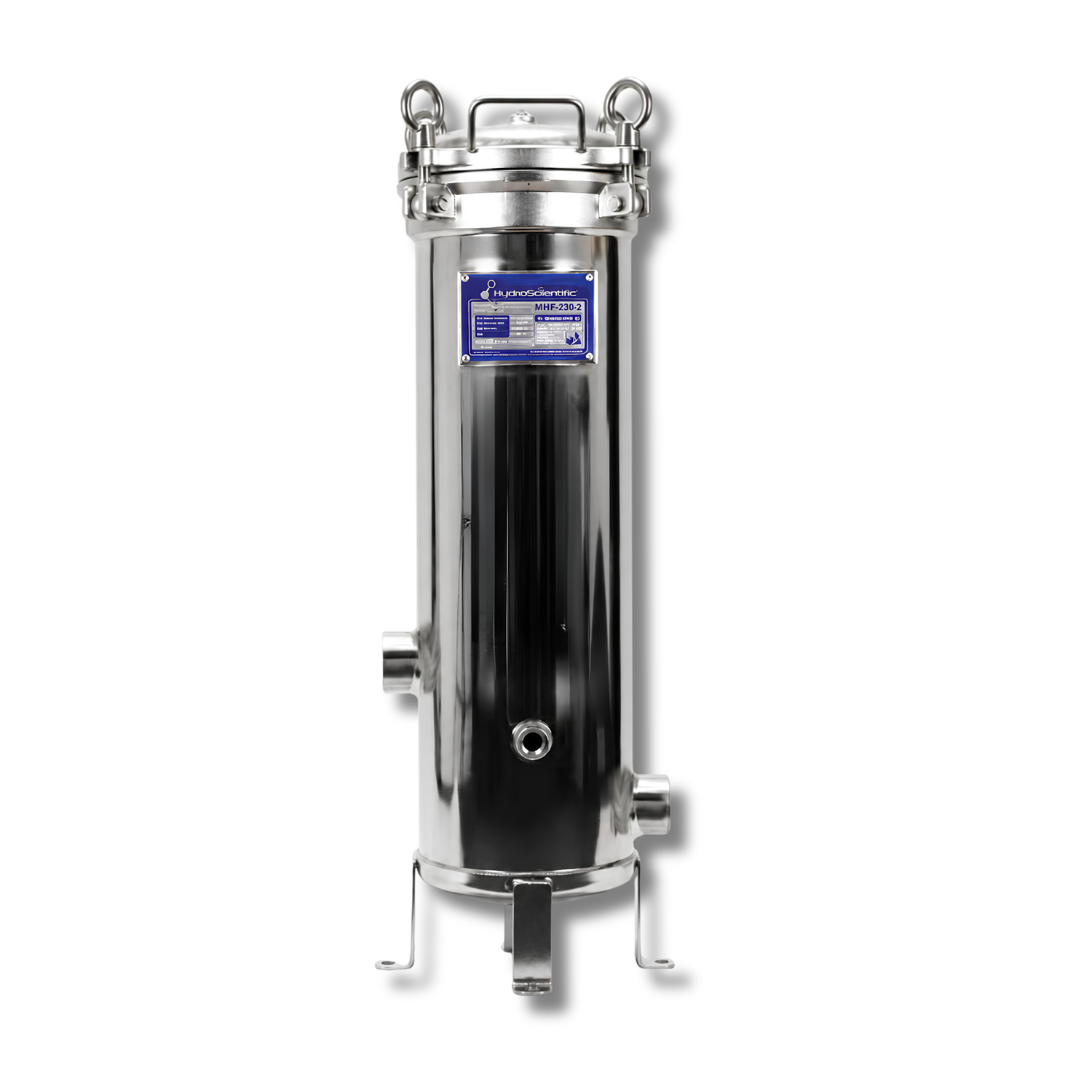

Hydronix HydroScientific™ MRH Series Stainless Steel Filter Housing

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

Hydronix HydroScientific™ MRH Series Stainless Steel Filter Housing are ideal for most industrial/commercial applications. With the welded leg design as a standard (not ”optional”) feature, we eliminate the added expense to your application. MRH Swing Bolt Multi Round Filter Housings are commonly used for pre-filtration for Reverse Osmosis (RO) systems, food service, car washes, agriculture, and many other uses. Made with a high-grade 304 or 316 Stainless Steel as standard and accept a wide range of filter cartridges.

Certification

NSF/ANSI 61/CAN61

NSF/ANSI 372

Model
$2,866.67

✓ This product qualifies for Free Shipping

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for free shipping. For additional information, please refer to our Shipping Policy.

Specifications

MRH-530-2
MRH-730-2
MRH-740-2
Maximum Operating Temperature
Maximum Operating Temperature
300 °F (146 °C)
300 °F (146 °C)
300 °F (146 °C)
Max Pressure
Max Pressure
150 psi at 300 °F (10.3 bar at 149°C)
150 psi at 300 °F (10.3 bar at 149°C)
150 psi at 300 °F (10.3 bar at 149°C)
Max Flow
Max Flow
105 gpm
397 lpm
24 m³/hr
147 gpm
556 lpm
33 m³/hr
196 gpm
742 lpm
45 m³/hr
Size
Size
30"
30"
40"
Ports
Ports
2" FNPT
2" FNPT
2" FNPT
Drains
Drains
3/4" MNPT
3/4" MNPT
3/4" MNPT
Gauge Port
Gauge Port
1/4" FNPT
1/4" FNPT
1/4" FNPT
No. of Cartridges
No. of Cartridges
5
7
7
Materials
Materials
304 or 316 Stainless Steel
Zinc Plated Steel
EPDM -FRA Grade (Viton, Silicone, and EPR Options)
304 or 316 Stainless Steel
Zinc Plated Steel
EPDM -FRA Grade (Viton, Silicone, and EPR Options)
304 or 316 Stainless Steel
Zinc Plated Steel
EPDM -FRA Grade (Viton, Silicone, and EPR Options)

Support Materials

Hydronix HydroScientific™ MRH Series Stainless Steel Filter Housing Data Sheet
