Brand:   Hydronix  |  SKU: BW-4040

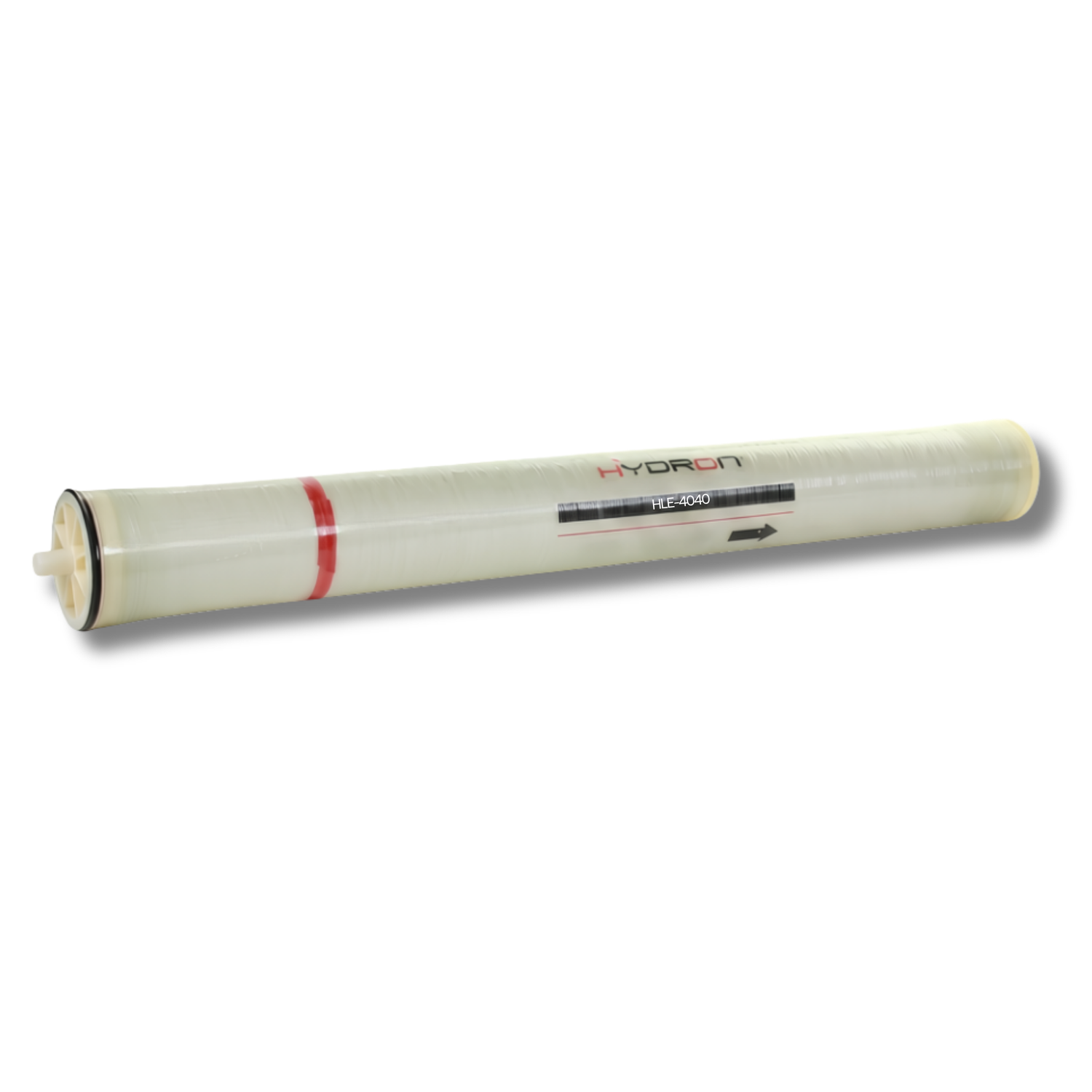

Hydronix BW/HLE Hydron Commercial Membranes

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

Hydronix BW/HLE Hydron Commercial Membranes, with their hard-shell fiberglass exterior, provide outstanding performance for Commercial systems. HYDRON Membranes are manufactured in a State-of-the-Art, ISO-9001-2000 certified automatic rolling facility, which provides you with a precise and advanced membrane element.

HYDRON Commercial Membrane Elements can be used in a variety of mid-sized commercial applications, such as car wash, bottling, manufacturing, water storage, food processing, and many other applications where a reliable, high-performance membrane is needed.

Certification

NSF/ANSI 61

Model
$299.70

✓ This product qualifies for Free Shipping

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for free shipping. For additional information, please refer to our Shipping Policy.

Specifications

BW-4040
HLE-4040
Type
Type
Polyamide Compound
Polyamide Compound
Applied Pressure
Applied Pressure
225 psi (15.5 bar)
100 psi (6.9 bar)
Average Permeated Flow
Average Permeated Flow
2400 gpd (9.1 m³/d)
2600 gpd (9.84 m³/d)
Stable Rejection Rate
Stable Rejection Rate
99.5%
98%
Active Membrane Area
Active Membrane Area
90 ft² (8.4m²)
90 ft² (8.4 m²)
Max Feedwater Temperature
Max Feedwater Temperature
113 °F (45°C)
113 °F (45°C)
Testing Pressure
Testing Pressure
225 psi (1.55 MPa) (15.5 bar)
100 psi (0.69 MPa) (6.9 bar)
Temperature of Testing Solution
Temperature of Testing Solution
77 °F (25°C)
77 °F (25°C)
Concentration of Testing Solution
Concentration of Testing Solution
2000 ppm
500 ppm
pH Value of Testing Solution
pH Value of Testing Solution
7.5
7.5
Recovery Rate of Single Membrane Element
Recovery Rate of Single Membrane Element
15%
15%
Max Pressure
Max Pressure
600 psi (4.14 MPa) (41.4 bar)
600 psi (4.14 MPa) ( 41.4 bar)
Max Feedwater Flow
Max Feedwater Flow
16 gpm (3.6 m³/hr)
16 gpm (3.6 m³/hr)
Max Feedwater SDI
Max Feedwater SDI
5
5
Single Membrane Max Pressure Drop
Single Membrane Max Pressure Drop
15 psi (0.1 MPa) (1.03 bar)
15 psi (0.1 MPa) (41.4 bar)
Residual Chlorine Concentration of Feedwater
Residual Chlorine Concentration of Feedwater
<0.1 ppm
<0.1 ppm
pH Range of Feedwater During Continuous Operation
pH Range of Feedwater During Continuous Operation
3~10
3~10
pH Range of Feedwater During Chemical Cleaning
pH Range of Feedwater During Chemical Cleaning
2~12
2~12
Dimensions
Dimensions
40" x 3.9"
40" x 3.9"

Support Materials

Hydronix BW-4040 Hydron Commercial Membranes Data Sheet

Hydronix Hydron Membrane Technology Catalog
