Walrus  |  SKU: 22-9514-WA-HQ800H

Electronic Control Pump (HQ Series, Walrus)

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The HQ series pumps are designed for water supply and pressure boosting in residential, commercial, and light industrial applications where low or inadequate water pressure exists. It is suitable for boosting pressure from underground or surface water supplies.


Technical Details:

  • Power: 60Hz, ¼ - 1 HP
  • Head: Up to 64 psi
  • Flow: Up to 31.7 GPM
  • Outlet: 1"
  • Inlet: 1"


Suitable Liquids:
Potable water or other clean and non-corrosive liquids.


Operating Conditions:

  • Ambient temperature: Max. +104 ℉ (40℃ )
  • Liquid temperature: + 39 ℉ (4℃ ) ~ +104 ℉ (40℃ )
  • System pressure: Max. 120 PSI
  • Relative humidity: Max. 85% (RH)

Product Code:

Other Details:

  • Provide 2 different head designs for the 1HP model:

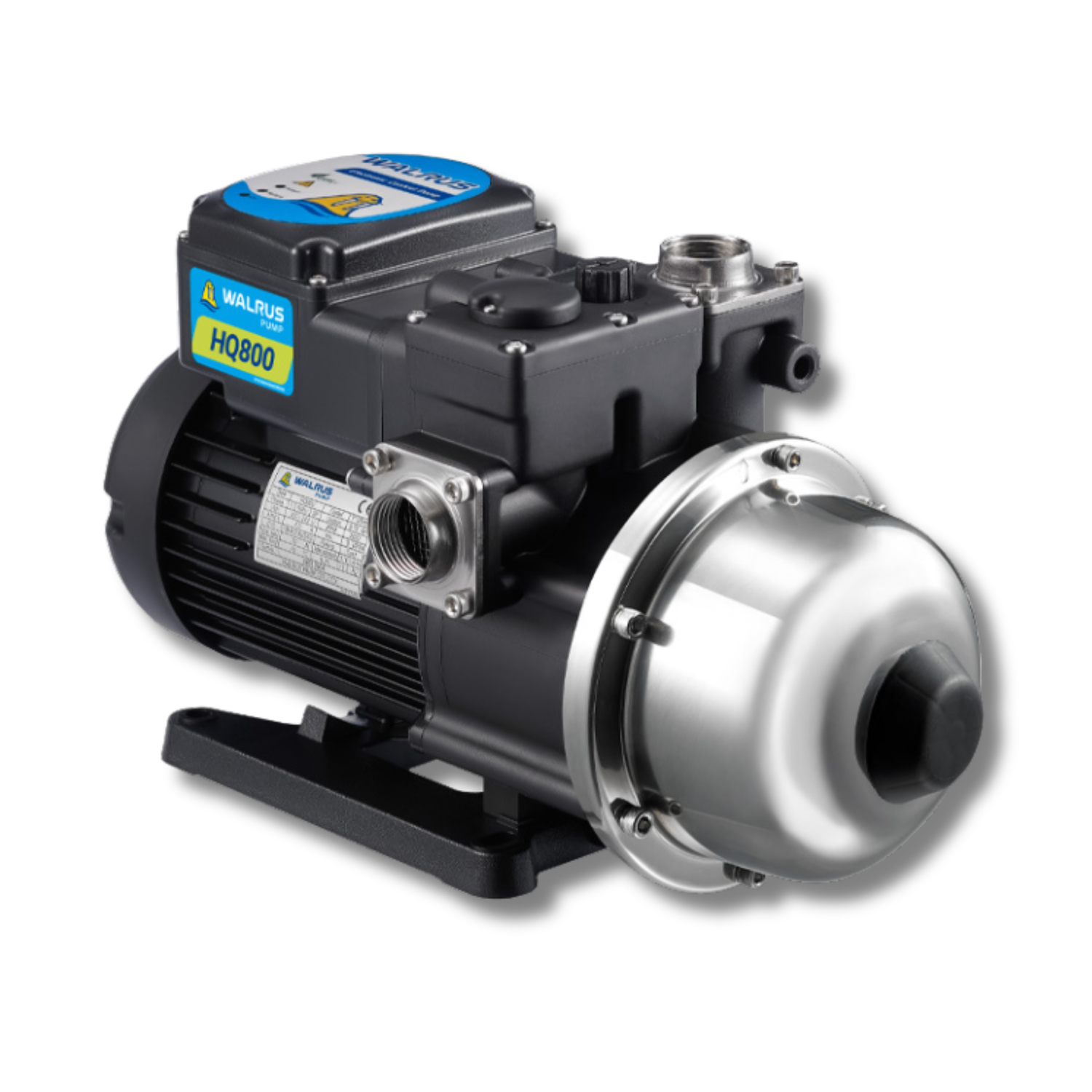

    • HQ800 with a standard head is ideal for boosting city water so that PRV is no longer required.

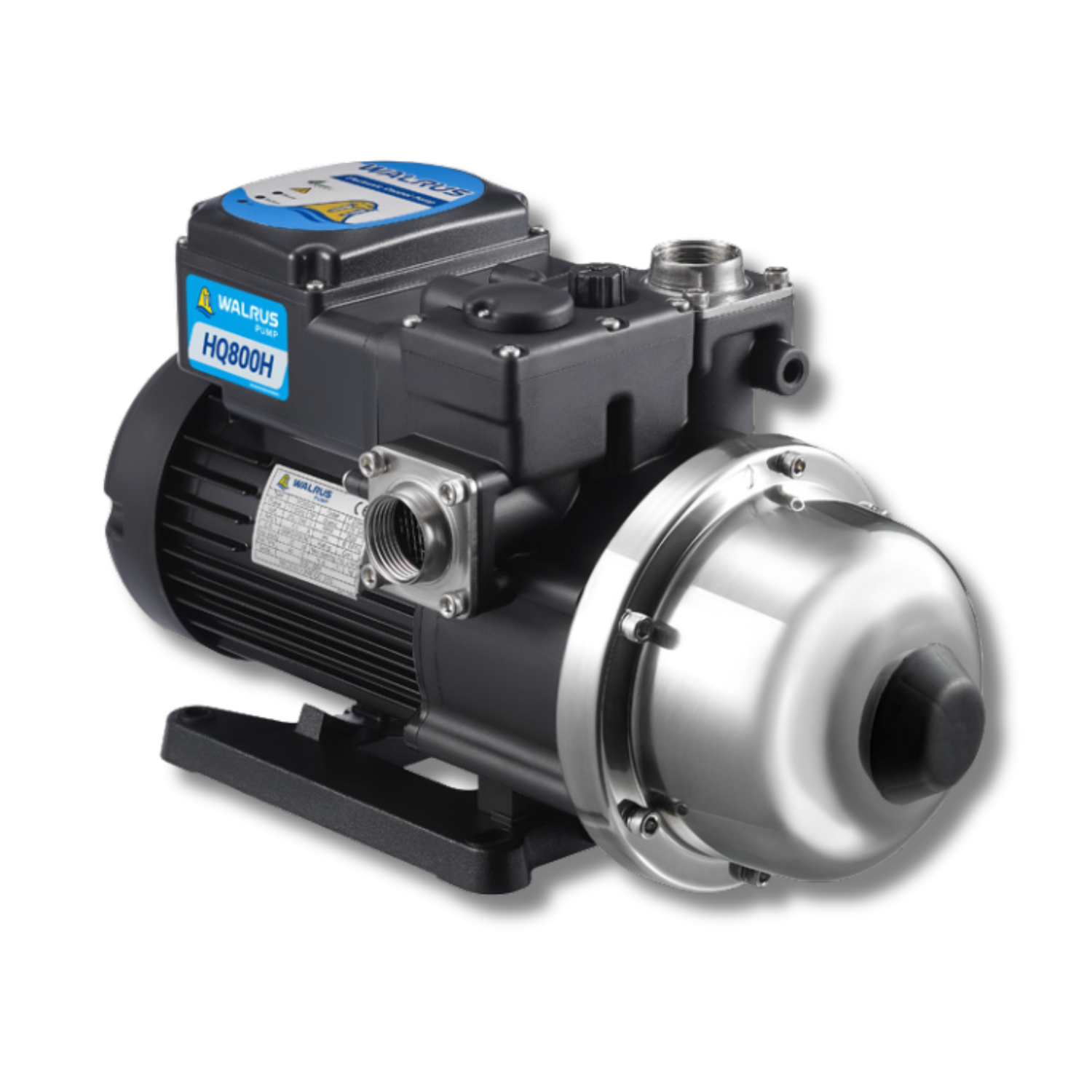

    • HQ800H with a higher head is ideal for a tank system that requires higher boost pressure.
    Model
    $893.35
    Shipping calculated at checkout.

    Features

    • All-in-one Unit

      The HQ is a complete, all-in-one unit, consisting of a pump, motor, pressure tank, and electronic controller. The built-in electronic controller ensures that the pump starts automatically when water is consumed and operates continuously until water is not required. It will also protect the pump when it is in a faulty condition.

    • Compact with Built-in Protective Functions

      Compact design and quiet operation make the HQ series suitable for many applications. The built-in protective functions will shut off the pump.

    • Stainless Steel Impellers & Aluminum Motor

      Impellers are constructed of stainless steel for greater durability. It also offers the newly designed cast aluminum motor for higher efficiency and lower amperage draw.

    Specifications

    HQ800H
    HQ800

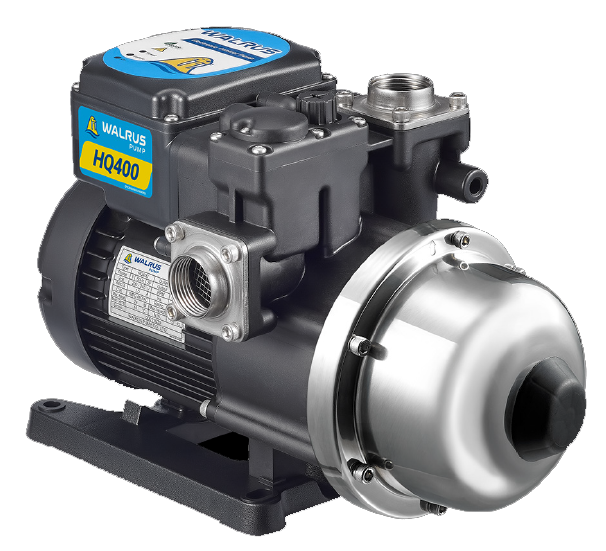

    HQ400

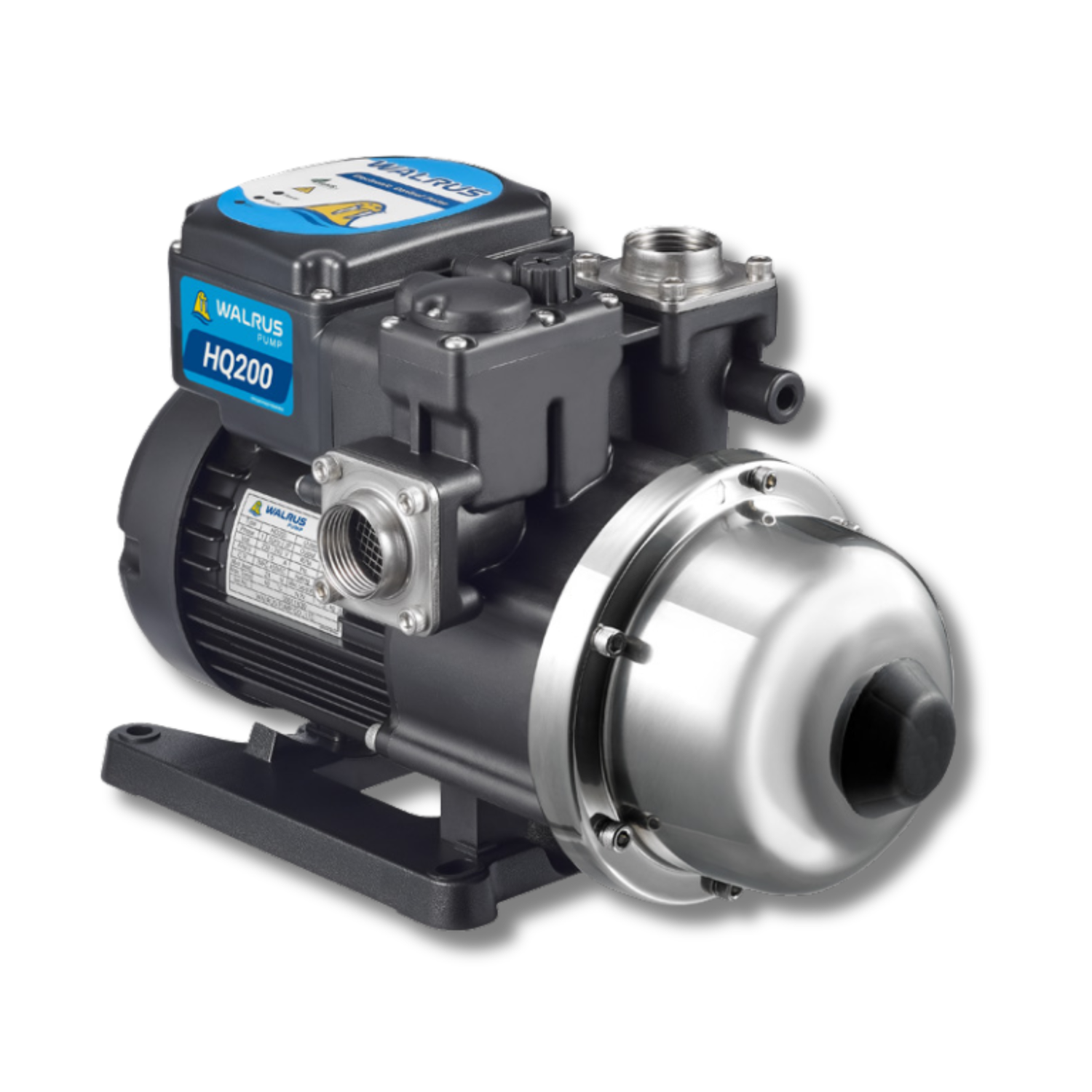

    HQ200
    Power
    Power
    1 HP
    1 HP
    1/2 HP
    1/4 HP
    Cycle (Hz)
    Cycle (Hz)
    60
    60
    60
    60
    Phase (in diameter)
    Phase (in diameter)
    1
    1
    1
    1
    Voltage (V)
    Voltage (V)
    115 or 230
    115 or 230
    115 or 230
    115 or 230
    Amp's
    Amp's
    10.0 or 5.0
    10.0 or 5.0
    6.0 or 3.0
    4.0 or 2.0
    Inlet (NPT)
    Inlet (NPT)
    1
    1
    1
    1
    Outlet (NPT)
    Outlet (NPT)
    1
    1
    1
    1
    Preset Activation Pressure (psi)
    Preset Activation Pressure (psi)
    35
    28
    25
    22
    Max Discharge Pressure (psi)
    Max Discharge Pressure (psi)
    64
    38
    37
    32
    Q Max. (GPM)
    Q Max. (GPM)
    26.4
    34.8
    20.8
    16
    Faucet
    Faucet
    10
    13
    6
    4
    N.W. (lbs)
    N.W. (lbs)
    24.9
    23.8
    18.7
    16.5
