OmniLyte ELA HD Anolyte Generator
(FOR STOCK AVAILABILITY, LEAD TIME, OR PRICING, PLEASE CALL +1 (800) 419-5707)
The OmniLyte HD-Series is a high-efficiency anolyte generator. Anolyte is produced through electrolysis and primarily contains hypochlorous acid as its active disinfectant agent.
Requiring just 4 watts of energy per liter of 1,000 ppm anolyte, this hypochlorous acid generator transforms a minimal salt brine solution and purified water into a powerful on-site cleaning and disinfecting solution.
The generators offer adjustable active chlorine levels ranging from 1,000 to 7,000 ppm. Engineered for low resource consumption, the HD-Series significantly reduces salt and energy usage while delivering superior sanitation. This makes it ideal for municipal water treatment, livestock operations, healthcare, and industrial applications where corrosion control and high sanitation levels are critical. The system’s on-demand production eliminates the need for chemical storage and transportation, lowering costs and improving safety compared to traditional chemical alternatives.
Technical Details:
- Envirolyte ELA-1000HD is designed to produce 100 LPH of HCLO at 7000 ppm with an extra setting for 3000 ppm
- 480VAC/3-phase/ 60hz / Kraft Power

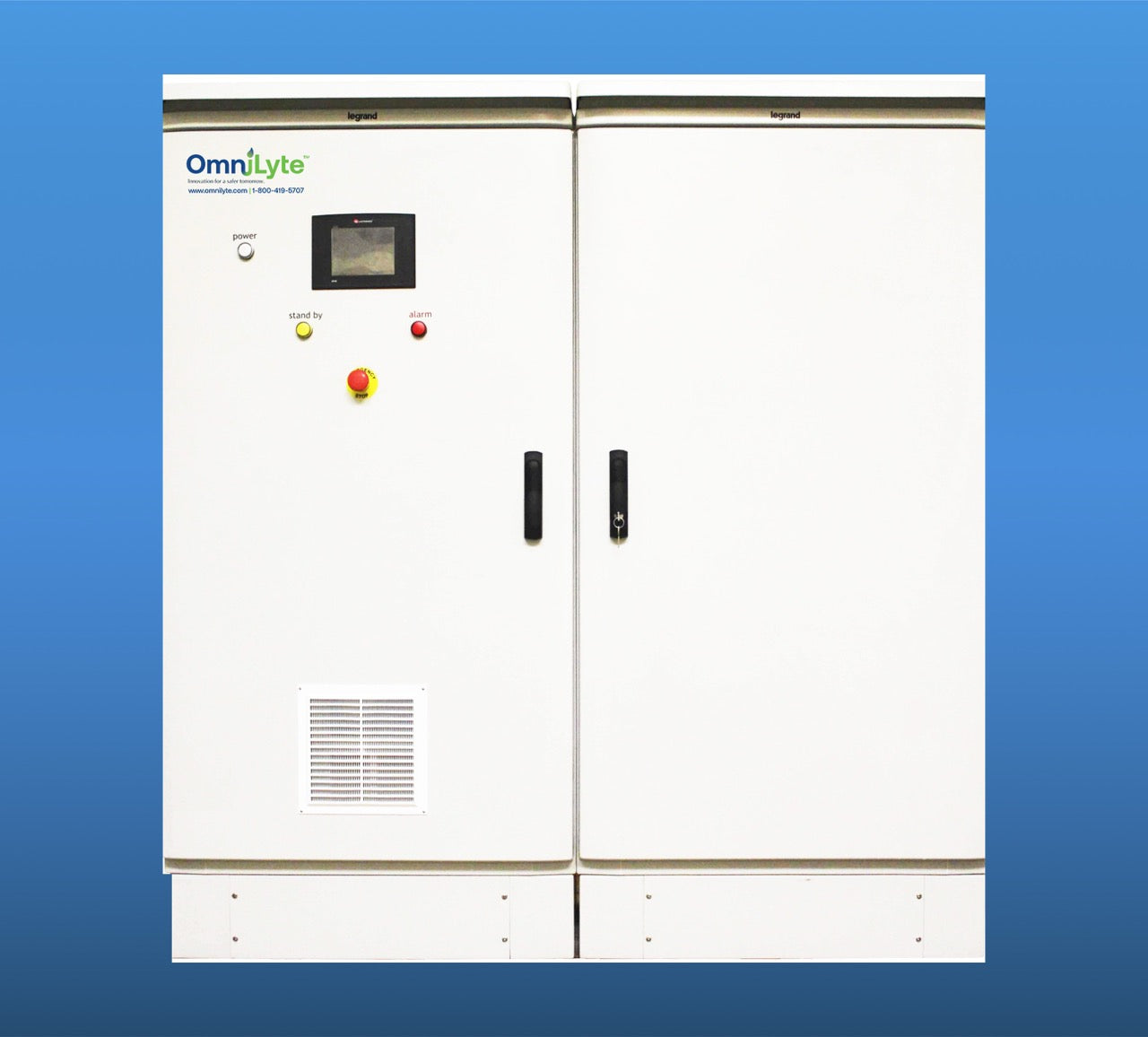

- 2-section Legrand cabinet boxes
- Separate chiller cell cooling circuit
- w/t external 4-20ma PH input pl
OmniLyte ELA HD Anolyte Generator - ELA-1000HD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
OmniLyte ELA HD Anolyte Generator
ELA HD Anolyte Generator features
The ELA HD Anolyte Generators deliver high-strength disinfection with reduced salt and energy consumption, providing an advanced water treatment solution for large-scale applications.
Adjustable High-Concentration Disinfection
Users can customize chlorine concentrations between 1,000 and 8,000 ppm, making it suitable for industries requiring powerful microbial control.
Leading Energy & Salt Efficiency
By consuming only 3.0 grams of NaCl and 4.3 watts per gram of FAC produced, the ELA HD models drastically reduce resource consumption, lowering operating costs while maintaining powerful disinfection capabilities.
High Capacity
Supports solution capacities from 30 to 500 liters per hour, with customizable FAC settings and a 4 kg/hour production rate.
Fully Automated & Remote-Accessible
Equipped with Ethernet connectivity and a user-friendly touchscreen interface, the ELA HD models are enabled for remote operation and monitoring.
Specifications
Add content here to explain a bit about the range of products on offer and which ones may be most suitable for your customers.
Disinfecting Solutions for Many Industries
-
Municipal Water Treatment
Provides high-strength disinfection for large-scale drinking water and wastewater treatment facilities. With customizable chlorine concentrations, municipalities can tailor disinfection processes to meet strict regulatory standards.
-
Agriculture & Livestock
Provides powerful anolyte solutions for disinfecting water supplies, sanitizing equipment, and preventing microbial contamination, ensuring healthier livestock and higher crop yields.
-
Food & Beverage Processing
The ELA HD series delivers customizable, high-FAC anolyte solutions that effectively kill bacteria and viruses on food contact surfaces, production lines, and storage areas, ensuring safe, contamination-free environments.
Features of ECA technology
-
Maximum Disinfection

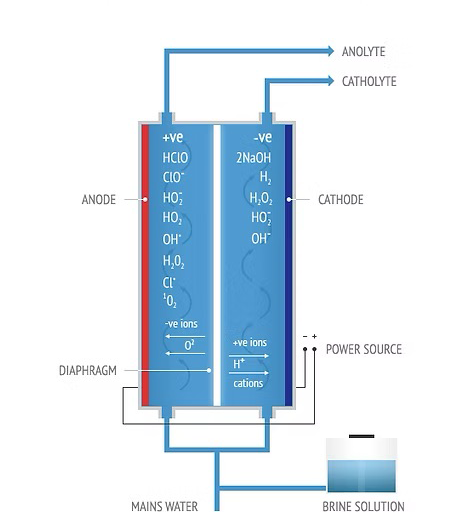

An advanced electrolysis process converts chloride ions into hypochlorous acid (HOCl) and sodium hypochlorite (NaOCl). This highly effective solution neutralizes bacteria and viruses. The adjustable chlorine concentration ensures precise sanitation for different applications.
-
Low Energy & Cost-Efficient
These hypochlorous acid generators optimize salt and energy consumption, requiring just 3.0 grams of salt and 4.3 watts of power per gram of FAC produced. This reduces operational costs while maintaining high-level sanitation, making it an ideal alternative to bulk chemicals.
-
Customizable pH Control
The system offers precise pH control (4.0 – 7.5), allowing users to fine-tune the solution for specific industry needs, such as food safety compliance, municipal water systems, or industrial sanitation.
Frequently Asked Questions
What active chlorine concentrations can the ELA-HD Series achieve?
What active chlorine concentrations can the ELA-HD Series achieve?
The ELA-HD Series can produce anolyte with adjustable active chlorine concentrations ranging from 1,000 to 7,000 ppm, providing flexibility for various disinfection needs.
How does the ELA-HD Series ensure efficient production?
How does the ELA-HD Series ensure efficient production?
Designed with a single diaphragm round cell electrolyzer, the ELA-HD Series efficiently generates on-site cleaning and disinfecting solutions using approximately 0.3% salt brine, purified water, and 4 watts of energy to produce 1 liter of 1,000 ppm anolyte.
What industries benefit most from the ELA-HD Series?
What industries benefit most from the ELA-HD Series?
Industries such as municipal water treatment, livestock management, healthcare, and various commercial sectors benefit from the ELA-HD Series due to its high sanitation standards and corrosion control capabilities.
What is hypochlorous acid, and why is it effective as a disinfectant?
What is hypochlorous acid, and why is it effective as a disinfectant?
Hypochlorous acid (HOCl) is a potent disinfectant produced in the anolyte solution during the ECA process. It is highly effective against a broad spectrum of pathogens, including bacteria, viruses, and fungi, due to its strong oxidative properties.
How does the ELA-HD Series differ from standard hypochlorous acid generators?
How does the ELA-HD Series differ from standard hypochlorous acid generators?
The ELA-HD Series utilizes a patented diaphragm electrolyzer method, allowing for precise control of active chlorine concentrations without the need for external circulation circuits or additional components.
What are the environmental benefits of using hypochlorous acid generated by the ELA-HD Series?
What are the environmental benefits of using hypochlorous acid generated by the ELA-HD Series?
Hypochlorous acid is non-toxic, biodegradable, and does not produce harmful residues, making it an environmentally friendly alternative to traditional chemical disinfectants.
