Brand:   Sensorex  |  SKU: TX10

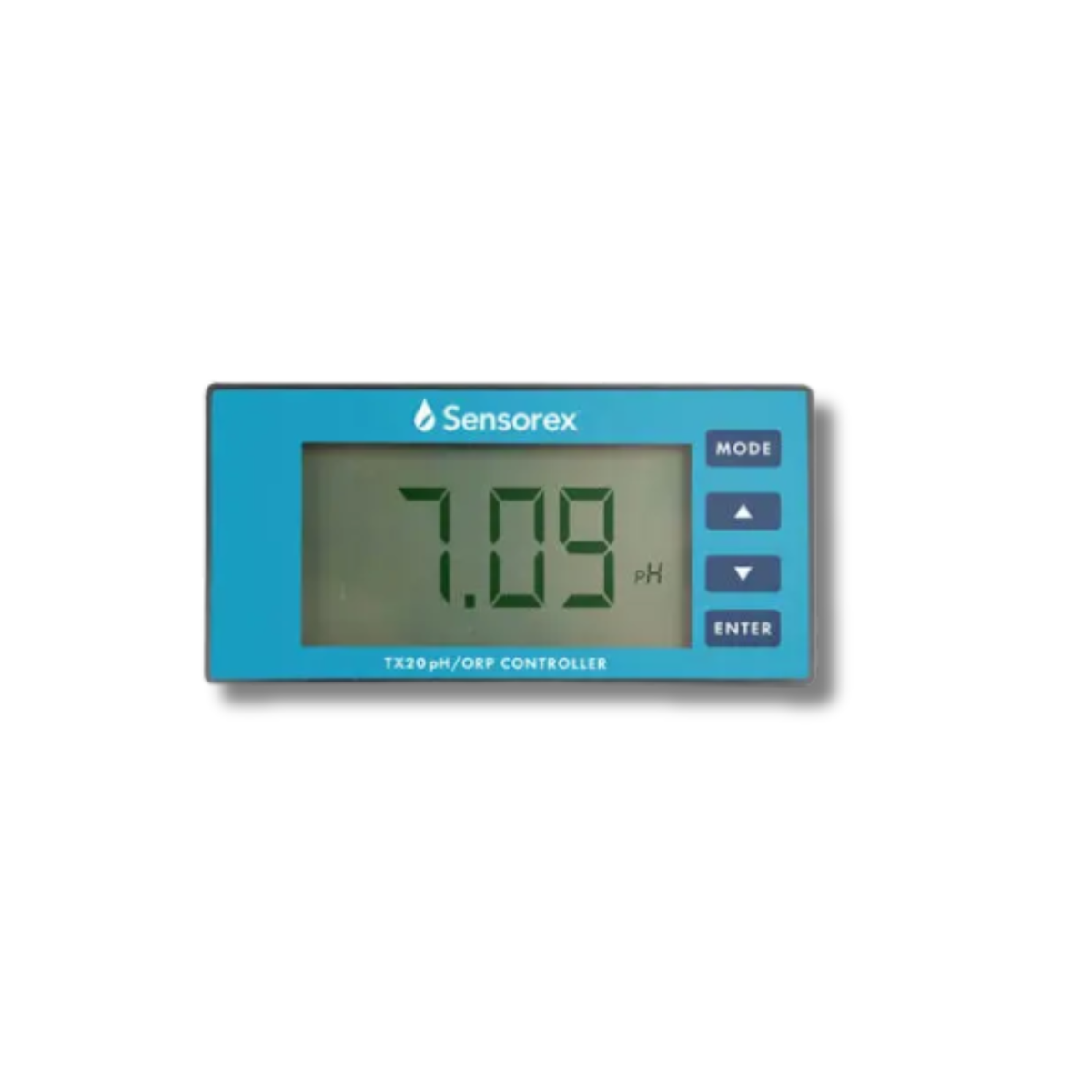

Sensorex TX Series pH/ORP Transmitter/Controller

(FOR STOCK AVAILABILITY OR LEAD TIME, PLEASE CALL +1 (800) 419-5707)

The Sensorex TX Series pH/ORP Transmitter/Controller provide continuous pH and oxidation-reduction potential monitoring for water treatment and industrial process applications. Designed for use with compatible Sensorex pH/ORP electrodes, the series offers model-dependent features including temperature compensation, LCD measurement displays, and sensor calibration functions. Selected controller models add programmable alarm and control relays for automated process control, while enclosure ratings, power requirements, and mounting options vary by model to suit different installation needs.

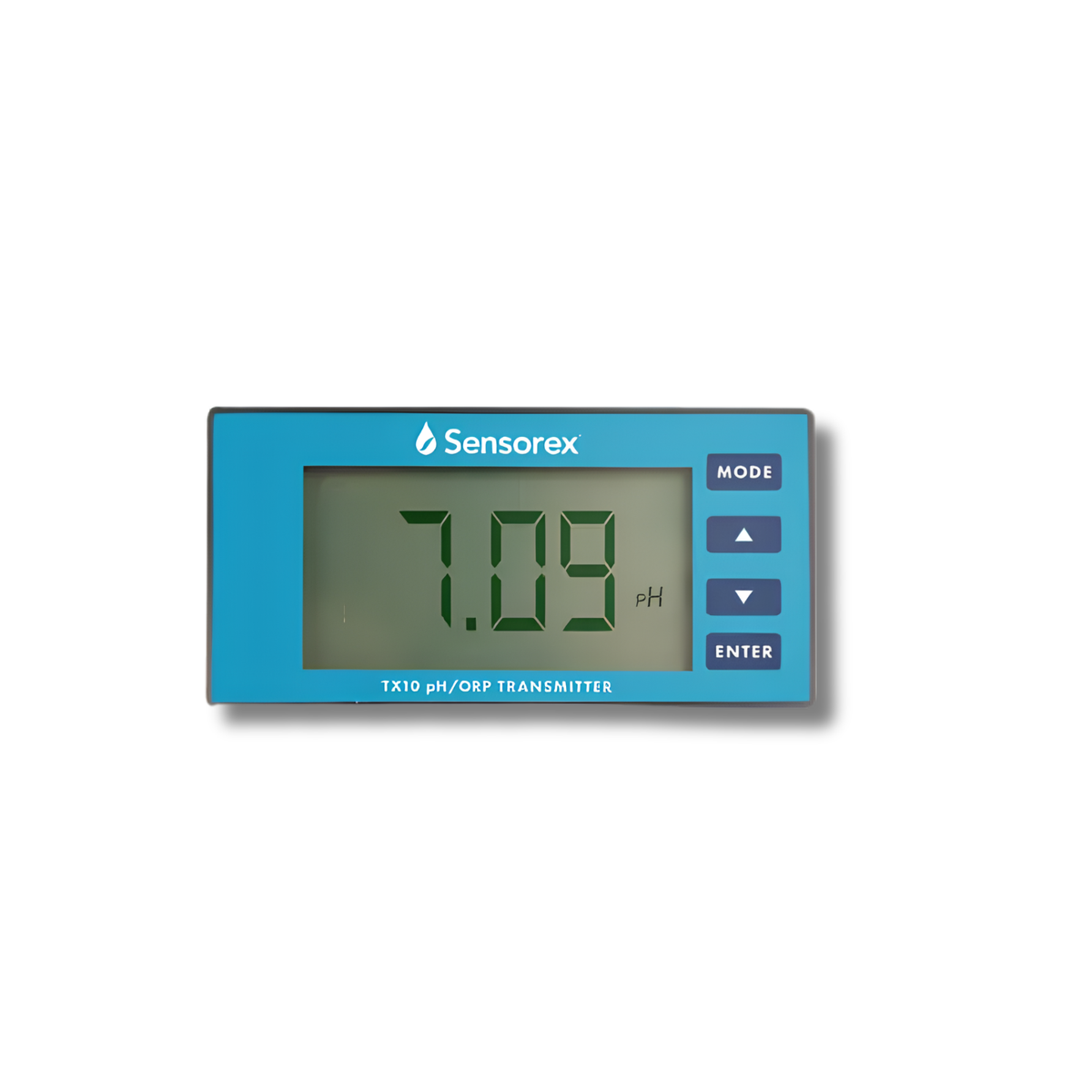

TX10 Parameters & Applications
Controllers & Transmitters

ORP

pH

Stock Item

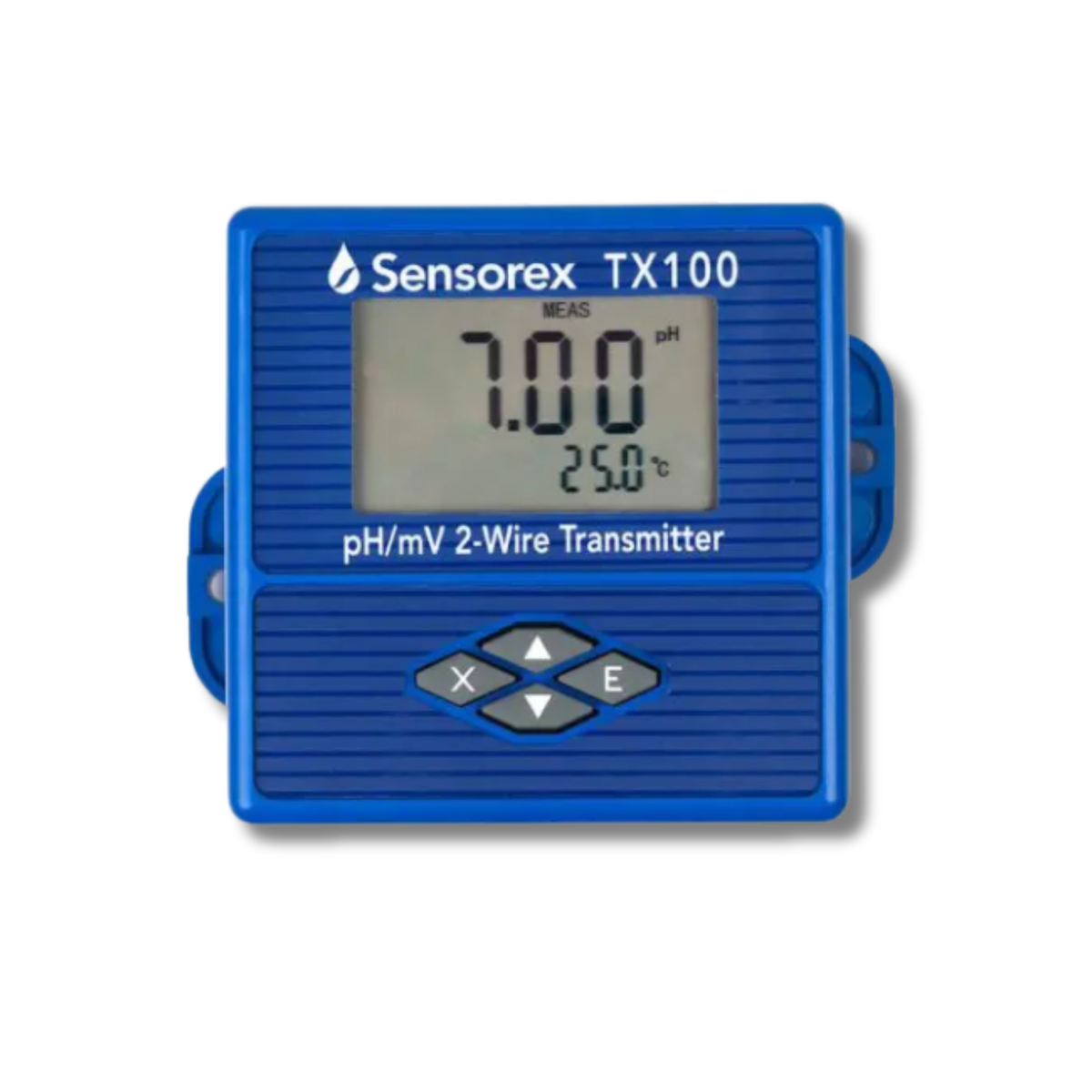

TX100 Parameters & Applications
Controllers & Transmitters

Hydroponics & Agriculture

Industrial Water and Wastewater Treatment

ORP

pH

Stock Item



TX20 Parameters & Applications
Controllers & Transmitters

ORP

pH

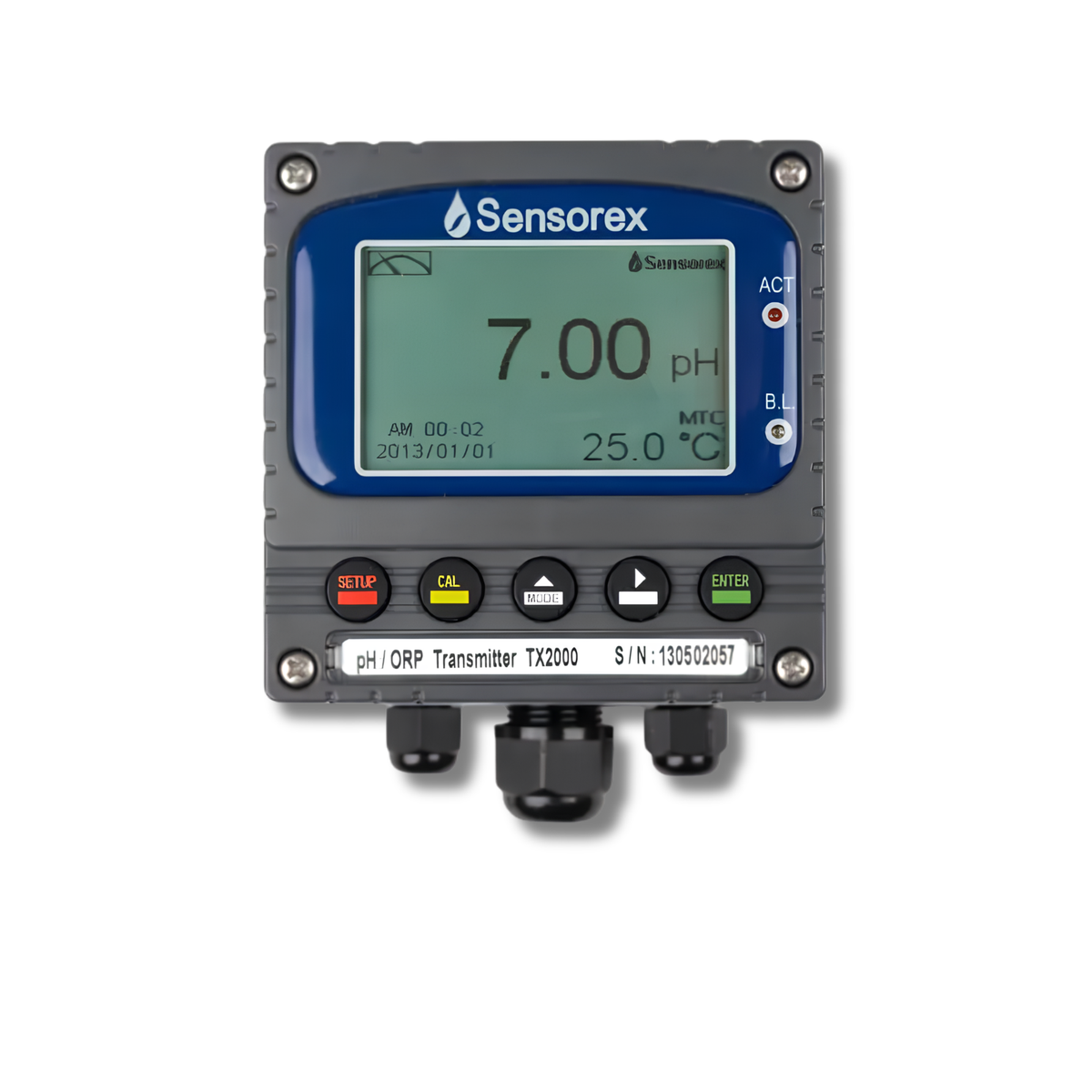

TX2000 & TX2000RS Parameters & Applications
Controllers & Transmitters

Data Centers

Hydroponics & Agriculture

ORP

pH

Series
$760.00

✓ This product qualifies for Free Shipping

Have a Question?

Delivery and Shipping

Orders with a total value of $100 or more qualify for standard free shipping.

Overnight shipping may be available depending on the delivery location. Additional charges may apply.

For additional information, please refer to our Shipping Policy.

Specifications

TX10
TX100
TX20
TX2000
TX2000RS
Measurement Range
Measurement Range
pH: -2.00 to 16.00pH, 0.01 pH resolution, +/- 0.1% accuracy
ORP/mV: -1999mV to 1999mV, 1mV resolution, +/- 0.1% accuracy
pH: 0.00 to 14.00 pH, 0.01 pH resolution, ± 0.01 accuracy
ORP/mV: - 1999mV to 1999mV, 1mV resolution, ± 2mV accuracy
Temperature: -20°C (-4°F) to 110°C (230°F), 0.1° C/F resolution
pH: -2.00 to 16.00pH, 0.01 pH resolution, +/- 0.1% accuracy
pH: -2.00 to 16.00pH, 0.01 pH resolution
ORP/mV: -1999mV to 1999mV, 1mV resolution, +/- 2mV accuracy
Temperature : -20 °C to 110 °C , 0.1 °C resolution, 0.2 °C accuracy
pH: -2.00 to 16.00pH, 0.01 pH resolution
ORP/mV: -1999mV to 1999mV, 1mV resolution, +/- 2mV accuracy
Temperature : -20 °C to 110 °C , 0.1 °C resolution, 0.2 °C accuracy
Enclosure
Enclosure
1/8 DIN
NEMA 4X IP65, ABS case with push-button control pad
1/8 DIN
NEMA 4X IP65, with push-button control pad
NEMA 4X IP65, with push-button control pad
Power Requirements
Power Requirements
100 - 240 VAC, max 500 ohm load
12 - 24 VDC, max 600 Ohm load
100-240 VAC, max 500 ohm load
100 - 240 VAC +/- 10%, 9W max., 50/60 Hz
100 - 240 VAC +/- 10%, 9W max., 50/60 Hz
Dimensions
Dimensions
3.78" x 3.54" x 1.89"
3.9" x 3.9" x 2.9"
3.78" x 3.54" x 1.89"
3.78" x 3.78" x 5.20"
3.78" x 3.78" x 5.20"
Weight
Weight
290 g
1 lb (0.45 kg)
290 g
1.10 lb ( 0.50 kg)
1.10 lb ( 0.50 kg)

Support Materials

Sensorex TX10 & TX20 Transmitter Data Sheet

Sensorex TX100 Transmitter Data Sheet

Sensorex TX2000 & TX2000RS Transmitter Data Sheet

Sensorex TX10 Transmitter Manual

Sensorex TX20 Transmitter Manual

Sensorex TX100 Transmitter Manual
